2002 Jeep TJ (CANADA) L4-2.5LFACTORY OEM SERVICE PROCEDURE
Ignition Cable: Service and Repair
SPARK PLUG CABLE
REMOVAL
CAUTION: When disconnecting a high voltage cable from a spark plug or from the distributor cap, twist the rubber boot slightly (112 turn) to break it loose.
1. Grasp the boot (not the cable) and pull it off with a steady, even force.
INSTALLATION
1. Push the cable firmly onto the sparkplug.

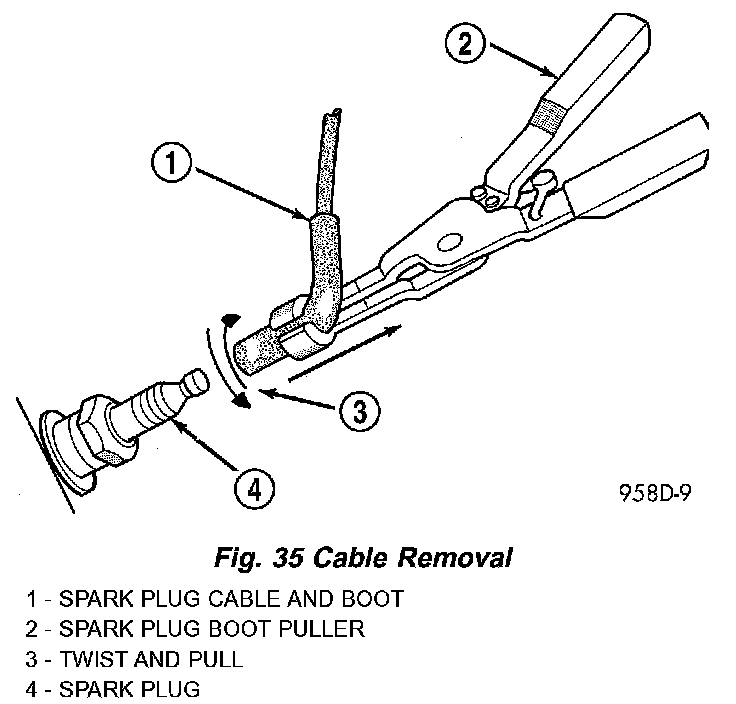

Fig.35 Cable Removal:
REMOVAL
CAUTION: When disconnecting a high voltage cable from a spark plug or from the distributor cap, twist the rubber boot slightly (112 turn) to break it loose.
1. Grasp the boot (not the cable) and pull it off with a steady, even force.
INSTALLATION
1. Push the cable firmly onto the sparkplug.
