2002 Jeep TJ (CANADA) L4-2.5LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Locations

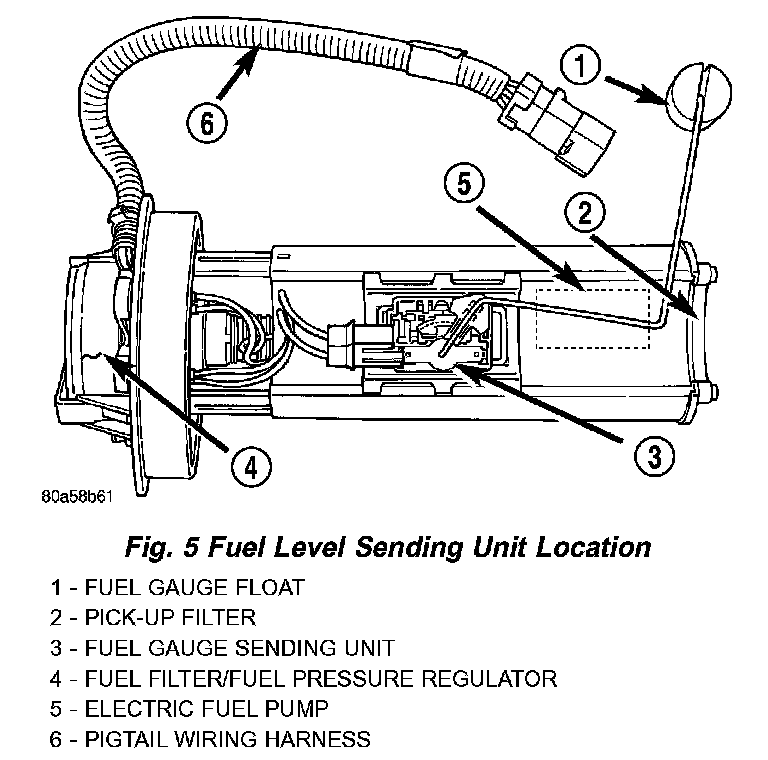

Fig.5 Fuel Level Sending Unit Location:
The fuel level sending unit (fuel level sensor) and float assembly is located on the side of fuel pump module.
