Setting Magnetic Zone Variance

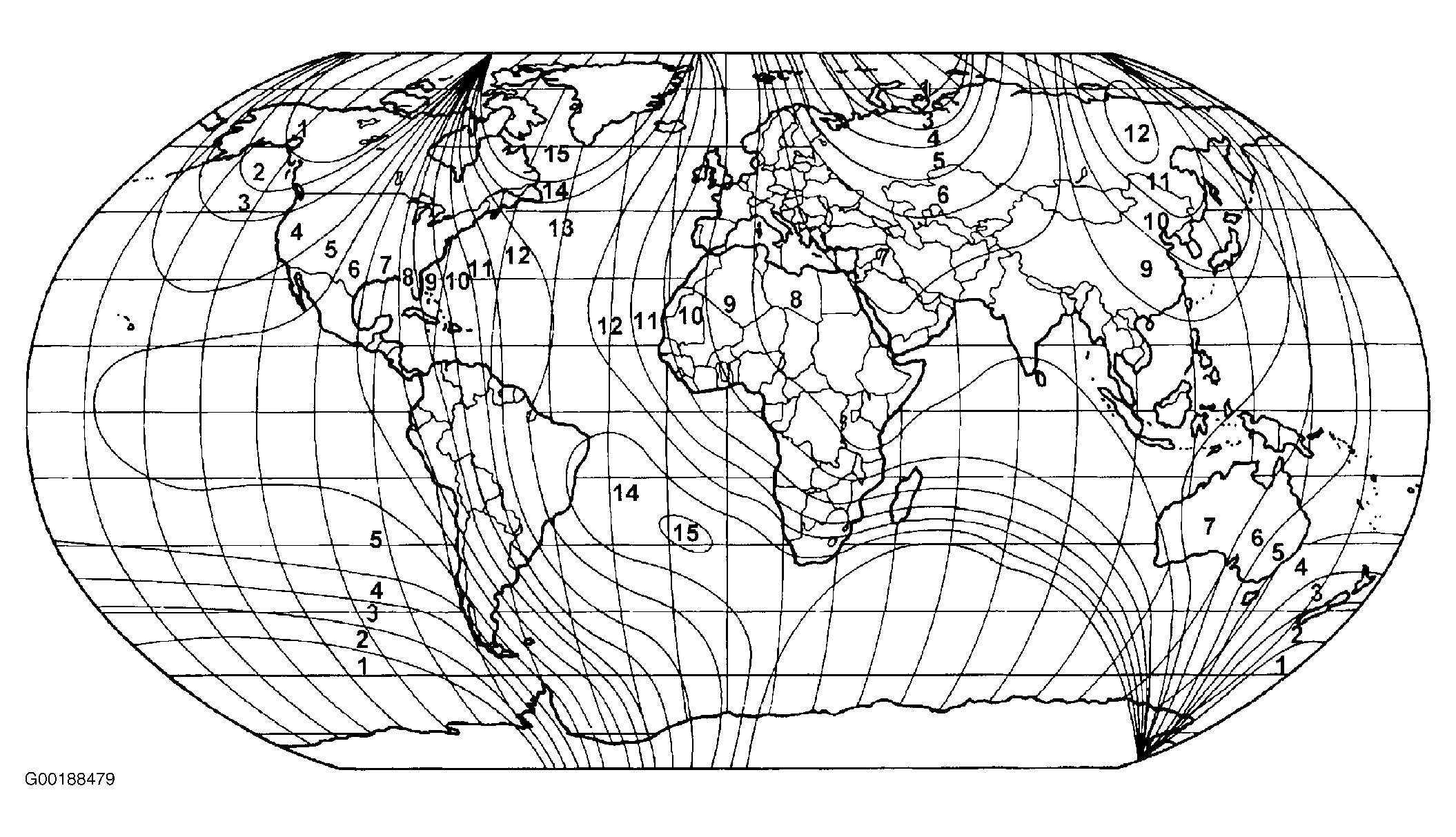

Variance is the difference between magnetic North and geographic North. For proper compass function, the correct variance zone must be set. See Fig 1 . To check or change the variance zone, the ignition switch must be in the On position and the EVIC display must not be blank. Perform the following steps.
- If the compass/temperature data is not currently being displayed, momentarily press and release the C/T button to display compass/temp information.
- Press and hold the RESET button until VARIANCE = XX is displayed. The EVIC will display the variance zone stored in memory and the word VARIANCE.
- Use the STEP button to select the proper variance zone number, 1 through 15.
- After selecting the proper zone number, momentarily press and release the RESET button. The variance zone is then stored in the memory and the EVIC returns to normal operation.
