2000 Jeep Wrangler SE, AutomaticFACTORY OEM SERVICE PROCEDURE
Connector Identification
NOTE:
For terminal identification of body control system connectors, see Fig 1
-Fig 5
. Connector terminal numbers are molded into connectors. If connector terminal identification differs from that shown in figure, use wire colors to ensure correct circuit is being tested.
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | See |
|---|---|

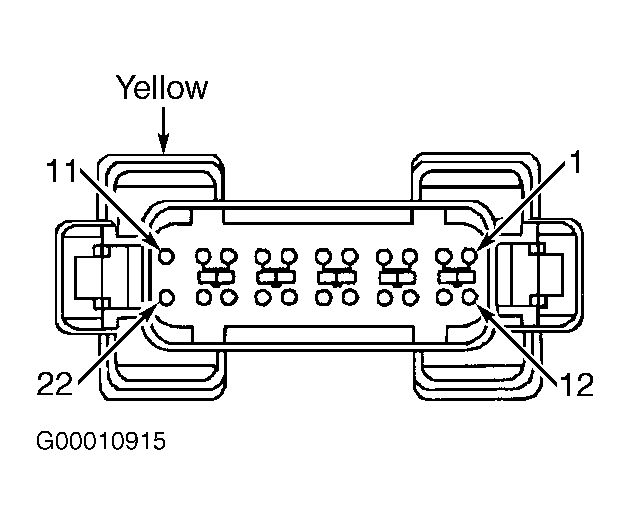

| Air Bag Control Module | Fig 1 |
| Data Link Connector | Fig 2 |
| Instrument Cluster | Fig 3 |
| Powertrain Control Module | Fig 4 |
| Sentry Key Immobilizer Module | Fig 5 |
