2000 Jeep TJ (CANADA) L6-4.0LFACTORY OEM SERVICE PROCEDURE

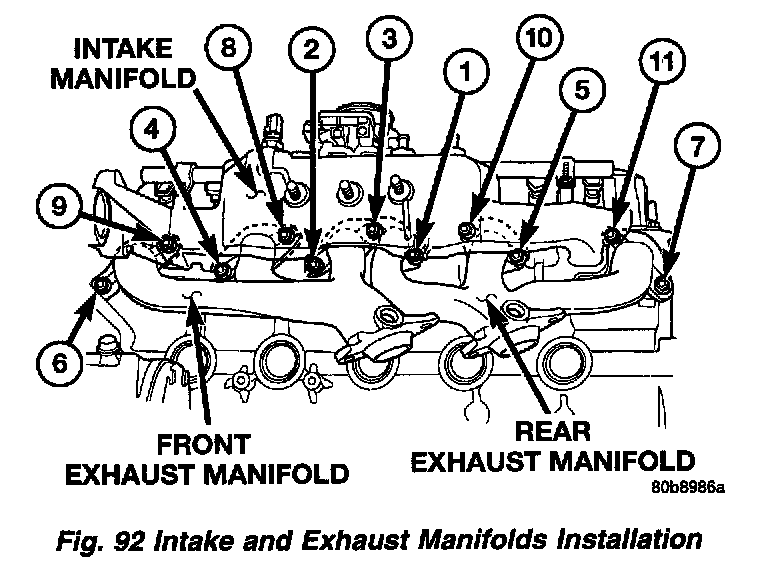

Intake Manifold
Tighten the fasteners in sequence and to the specified torque.
- Fastener Nos. 1 - 5: Tighten to 33 Nm (24 ft. lbs.) torque.
- Fastener Nos. 6 - 7: Tighten to 31 Nm (23 ft. lbs.) torque.
- Fastener Nos. 8 - 11: Tighten to 33 Nm (24 ft. lbs.) torque.
