2000 Jeep TJ (CANADA) L4-2.5LFACTORY OEM SERVICE PROCEDURE
Firing Order
DESCRIPTION
The 2.5 liter (150 CID) four cylinder engine is an inline, lightweight, overhead valve engine.
This engine is designed for unleaded fuel. The engine cylinder head has dual quench type combustion chambers that create turbulence and fast burning of the air/fuel mixture. This results in good fuel economy.

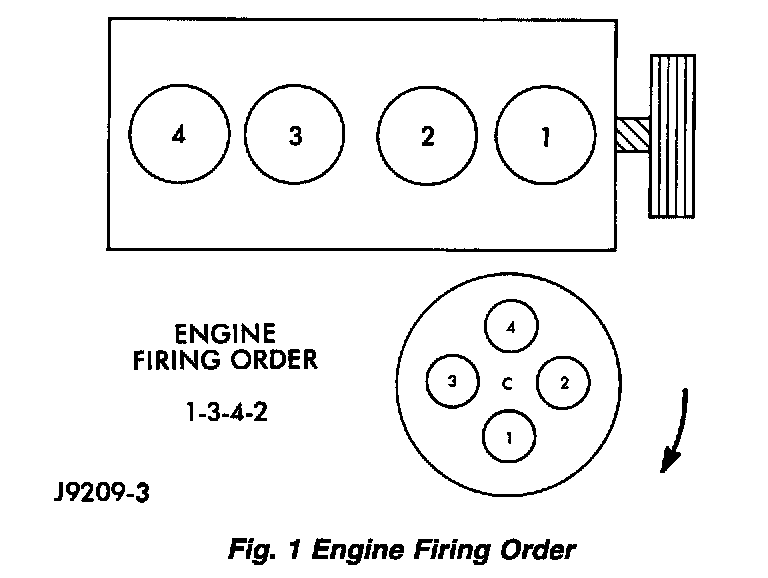

The cylinders are numbered 1 through 4 from front to rear. The firing order is 1-3-4-2 (Fig. 1).
The crankshaft rotation is clockwise, when viewed from the front of the engine. The crankshaft rotates within five main bearings and the camshaft rotates within four bearings.
