2000 Jeep TJ (CANADA) L4-2.5LFACTORY OEM SERVICE PROCEDURE

Fuel Level Sensor: Service and Repair

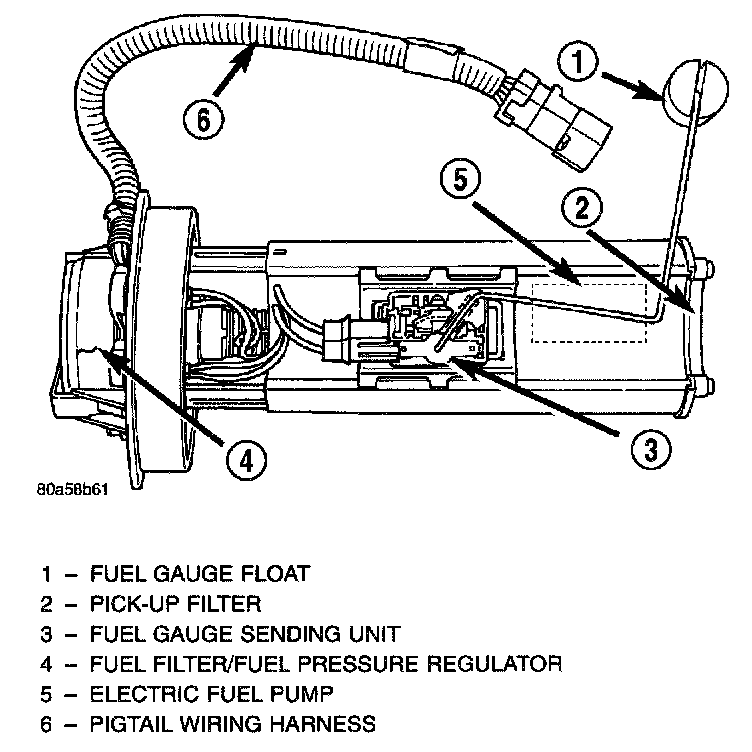

Factory service manual diagram



The fuel gauge sending unit (fuel level sensor) and float assembly is located on the side of fuel pump module. The fuel pump module is located within the fuel tank.

REMOVAL
1. Remove fuel tank. Refer to Fuel Tank Removal/ Installation.
2. Remove fuel pump module. Refer to Fuel Pump Module Removal/Installation.
3. Remove electrical wire connector at sending unit terminals.

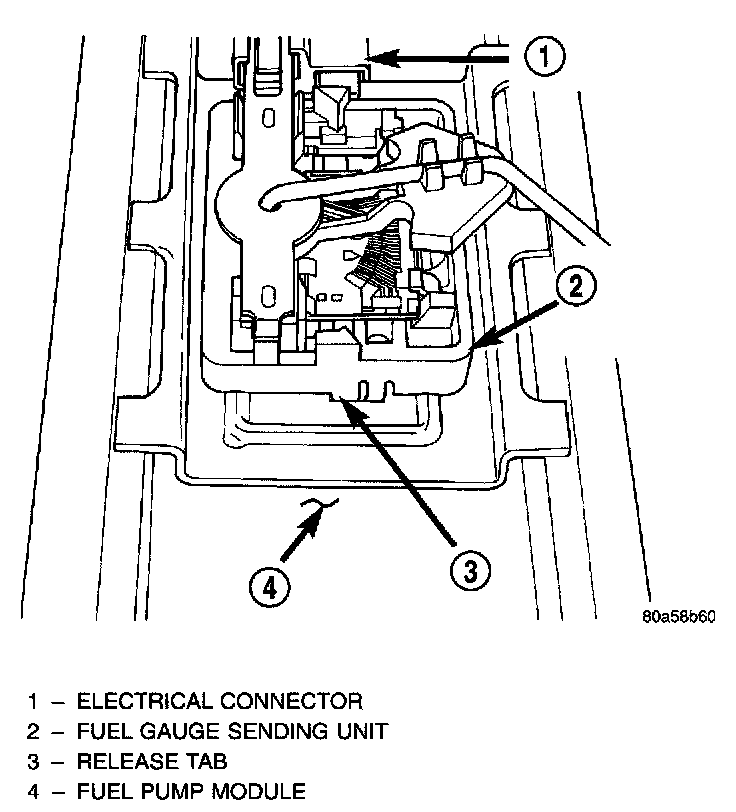

Fuel Gauge Sending Unit Release Tab:

Factory service manual diagram



4. Press on release tab to remove sending unit from pump module.

INSTALLATION
1. Position sending unit to pump module and snap into place.
2. Connect electrical connector to terminals.
3. Install fuel pump module. Refer to Fuel Pump Module Removal/Installation.
4. Install fuel tank. Refer to Fuel Tank Removal/Installation.
