2000 Jeep TJ (CANADA) L4-2.5LFACTORY OEM SERVICE PROCEDURE
Battery Temperature Sensor: Service and Repair
Battery Temperature Sensor Remove/Install:

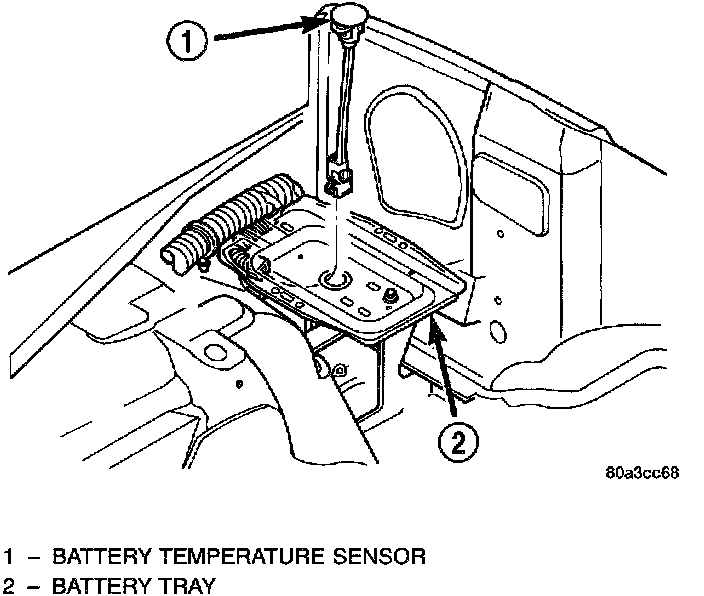

The battery temperature sensor is located under the vehicle battery and is attached to a mounting hole on battery tray.
REMOVAL
1. Remove battery. Refer to Battery for procedures.
2. Disconnect sensor pigtail harness from engine wire harness.
3. Pry sensor straight up from battery tray mounting hole.
INSTALLATION
1. Feed pigtail harness through hole in top of battery tray and press sensor into top of battery tray.
2. Connect pigtail harness.
3. Install battery. Refer to Battery for procedures.
