2000 Jeep TJ (CANADA) L4-2.5LFACTORY OEM SERVICE PROCEDURE
Power Distribution Module: Diagrams

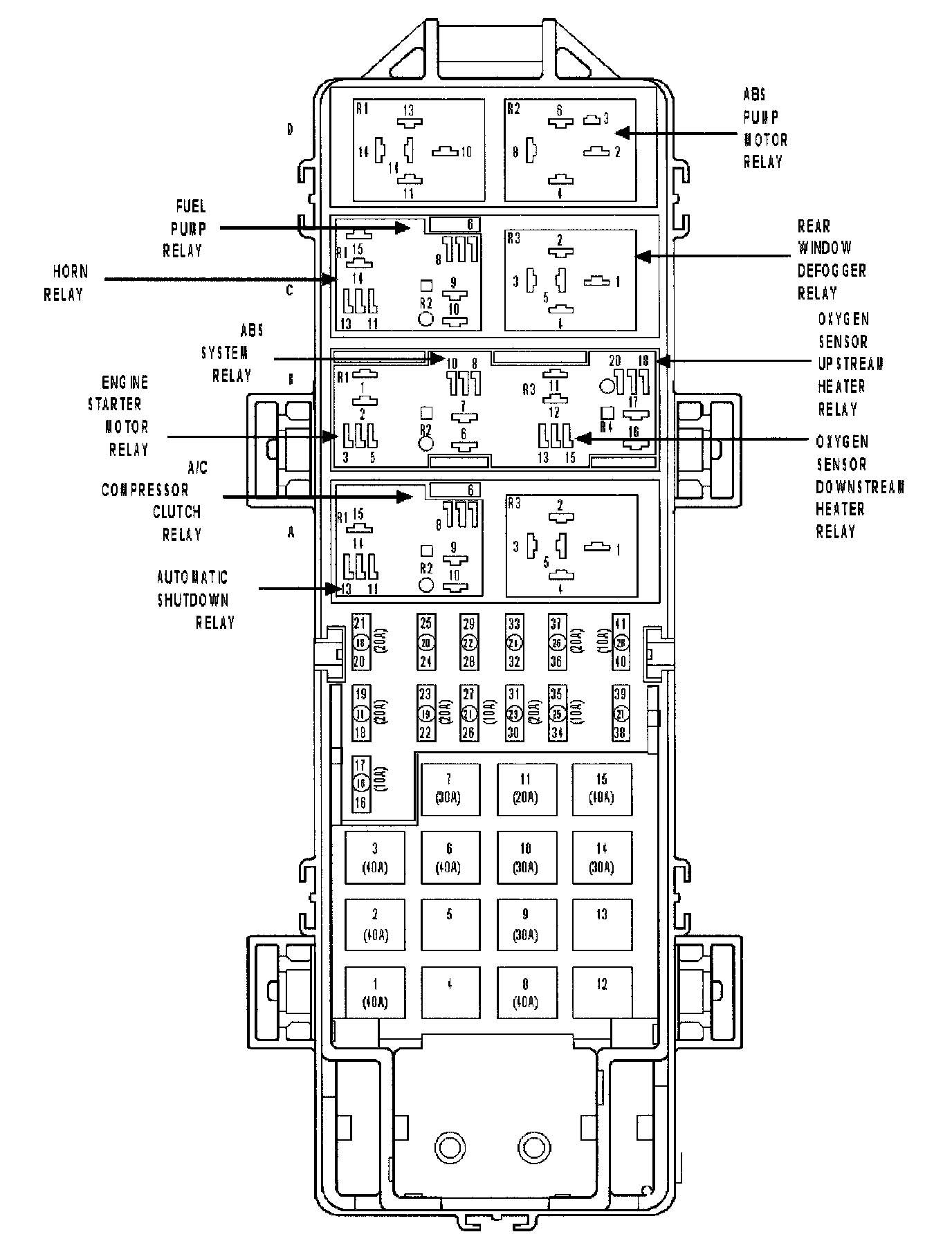

Power Distribution Center Part 1 Of 12:
Power Distribution Center

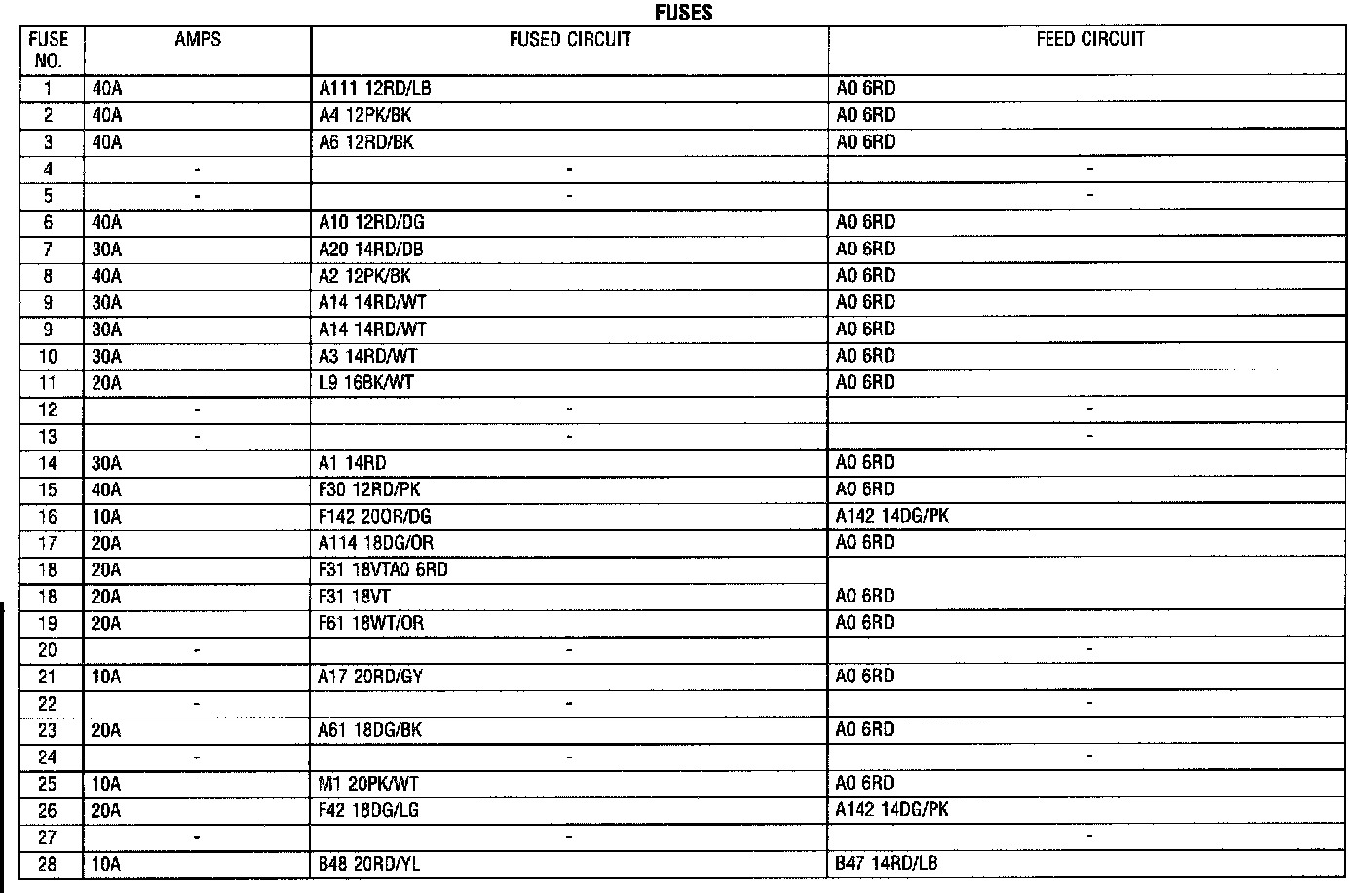

Power Distribution Center Part 2 Of 12:
Fuses

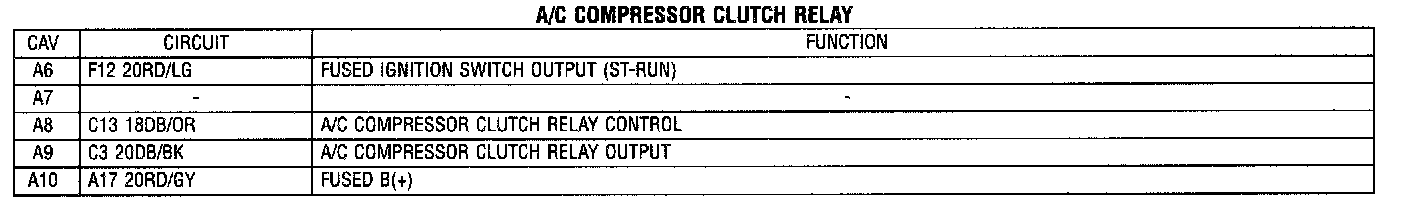

Power Distribution Center Part 3 Of 12:
A/C Compressor Relay

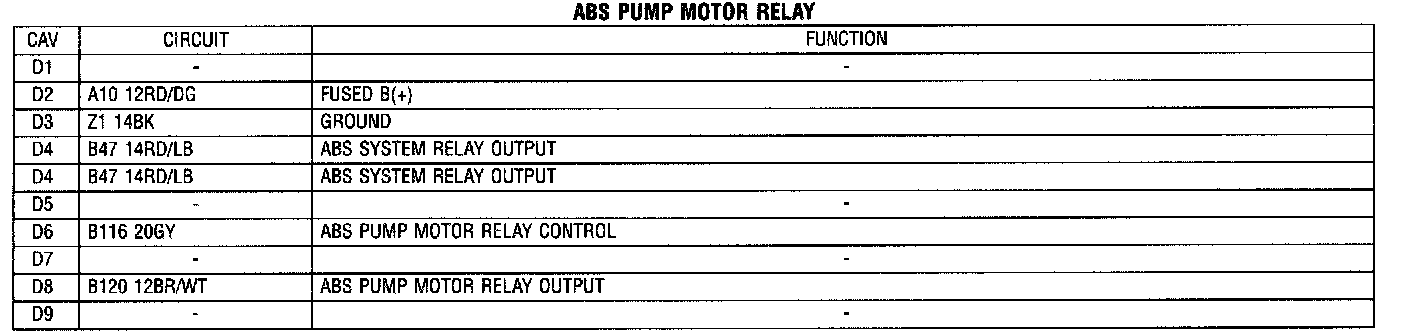

Power Distribution Center Part 4 Of 12:
ABS Pump Motor Relay
Power Distribution Center Part 5 Of 12:

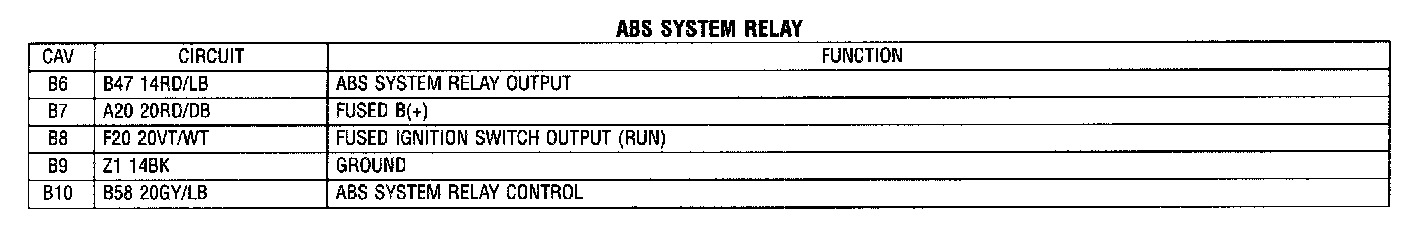

ABS System Relay
Power Distribution Center Part 6 Of 12:

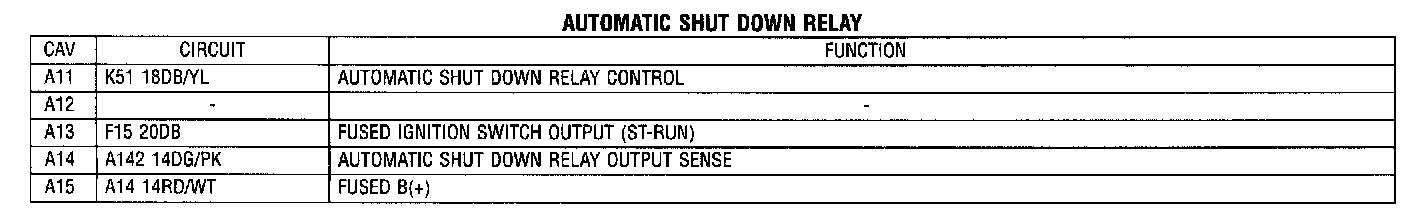

Automatic Shut Down Relay
Power Distribution Center Part 7 Of 12:

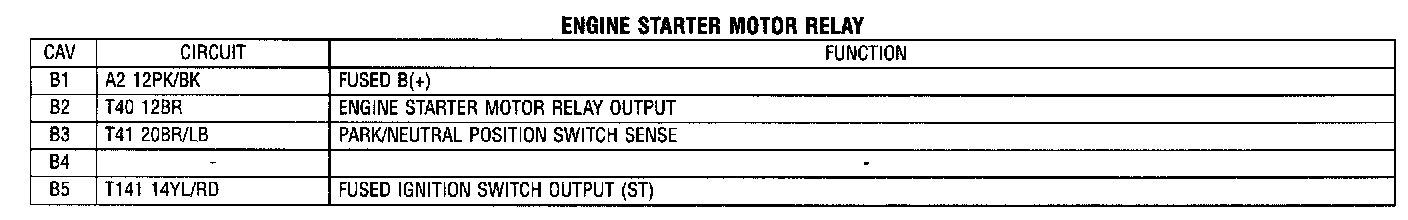

Engine Starter Motor Relay

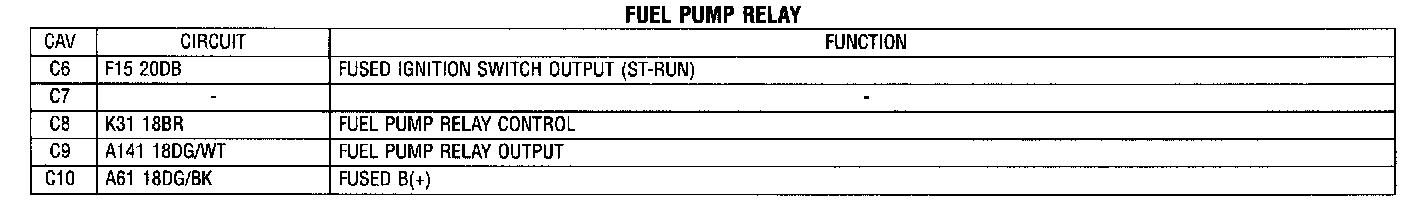

Power Distribution Center Part 8 Of 12:
Fuel Pump Relay

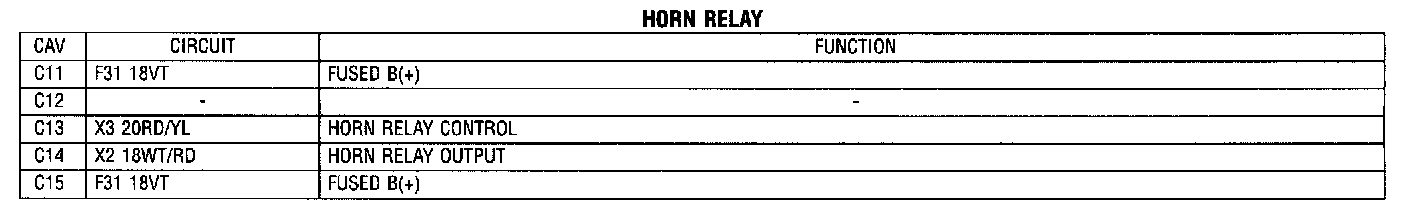

Power Distribution Center Part 9 Of 12:
Horn Relay

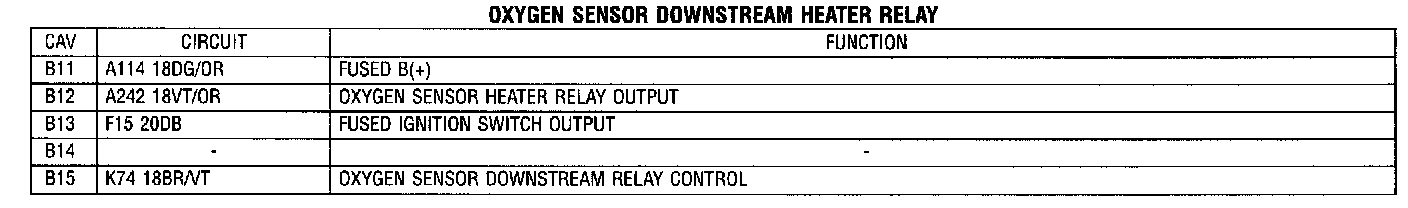

Power Distribution Center Part 10 Of 12:
Oxygen Sensor Downstream Heater Relay
Power Distribution Center Part 11 Of 12:

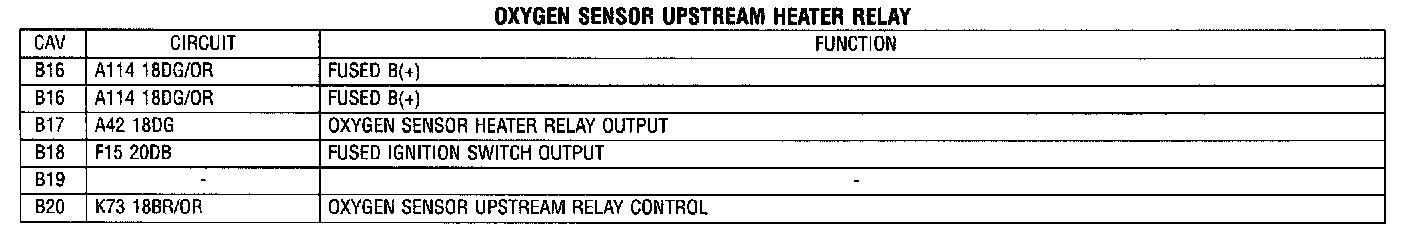

Oxygen Sensor Upstream Heater Relay

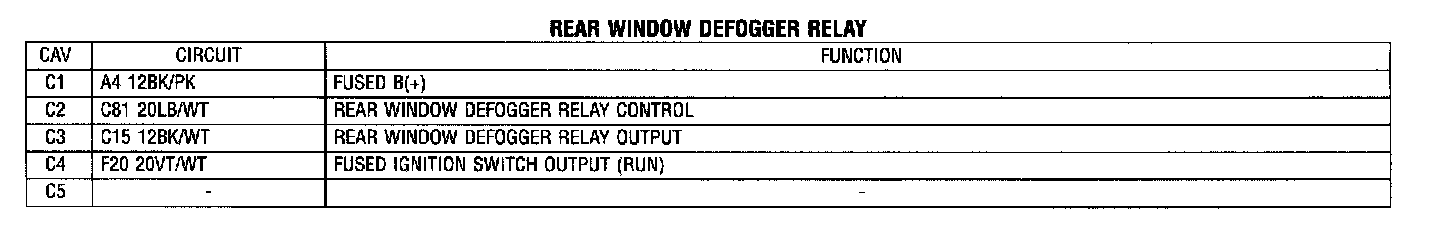

Power Distribution Center Part 12 Of 12:
Rear Window Defogger Relay
