1999 Jeep Wrangler SE, AutomaticFACTORY OEM SERVICE PROCEDURE

Connector Identification

NOTE: The following terminals are shown as viewed from harness side of connector. Only connectors with 3 or more terminals (pins) are included. For circuit identification and wiring diagram, see WRANGLER wiring diagram in WIRING DIAGRAMS article.
CONNECTOR IDENTIFICATION

Connector Illustration
Accelerator Pedal Position Sensor Fig 1
Brakelight Switch Fig 2
Camshaft Position Sensor Fig 3
Controller Anti-Lock Brakes Fig 4
Crankshaft Position Sensor Fig 5
Data Link Connector Fig 6
Engine Oil Pressure Sensor Fig 7
Fuel Pump Module Fig 8
Governor Pressure Sensor Fig 9
Idle Air Control Motor Fig 10
Leak Detection Pump Fig 11
Manifold Absolute Pressure Sensor Fig 12
Park/Neutral Position Switch Fig 13
Powertrain Control Module Fig 14
Throttle Position Sensor Fig 15
Vehicle Speed Sensor Fig 16
1/1-1/3 Heated Oxygen Sensor (Typical) Fig 17

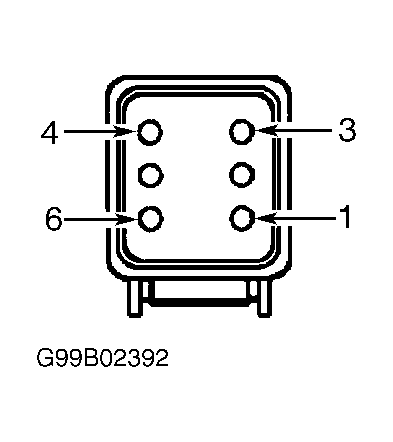

Fig 1: Accelerator Pedal Position Sensor
G99B02392Courtesy of CHRYSLER CORP.
