1999 Jeep Wrangler SE, AutomaticFACTORY OEM SERVICE PROCEDURE
Component Location
COMPONENT LOCATION
| Description | Location | |
|---|---|---|
| Cherokee | ||
| Compass/Mini-Trip Computer (CMTC) | Fig 2 | |

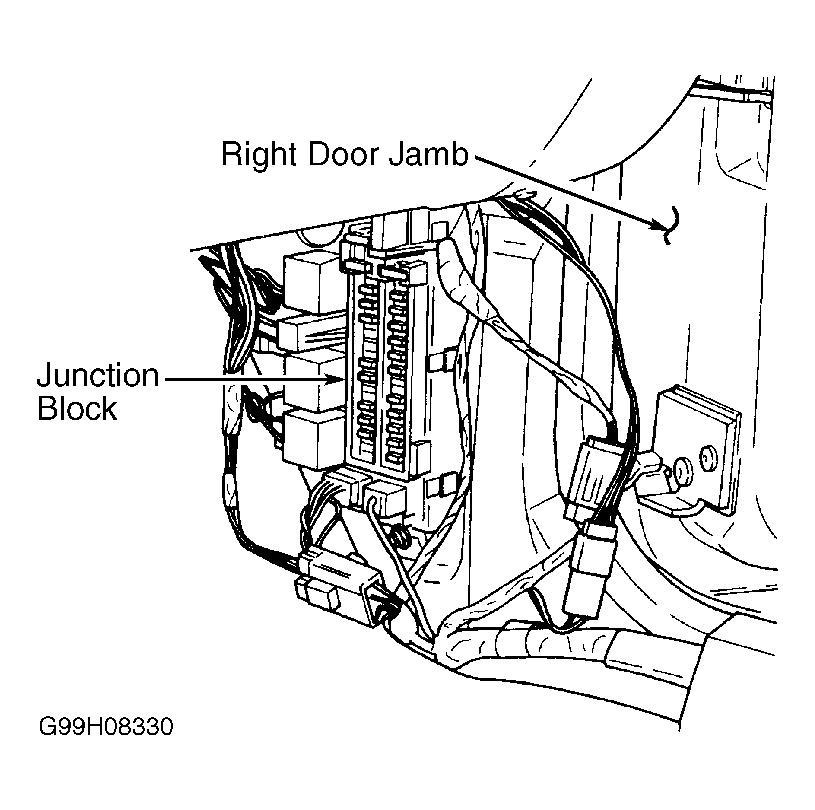

| Junction Block | Fig 4 | |
| Power Distribution Center | In Engine Compartment | |
| Powertrain Control Module (PCM) | Left Inner Fender | |
| Remote Keyless Entry (RKE) Module | Fig 2 | |
| Transmission Control Module (TCM) | Fig 6 | |
| Grand Cherokee | ||
| Airbag Control Module (ACM) | Under Center Console, Beside Parking Brake Handle | |

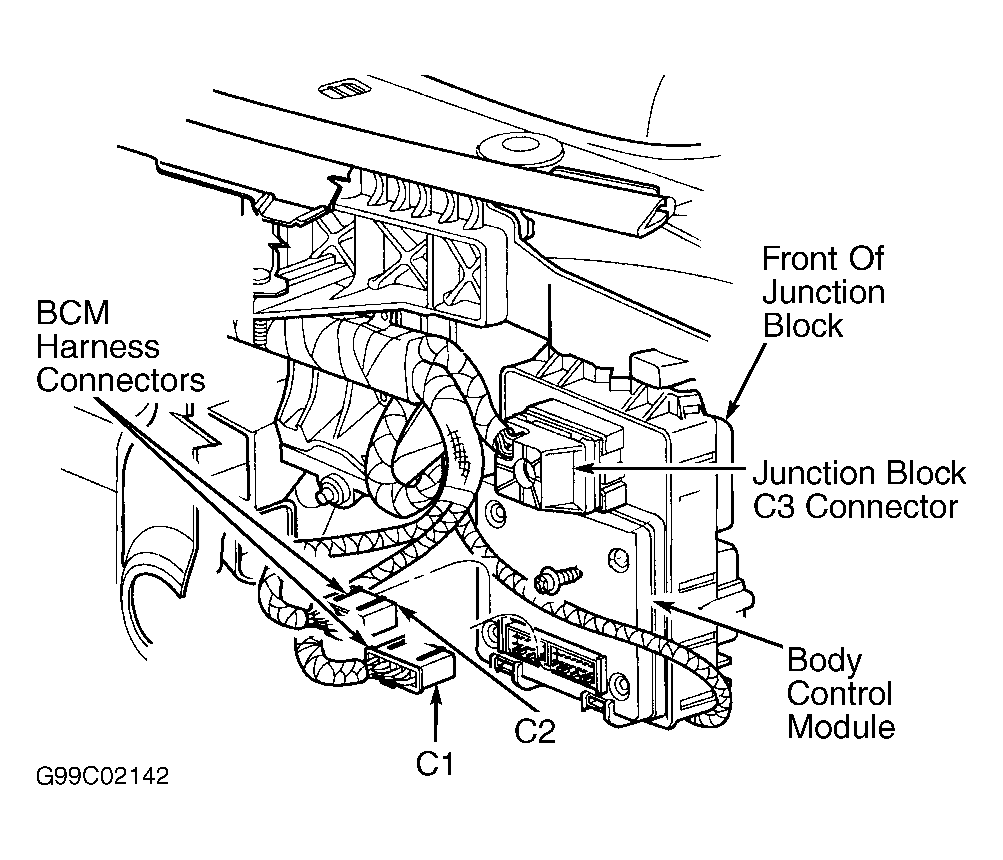

| Body Control Module (BCM) | Fig 1 | |
| Controller Anti-Lock Brake (CAB) Module | Mounted To Hydraulic Control Unit | |
| Compass/Mini-Trip Computer (CMTC) | Fig 2 | |

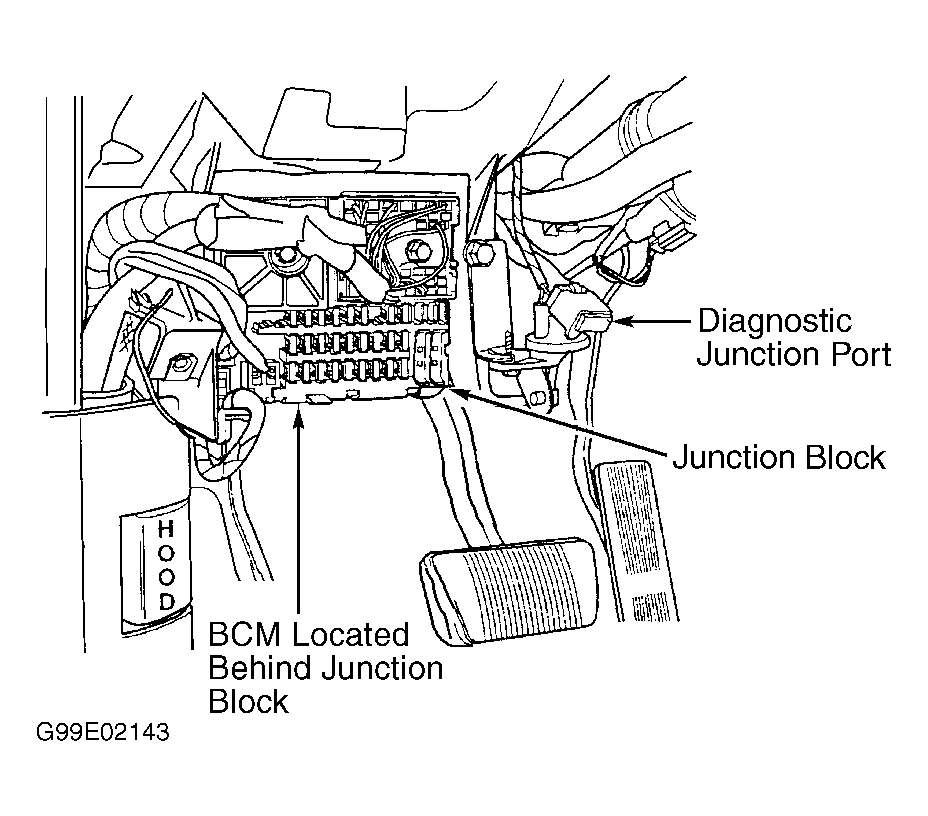

| Diagnostic Junction Port | Fig 3 | |
| Junction Block | Fig 3 | |
| Memory Seat Module (MSM) | Under Driver's Seat | |
| Powertrain Control Module (PCM) | Right Rear Corner Of Engine Compartment | |
| Remote Keyless Entry (RKE) Module | Fig 2 | |
| Sentry Key Immobilizer Module (SKIM) | Fig 5 | |
| Transmission Control Module (TCM) | In Front Of PCM | |
| Wrangler | ||
| Airbag Control Module (ACM) | In Front Of Center Console | |
| Powertrain Control Module (PCM) | Next To Battery | |
