Remove cap from pressure test port located in fuel rail. See Fig 1 . Connect Fuel Pressure Gauge (J-34730-1 ) to pressure fitting.
Start vehicle. Pressure should be approximately 31 psi (2.1 kg/cm² ) with vacuum hose connected to pressure regulator and approximately 39 psi (2.6 kg/cm² ) with vacuum hose removed from pressure regulator.
Check fuel pump flow rate. A good fuel pump will deliver at least one liter of fuel per minute with fuel return line pinched off. If fuel pump does not pump adequately, inspect fuel system for a plugged fuel filter or filter sock.
Fuel pump flow rate can be checked by connecting one end of an old A/C gauge hose to fuel test port on fuel rail and inserting other end of hose into a container of at least one liter or more capacity.
Run fuel pump by installing a jumper wire between diagnostic connector terminals D1-5 and D1-6 (located on right wheelwell, behind relay block). See Fig 1 . Be sure to pinch off fuel return line or majority of fuel will be returned to fuel tank.

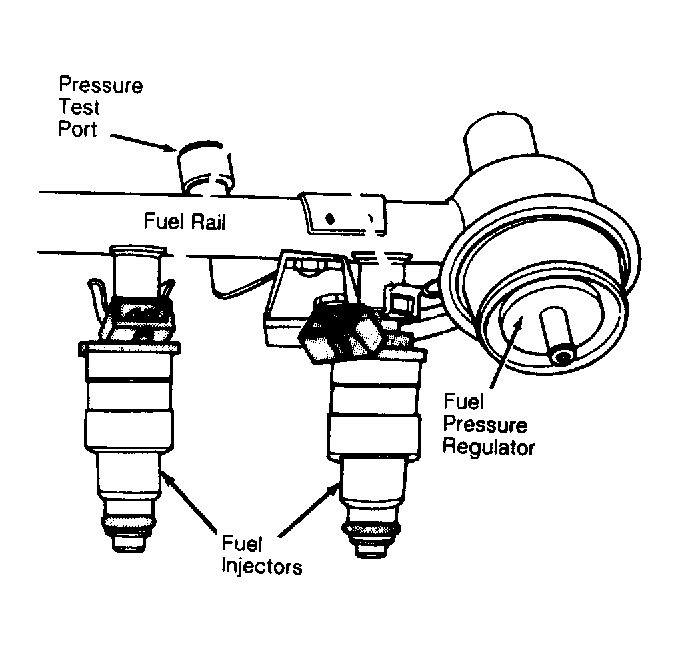

Fig 1: Fuel Pressure Regulator, Fuel Rail & Fuel Injectors

Courtesy of CHRYSLER MOTORS.
