1989 Jeep WagoneerFACTORY OEM SERVICE PROCEDURE
Coolant Temperature Sensor (Cts)
- Disconnect wire harness connector from CTS. Using an ohmmeter, test resistance between sensor terminals.
- With engine at operating temperature, resistance should be less than 1000 ohms. See TEMPERATURE SENSOR RESISTANCE VALUES table below. Replace sensor if resistance is not within specification.

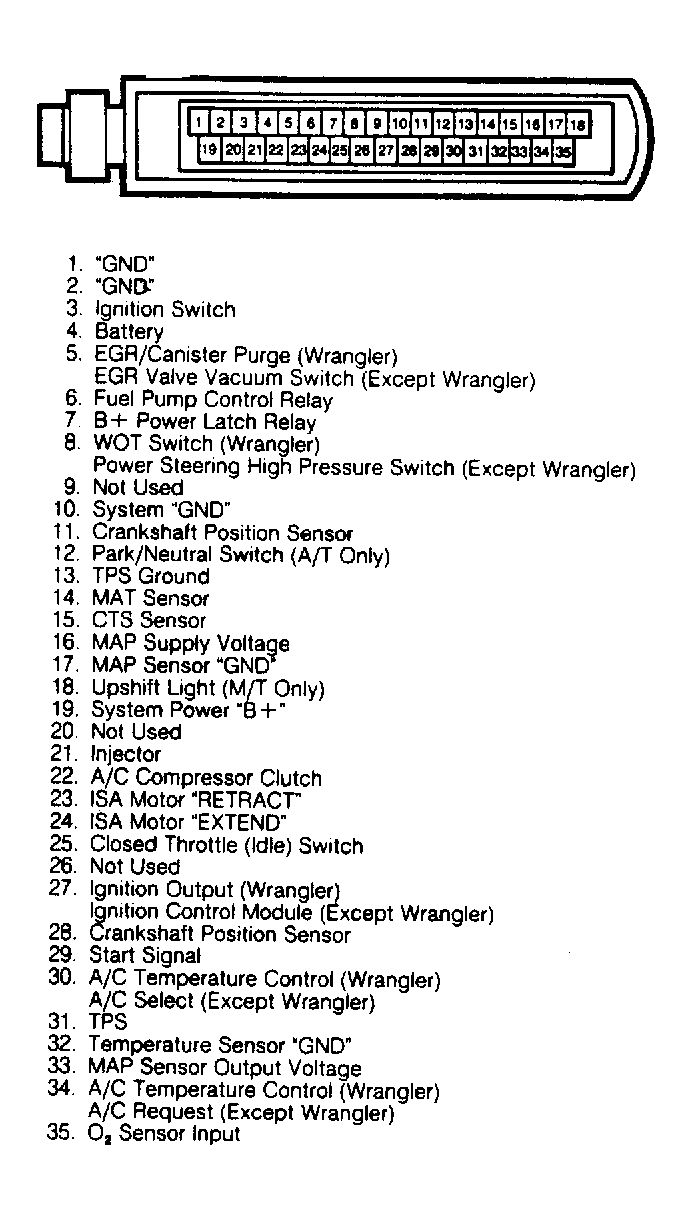

- Using an ohmmeter, Check for continuity between ECU wire connector pin No. 15 and CTS connector terminal. Also, check resistance between pin No. 32 and CTS connector terminal. See Fig 1 . Repair wire harness if an open is indicated.
TEMPERATURE SENSOR RESISTANCE VALUES
| °F (°C) | (1) Ohms | ||
|---|---|---|---|
| 212 (100) | 85 | ||
| 160 (70) | 450 | ||
| 100 (38) | 1600 | ||
| 70 (20) | 3400 | ||
| 40 (4) | 7500 | ||
| 20 (-7) | 13,500 | ||
| 0 (-18) | 25,000 | ||
| -40 (-40) | 100,700 | ||
|
|||
