Inspect MAP sensor hoses and connections. Repair as necessary. With ignition on and engine off, test MAP sensor output voltage at connector terminal "B". (Marked on sensor body). See Fig 1 . Output voltage should be 4 to 5 volts.
To verify wiring harness condition, test ECU terminal C-6 for same voltage described. Test MAP sensor supply voltage at sensor connector terminal "C" with ignition on.
Voltage should be 4.5-5.5 volts. Same voltage should also be at terminal C-14 of ECU wire harness connector. Using Diagnostic Tester (M.S. 1170), test MAP sensor ground circuit at terminal D-3 and terminal "A" of sensor connector.
Using an ohmmeter, test MAP sensor ground circuit at ECU connector between terminal D-3 of ECU connector and terminal B-11 with an ohmmeter.
If ohmmeter or diagnostic tester indicates an open circuit, inspect for a defective sensor ground connection, located on right side of cylinder block. If ground connection is good, ECU may need to be replaced.

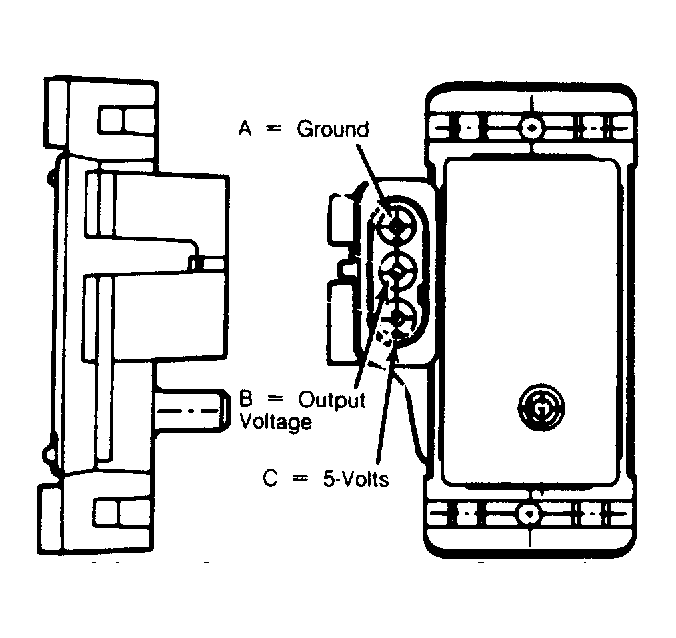

Fig 1: MAP Sensor Test Points

Courtesy of CHRYSLER MOTORS.
