1986 Jeep Cherokee Base, 2D Utility, 2.1 B, RWDFACTORY OEM SERVICE PROCEDURE
Vacuum Spark Control Delay Valve

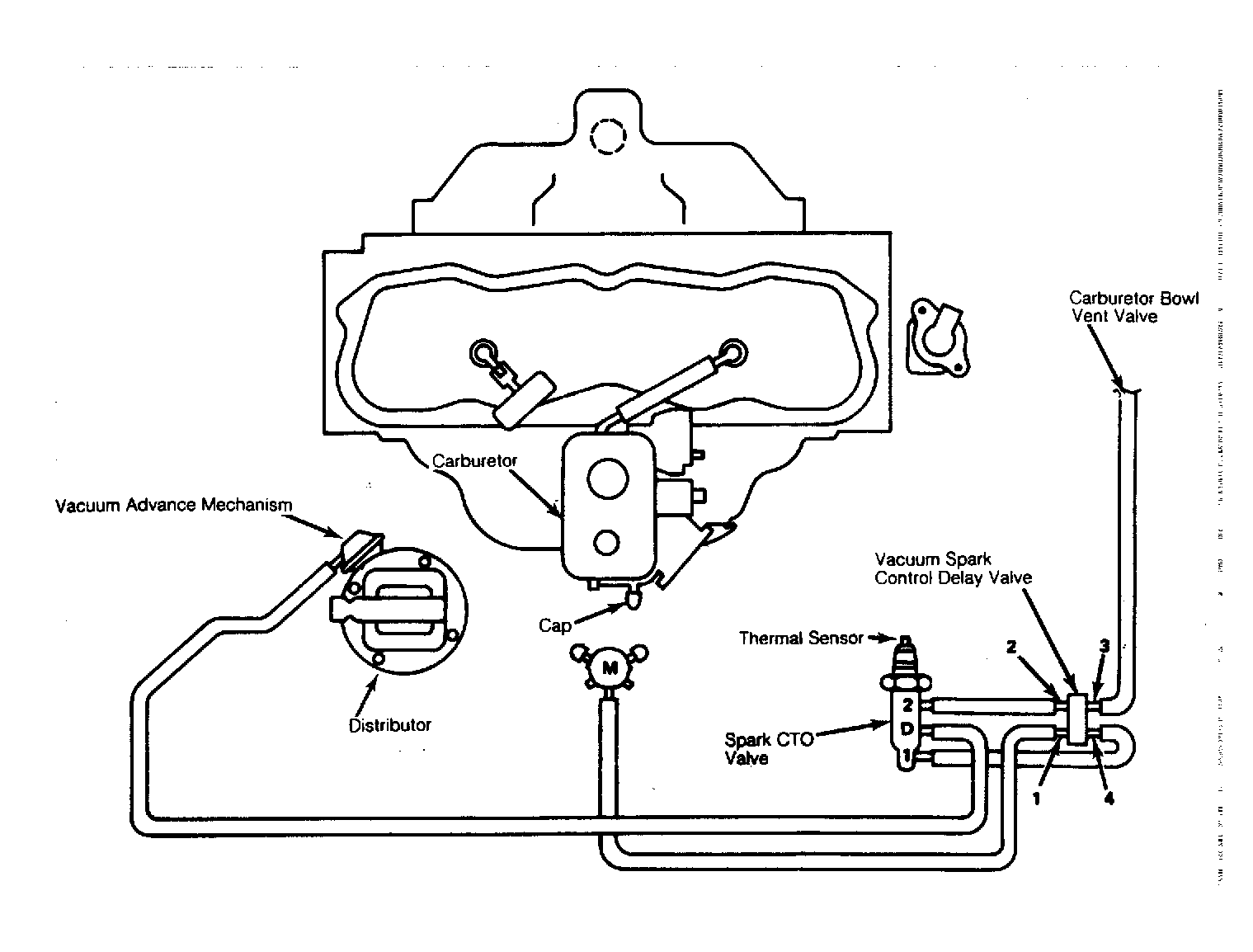

- Connect tee fitting at ports "1" and "4". Connect vacuum gauge to each fitting. Start engine. Vacuum should be equal at both ports. See Figure .
- When throttle is suddenly depressed, vacuum at port "1" will instantly decrease and vacuum at port "4" should be maintained momentarily. If valve fails these tests, replace valve.
