Armature For Short Circuit

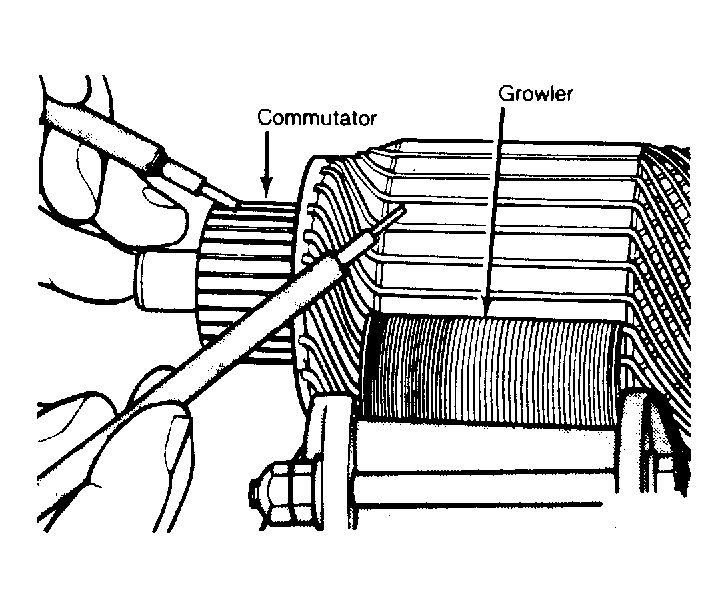

Place armature in a growler and hold a thin steel blade parallel 3/16" (4 mm) above core while rotating armature slowly. If the armature is shorted, blade will vibrate and be attracted to the core. Replace shorted armature. See the STARTER CIRCUIT RESISTANCE chart. Also, see Fig 1.
| Voltmeter Positive Lead To: | Voltmeter Negative Lead To: | Voltage Should Be: |
|---|---|---|
| + Battery Post | + Battery Cable Clamp | 0 Volts |
| + Battery Post | Starter Battery Terminal | 0.2 Volts |
| + Battery Post | Solenoid Lead To Field Coils | 0.3 Volts |
| - Battery Post | - Battery Cable Clamp | 0 Volts |
| - Battery Post | - Battery Cable Clamp | ******* |
| ************** | Connector On Engine Block | 0.2 Volts |
| Starter Housing | - Battery Post | 0.2 Volts |
