2004 Jaguar XJRFACTORY OEM SERVICE PROCEDURE

Engine Control Module (ECM) (18.30.01): Removal

Disconnect the battery ground cable. BATTERY
Remove the cowl vent screen. FRONT END BODY PANELS (2003.5-09)
Remove the cabin air filter.
- Detach the cabin air filter.
- Remove the cabin air filter.

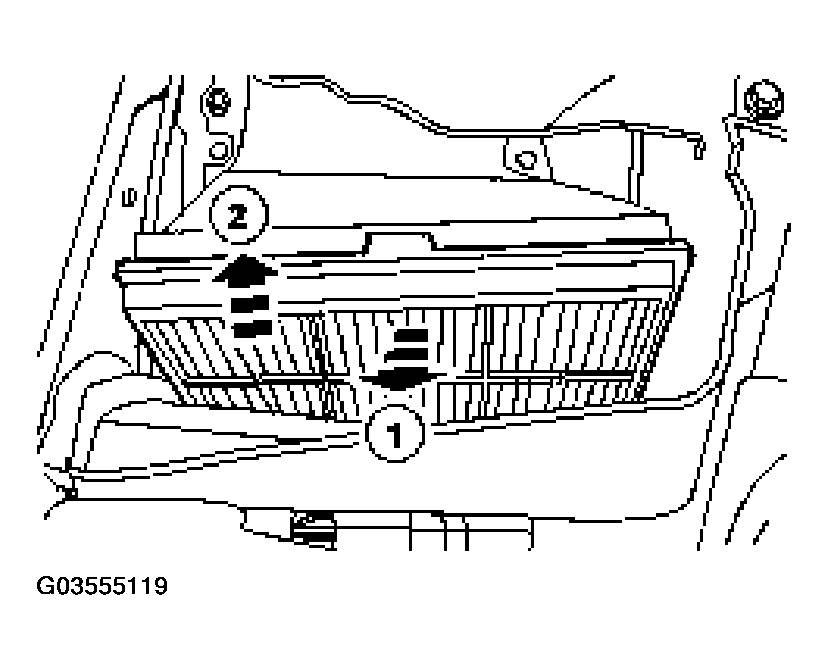

  Fig 1: Removing Cabin Air Filter
  Courtesy of JAGUAR CARS, INC.
Remove the cabin air filter housing.

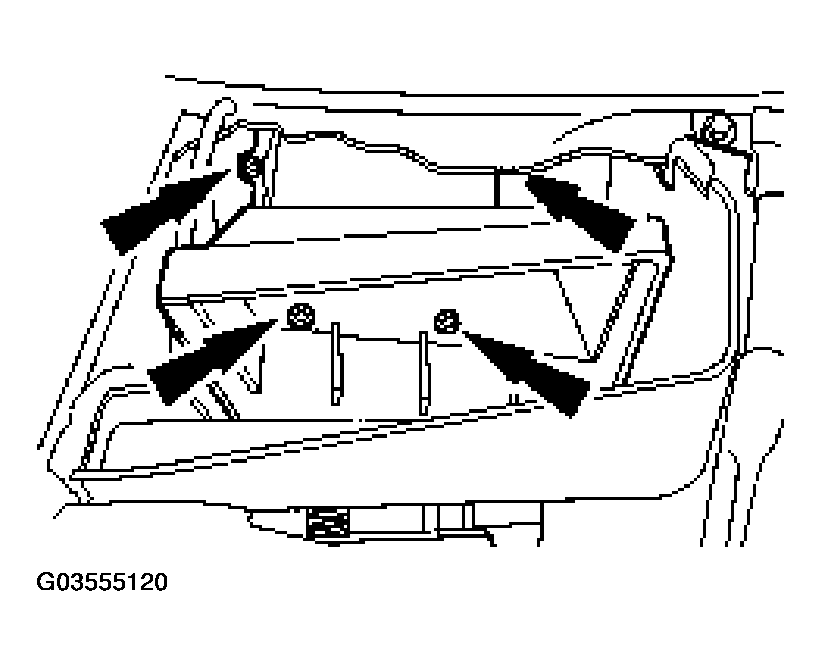

Fig 2: Removing Cabin Air Filter Housing
Courtesy of JAGUAR CARS, INC.
Remove the engine compartment panel.
Remove the engine compartment panel retaining bolt.
- Remove the engine compartment panel.

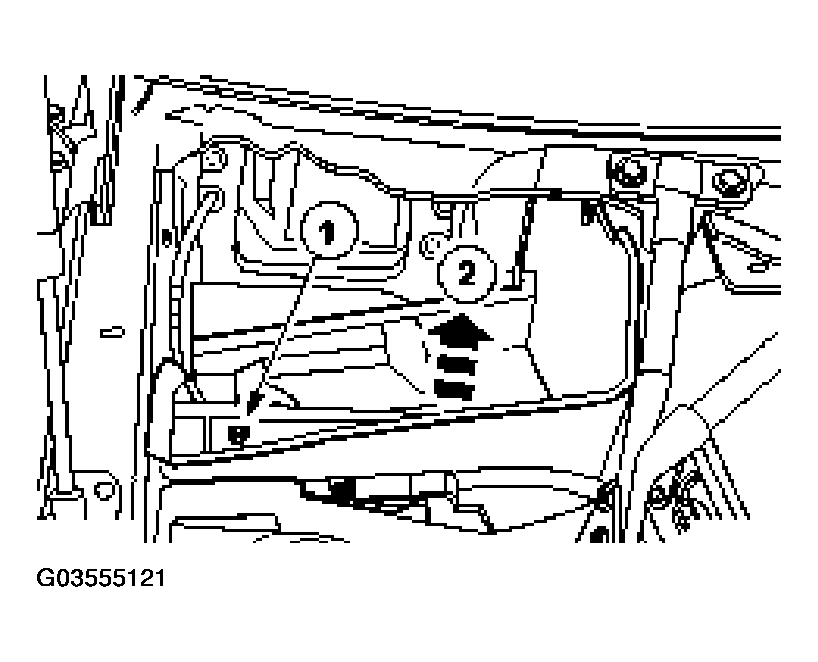

  Fig 3: Removing Engine Compartment Panel
  Courtesy of JAGUAR CARS, INC.

NOTE: The engine control module (ECM) electrical connector retaining bolt remains captive in the electrical connector.
