2004 Jaguar XJRFACTORY OEM SERVICE PROCEDURE

Electronic Engine Controls: Notes

Vehicles with supercharger

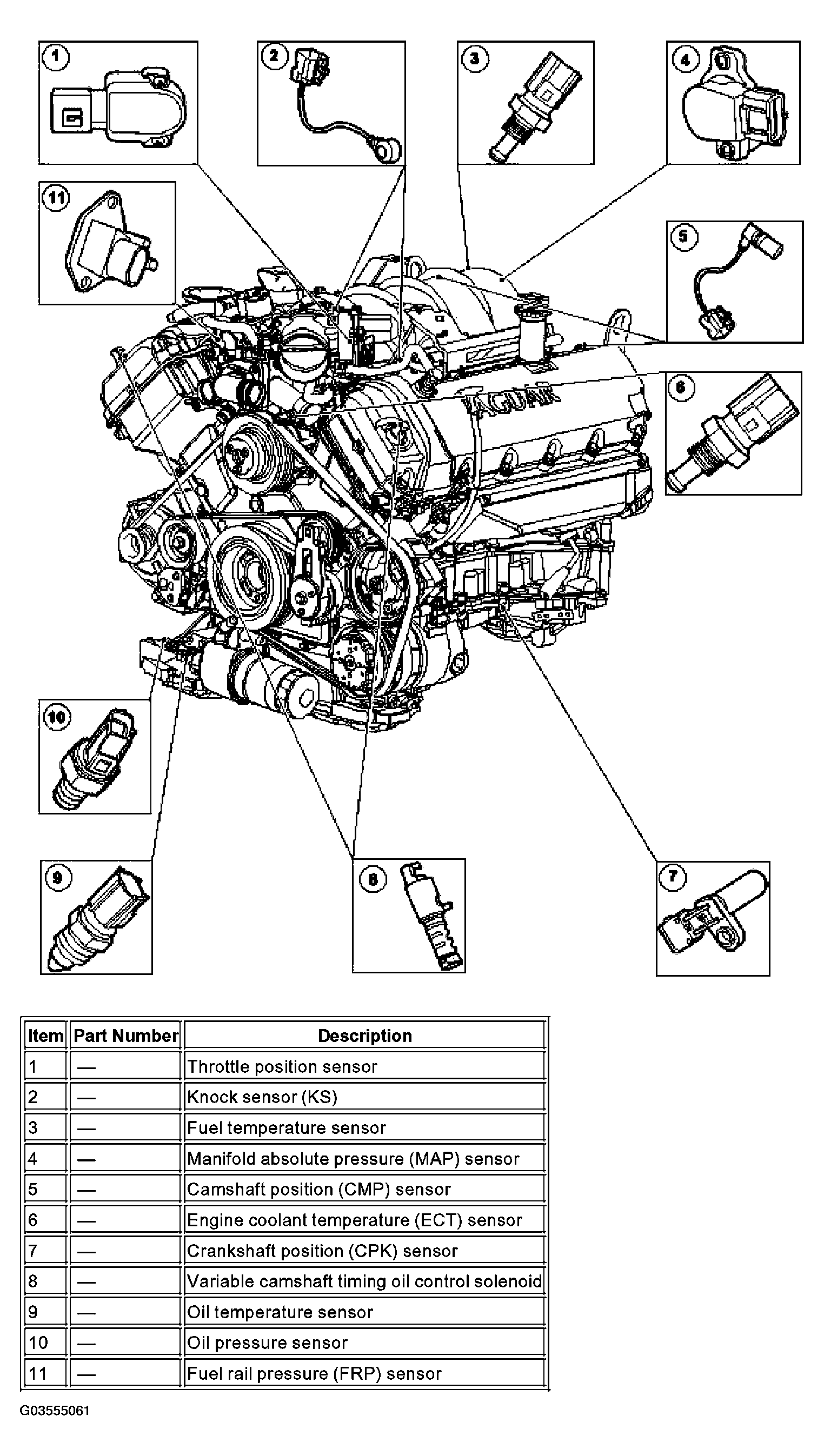

Fig 1: Identifying Components Of Electronic Engine Controls (Vehicles With Supercharger)

Courtesy of JAGUAR CARS, INC.

Vehicles without supercharger

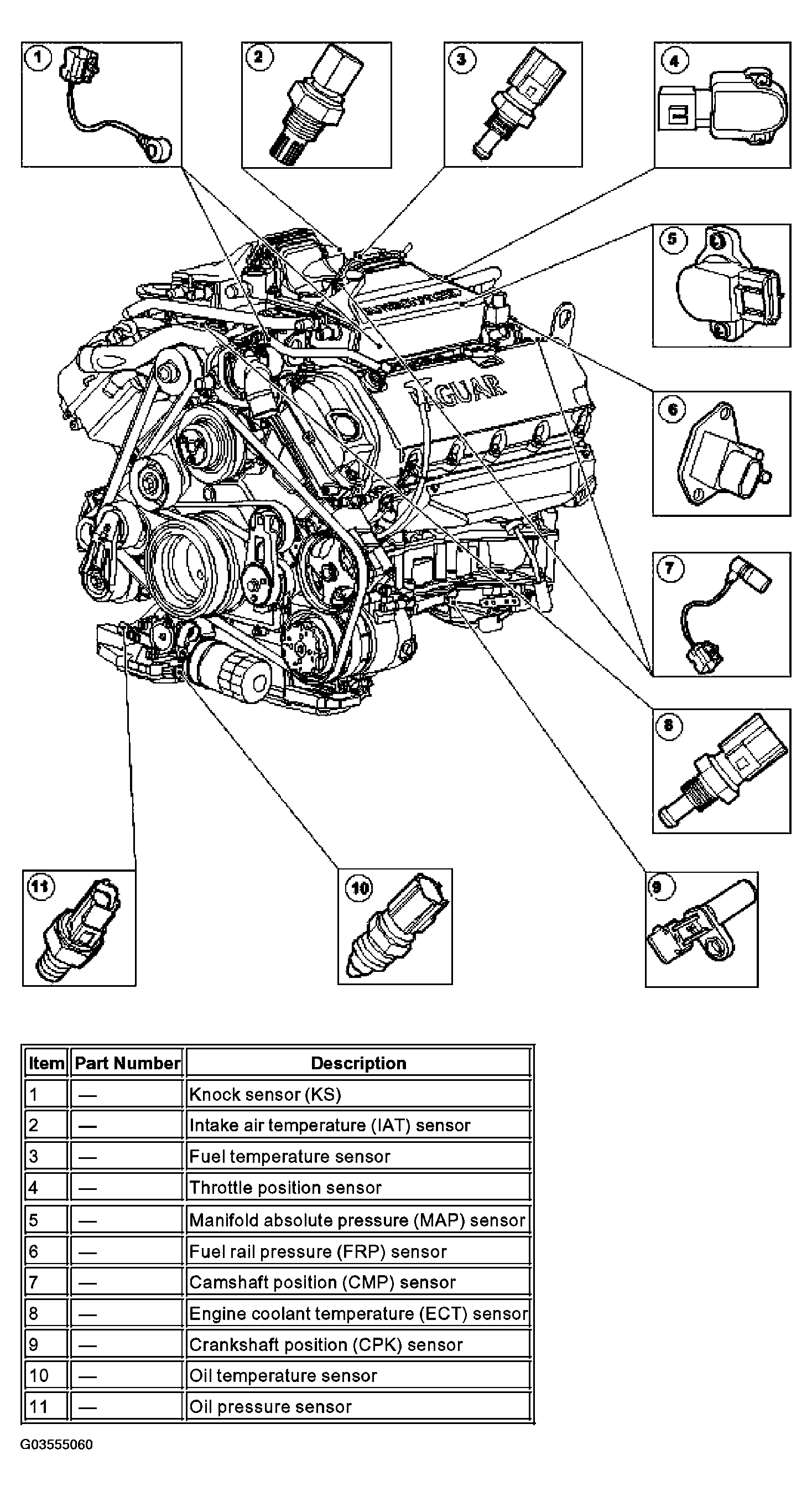

Fig 2: Identifying Components Of Electronic Engine Controls (Vehicles Without Supercharger)

Courtesy of JAGUAR CARS, INC.
