2003 Jaguar XK8 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

Engine Control Module (ECM) - Removal and Installation: Removal

Disconnect the battery ground cable. Refer to Battery, Mounting and Cables .

Courtesy of JAGUAR CARS, INC.

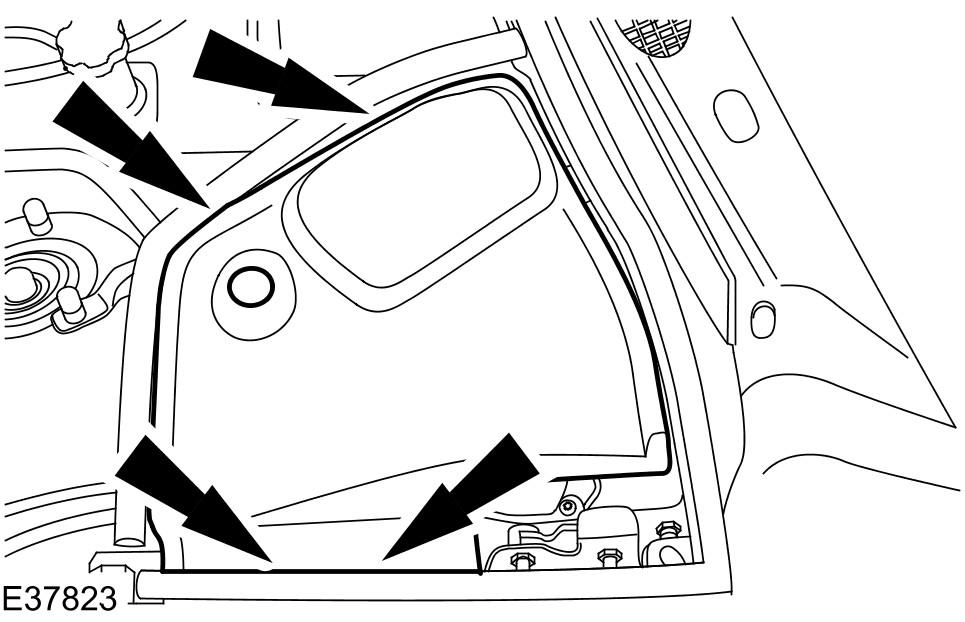

Remove the passenger side bulk head cover.

Courtesy of JAGUAR CARS, INC.

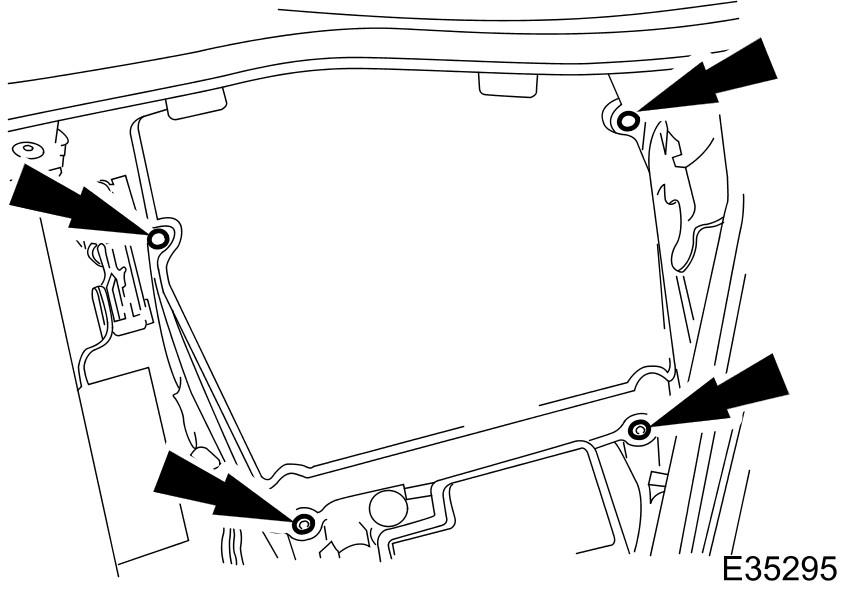

Remove the engine control module (ECM) cover.

Courtesy of JAGUAR CARS, INC.

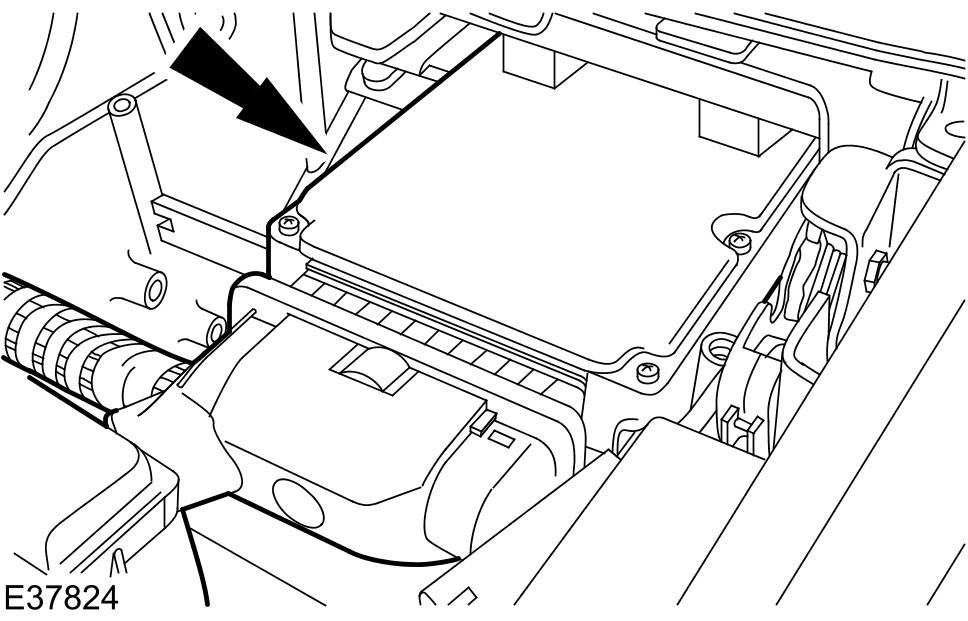

Detach the ECM.

Courtesy of JAGUAR CARS, INC.

NOTE: The ECM electrical connector retaining bolt remains captive in the electrical connector.

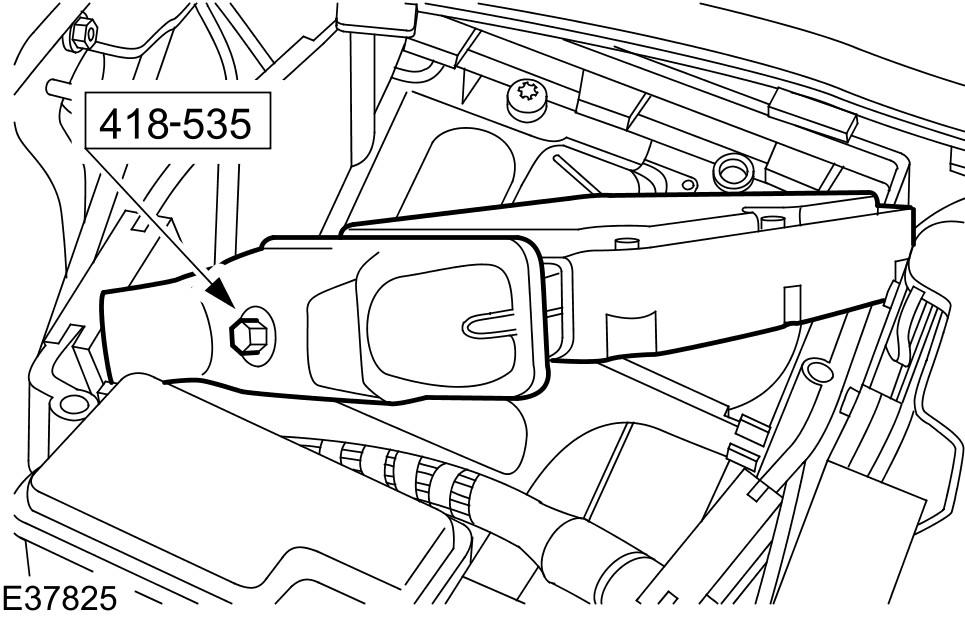

Using the special tool remove the ECM.
