2003 Jaguar XJRFACTORY OEM SERVICE PROCEDURE
Component Location
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

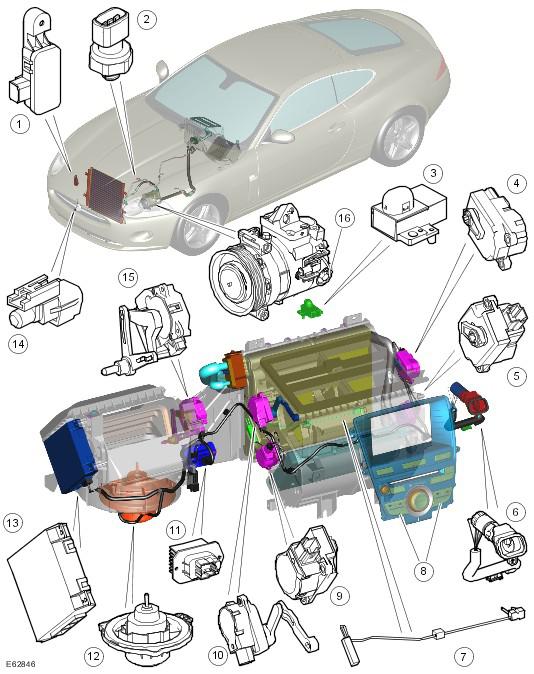

| Item Number | Description |
|---|---|
| 1 | Pollution sensor (if fitted) |
| 2 | Refrigerant pressure sensor |
| 3 | Sunload/Light sensor |
| 4 | Windshield distribution (defrost) stepper motor |
| 5 | Right-Hand (RH) temperature blend stepper motor |
| 6 | Cabin humidity and temperature sensor |
| 7 | Evaporator temperature sensor |
| 8 | Control switches |
| 9 | Left-Hand (LH) temperature blend stepper motor |
| 10 | Face/feet distribution stepper motor |
| 11 | Blower motor control module |
| 12 | Blower motor |
| 13 | Automatic Temperature Control (ATC) module |
| 14 | Ambient air temperature sensor |
| 15 | Air intake servo motor |
| 16 | Air Conditioning (A/C) compressor solenoid valve |
