2003 Jaguar XJRFACTORY OEM SERVICE PROCEDURE

Connector Pin Identity Chart for FC043

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

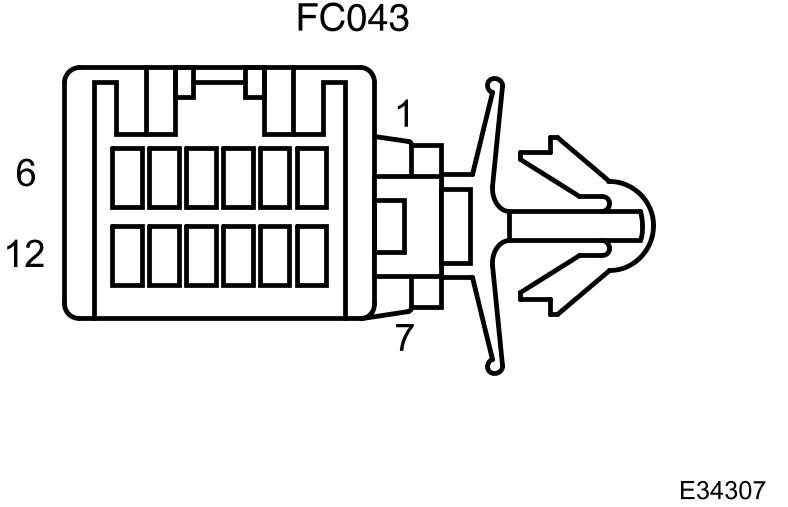

Fig 1: Connector Pin For FC043

Courtesy of JAGUAR CARS, INC.

Pin Number	Circuit	Circuit Function
1		Input CLOCK
2		Input START
3		Input DATA IN
4		Output DATA OUT
5		Input ignition (positive)
6		Input auxiliary (negative)
7		Ground
8		Dimmer
9		Dimmer override
10		Not used
11		Not used
12		Not used
