2003 Jaguar XJRFACTORY OEM SERVICE PROCEDURE

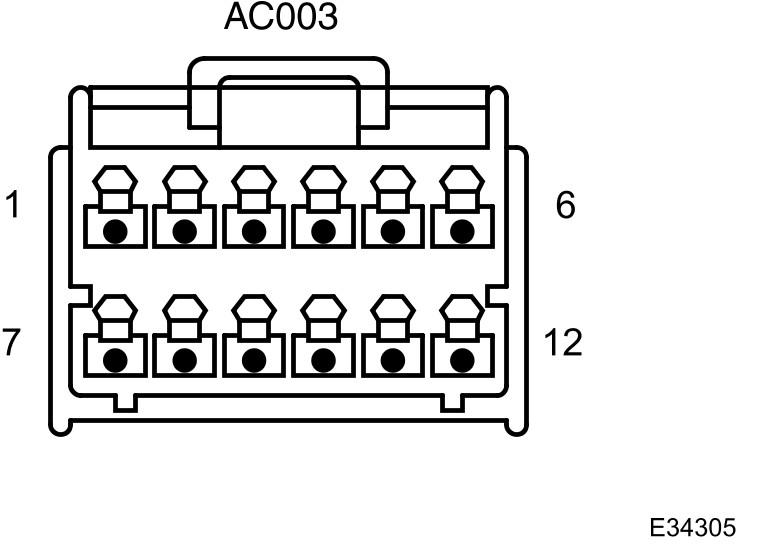

Connector Pin Identity Chart for AC003
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 001 | Screen request to ECM | |
| 002 | CLOCK signal to control panel | |
| 003 | DATA OUT signal to control panel | |
| 004 | Compressor lock signal | |
| 005 | Exterior air temperature sensor | |
| 006 | Heater matrix temperature sensor | |
| 007 | DATA IN signal from control panel | |
| 008 | START signal to control panel | |
| 009 | Not used | |
| 010 | Compressor lock select | |
| 011 | In-car temperature sensor | |
| 012 | Evaporator temperature sensor |
