2003 Jaguar XJRFACTORY OEM SERVICE PROCEDURE

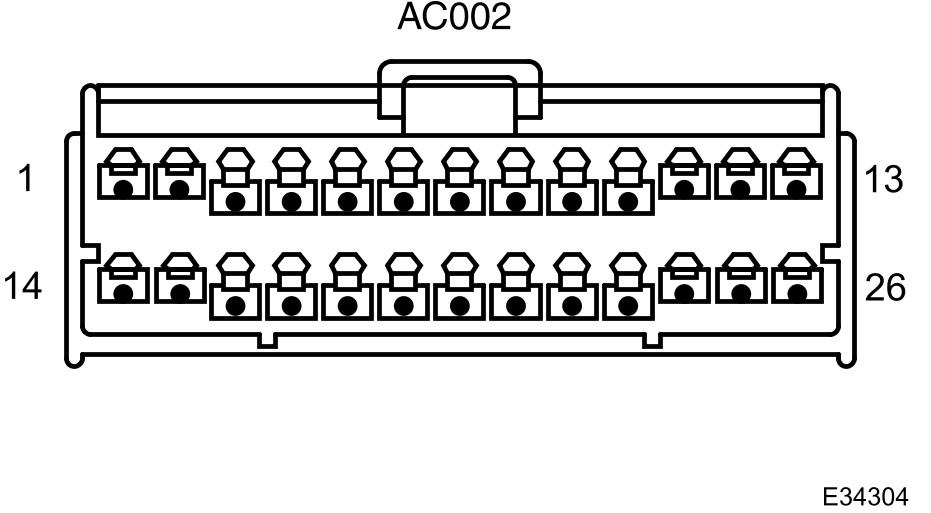

Connector Pin Identity Chart for AC002
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 001 | Solar sensor | |
| 002 | Center vent servomotor feedback potentiometer | |
| 003 | RH air intake servomotor feedback potentiometer fresh / recirculation | |
| 004 | Not used | |
| 005 | Cool air bypass servomotor feedback potentiometer | |
| 006 | Coolant temperature signal | |
| 007 | RH blower motor voltage feedback | |
| 008 | RH blower motor drive signal | |
| 009 | Differential potentiometer | |
| 010 | Defrost servomotor feedback potentiometer | |
| 011 | LH air intake servomotor feedback potentiometer fresh / recirculation | |
| 012 | Not used | |
| 013 | Foot servomotor feedback potentiometer | |
| 014 | Not used | |
| 015 | LH blower motor voltage feedback | |
| 016 | LH blower motor drive signal |
