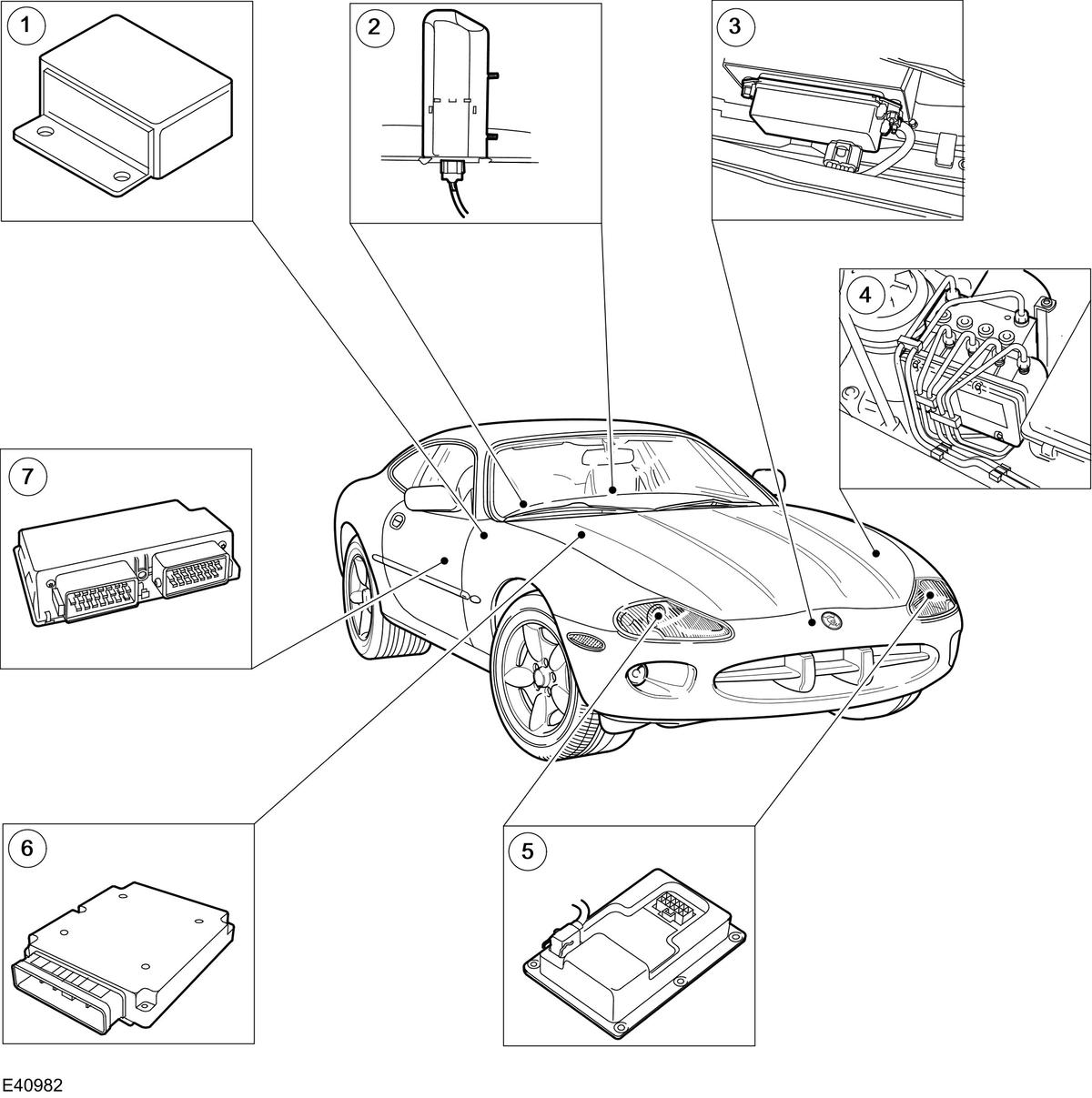

Fig 1: Communication Networks Module Location (1 Of 2)

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Passive anti-theft system (PATS) module
2	Head restraint control module
3	Speed control module - vehicles with adaptive speed control
4	Anti-lock brake system (ABS) module
5	Ballast and headlamp leveling module
6	Engine control module (ECM)
7	Driver door module (DDM)

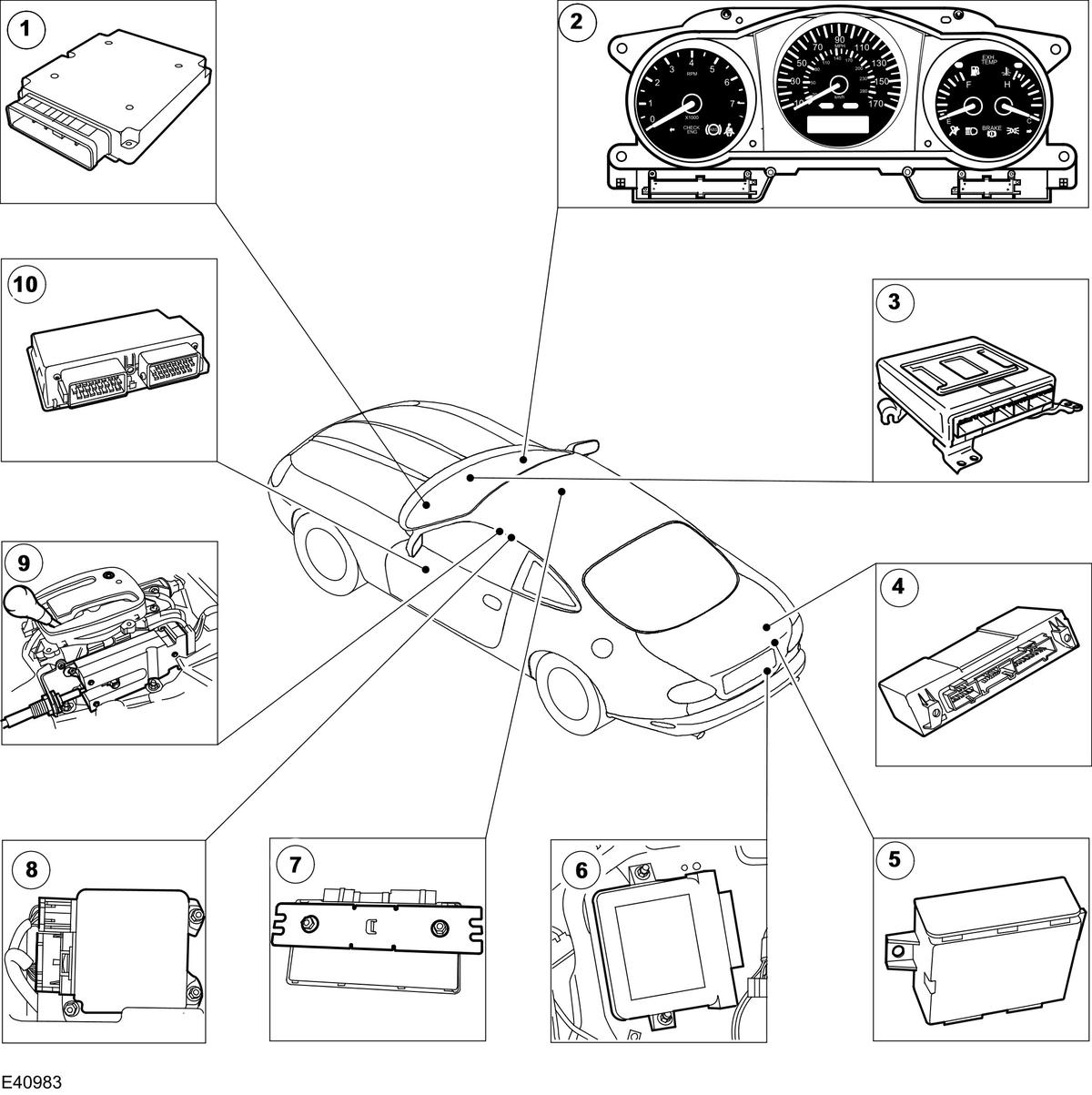

Fig 1: Communication Networks Module Location (2 Of 2)

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Multifunction electronic control module
2	Instrument cluster
3	Climate control module
4	Anti-theft alarm and double locking module
5	Parking aid module
6	Adaptive damping module
7	Driver seat module (DSM)
8	Restraints control module (RCM)
9	Transmission control switch and selector lever indicator assembly
10	Passenger door module (PDM)
