Acceleration Control

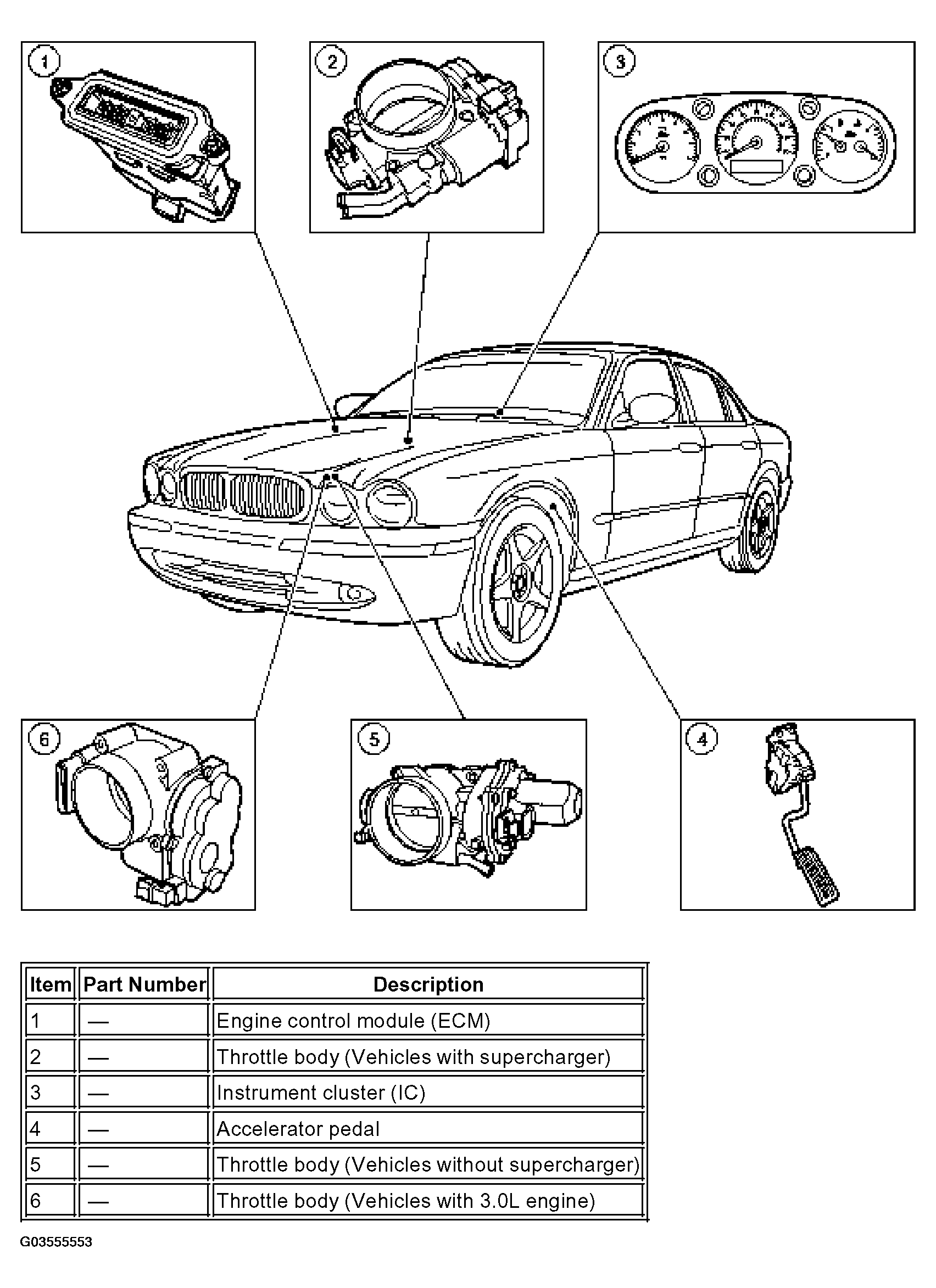

When the accelerator pedal is applied, the two accelerator position sensors measure the pedal movement and provide an output voltage proportional to pedal movement to the engine control module (ECM). Two sensors are used as a safety feature. The accelerator pedal has two return springs to guarantee the accelerator returns to the zero position when the pedal is released. While comparison checks are carried out on the accelerator pedal for rational values, communications within the ECM are monitored for rational values and responses.
The ECM then provides an output, based on the accelerator pedal position, which drives a DC motor which positions the throttle blade at the requested angle. The throttle blade position is monitored by two sensors for rational value.
The acceleration control system has the necessary safety features to monitor the correct operation of all the components. Depending on the failure state, the acceleration control system can be put in appropriate safe state, from restricting the RPM to limp home mode.
