2002 Jaguar XJR BaseFACTORY OEM SERVICE PROCEDURE
Selector Lever Cable Adjustment
- Remove the battery cover and disconnect battery ground cable.
- Position the shift to N.
- Remove the J-gate surround. See SELECTOR LEVER GATE FINISH PANEL .
- Remove the console finisher veneer panel. See FLOOR CONSOLE FINISH PANEL for 2001 or FLOOR CONSOLE FINISH PANEL for 2002-03.
- Remove the center console assembly, see FLOOR CONSOLE for 2001 or FLOOR CONSOLE for 2002-03.

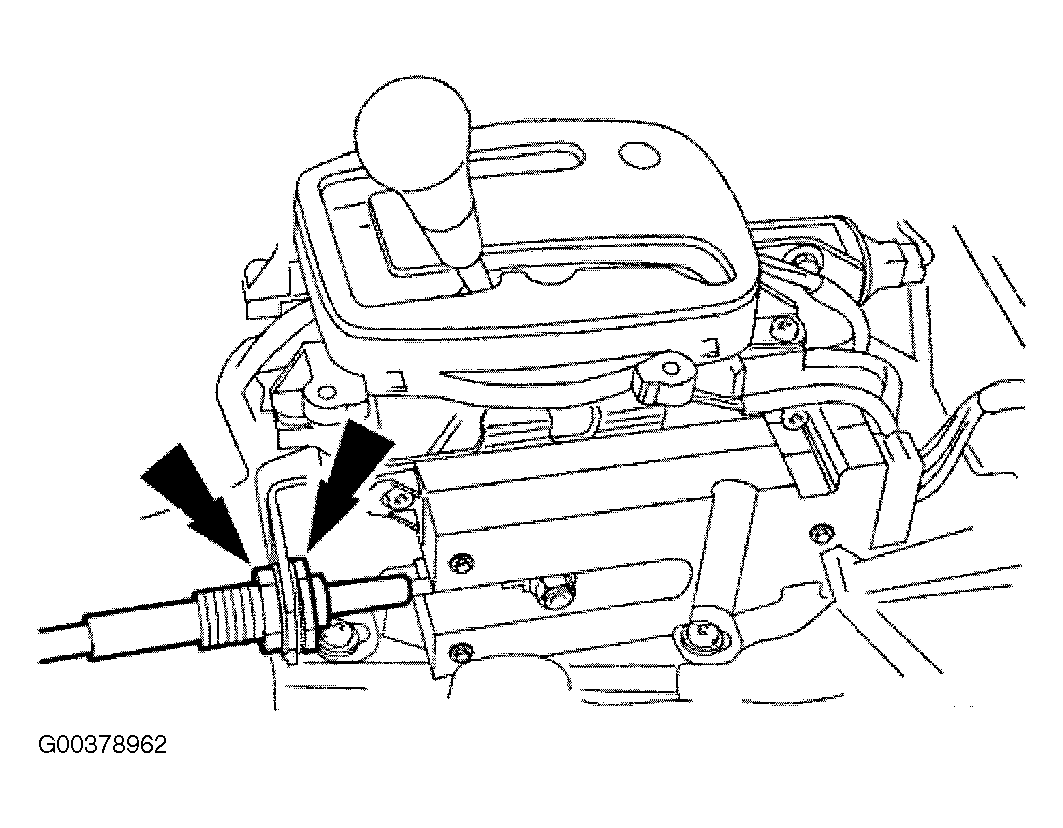

- Slacken the selector cable locking nuts away from the abutment.
- Raise and support vehicle for access.
- Verify the transmission selector position (N).

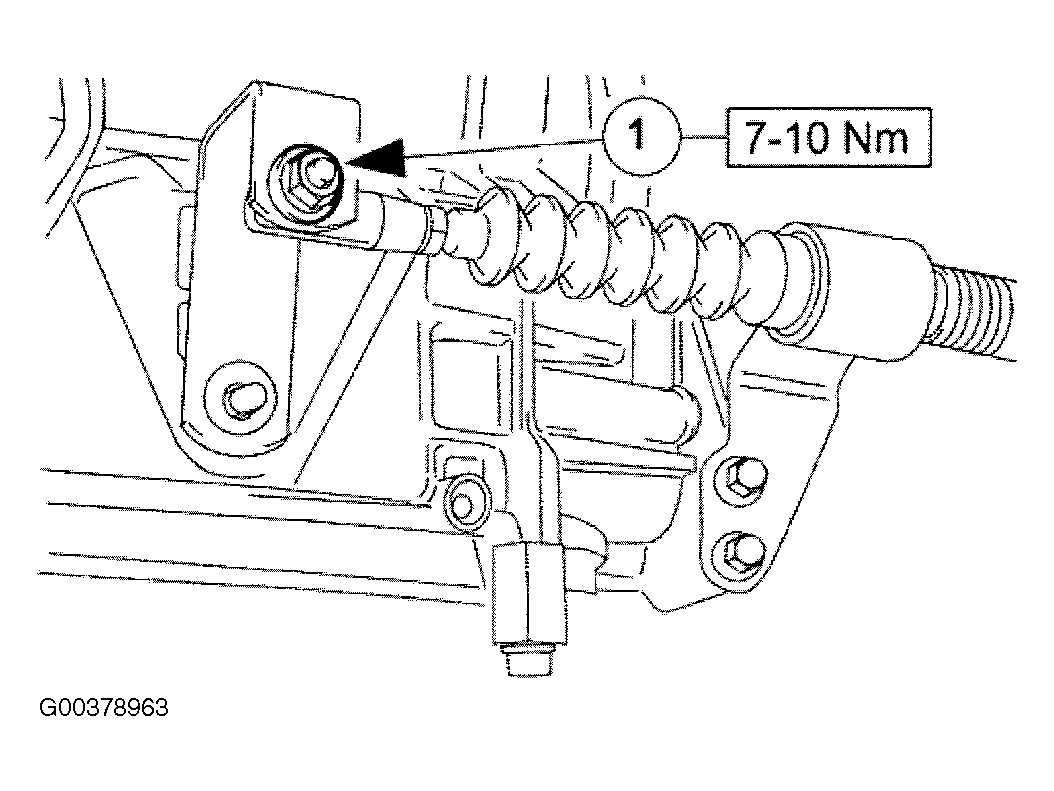

- At the transmission, detach the inner cable from the selector lever.
- With the lever moved fully rearward, push the lever forward two detents to achieve N.
- Reconnect the inner cable.
NOTE:
When setting the selector cable, ensure that the transmission selector does not move from the N position.
