2002 Jaguar XJR BaseFACTORY OEM SERVICE PROCEDURE

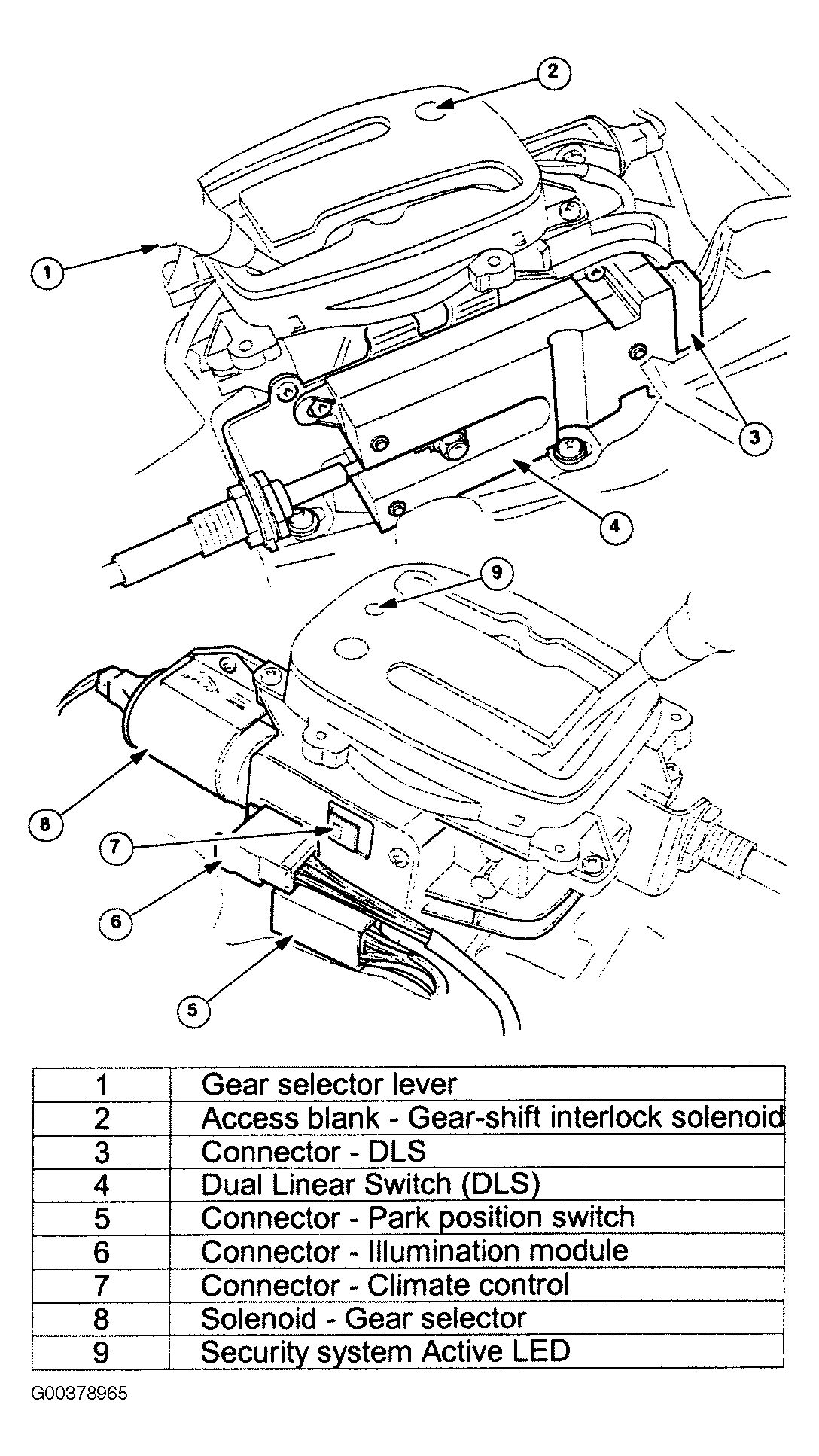

Operators Selector Module ("J" Gate): Notes
Gear selector positions are:
- P Transmission mechanically locked, starting available.
- R Reverse gear.
- N Neutral gear, no power to the rear wheels (starting available).
- D Drive gear, all 5 forward gears available. See Performance Mode Push-Button .
- 4 Upshift to 4th gear only.
- 3 Upshift to 3rd gear only.
- 2 Upshift to 2nd gear only.
