COMPONENT LOCATIONS

Component	Location
Battery	In Right Rear Of Luggage Compartment. See Fig 1.
Body Processor Module (BPM)	Behind Right Side Of Instrument Panel. See Fig 2.
Engine Compartment Fuse Box	In Left Front Of Engine Compartment. See Fig 3.
Engine Control Module	In Control Module Enclosure, Right Rear Of Engine Compartment. See Fig 2.
Engine Management Fuse Box	In Control Module Enclosure, Right Rear Of Engine Compartment. See Fig 3.
High Power Protection Module	In Trunk, To The Right Front Of Spare Tire. See Fig 3.
Ignition Key Transponder Exciter	On Steering Column, Near Ignition Key Cylinder. Fig 4.
Ignition Switch	On Steering Column, Behind Ignition Key Cylinder. See .Fig 5
Key Transponder Module	Center Of Vehicle, Behind Instrument Panel. See Fig 2.
Not-In-Park Switch	On Gear Selector. See Fig 6.
Park/Neutral Switch	On Gear Selector. See Fig 6.
Starter Motor	Lower Right Rear Of Engine. See Fig 7.
Starter Relay	In Control Module Enclosure, Right Rear Of Engine Compartment. See Fig 8.
Trunk Fuse Box	In Right Rear Of Luggage Compartment, Next To Battery. See Fig 3.

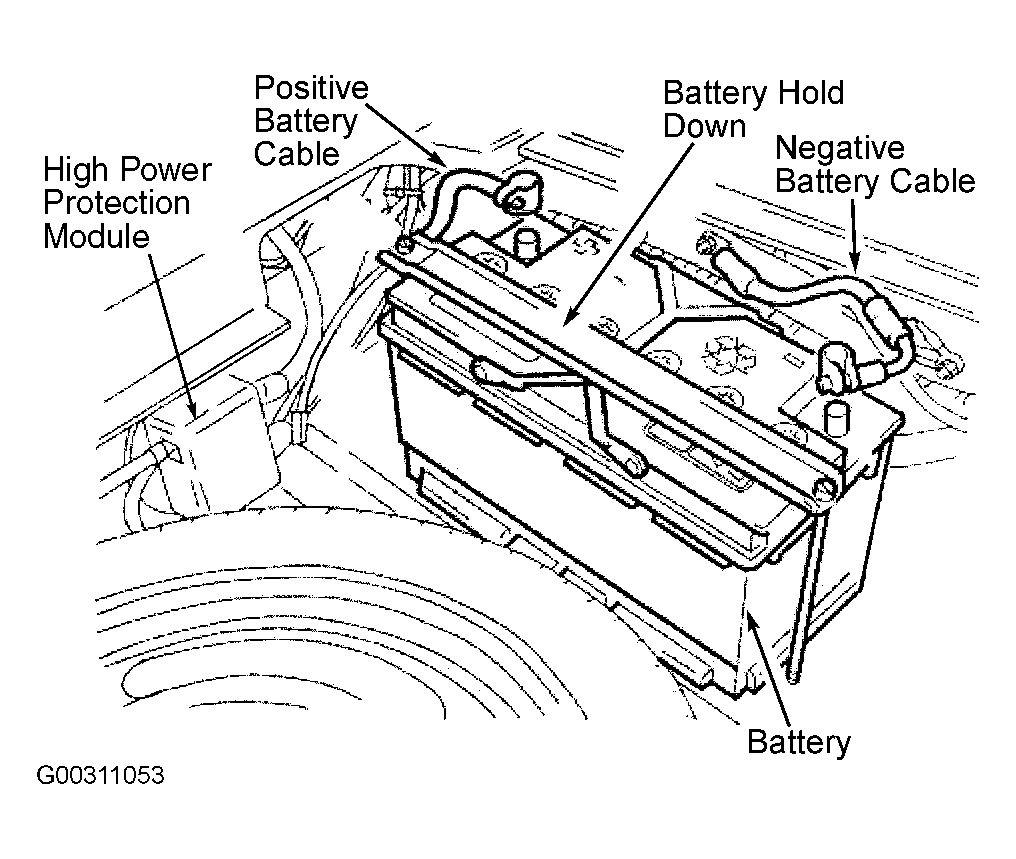

Fig 1: Locating Battery

Courtesy of JAGUAR CARS, INC.
