2002 Jaguar XJ8 BaseFACTORY OEM SERVICE PROCEDURE

Transmission Control Module (TCM): Removal

Remove the battery cover and disconnect battery ground cable.
Remove the trim panel from the engine compartment, passenger side.
1. Remove the left hand side enclosure panel.
2. If necessary, remove the center trim panel.

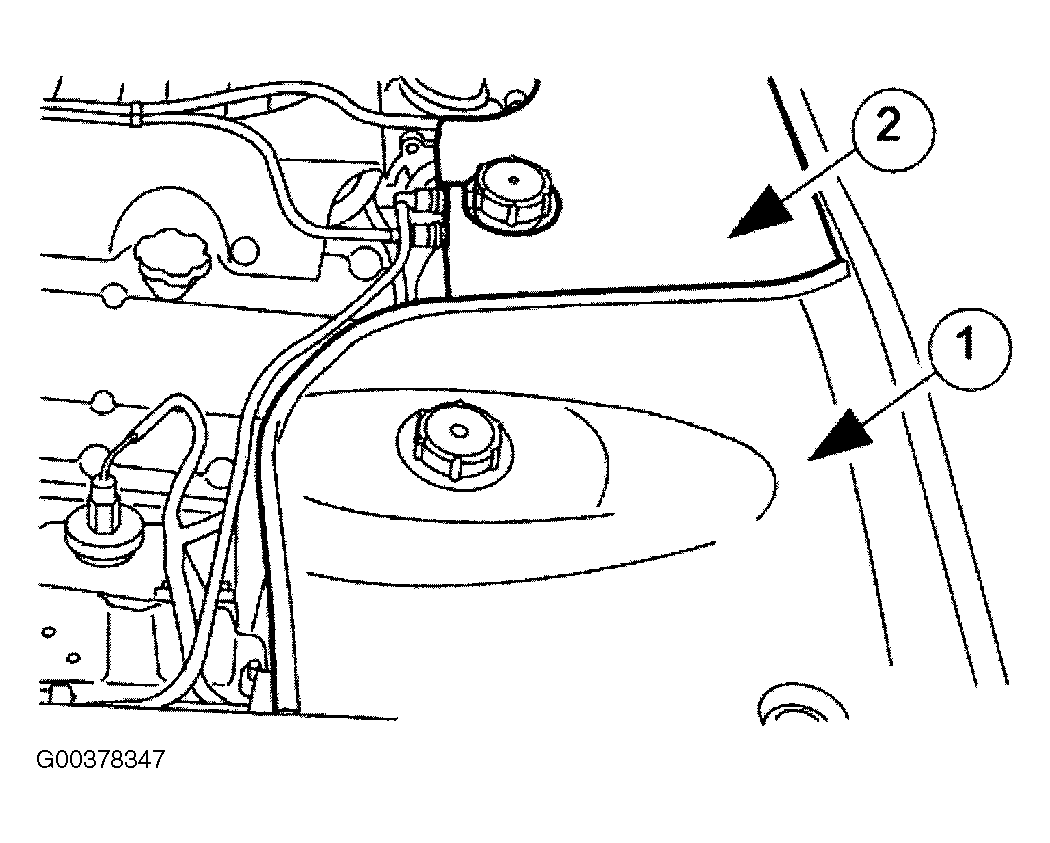

Fig 1: Removing & Installing Engine Compartment Trim Panel
Courtesy of JAGUAR CARS, INC.
Release the fixings and remove the cover from the ECM/TCM housing.

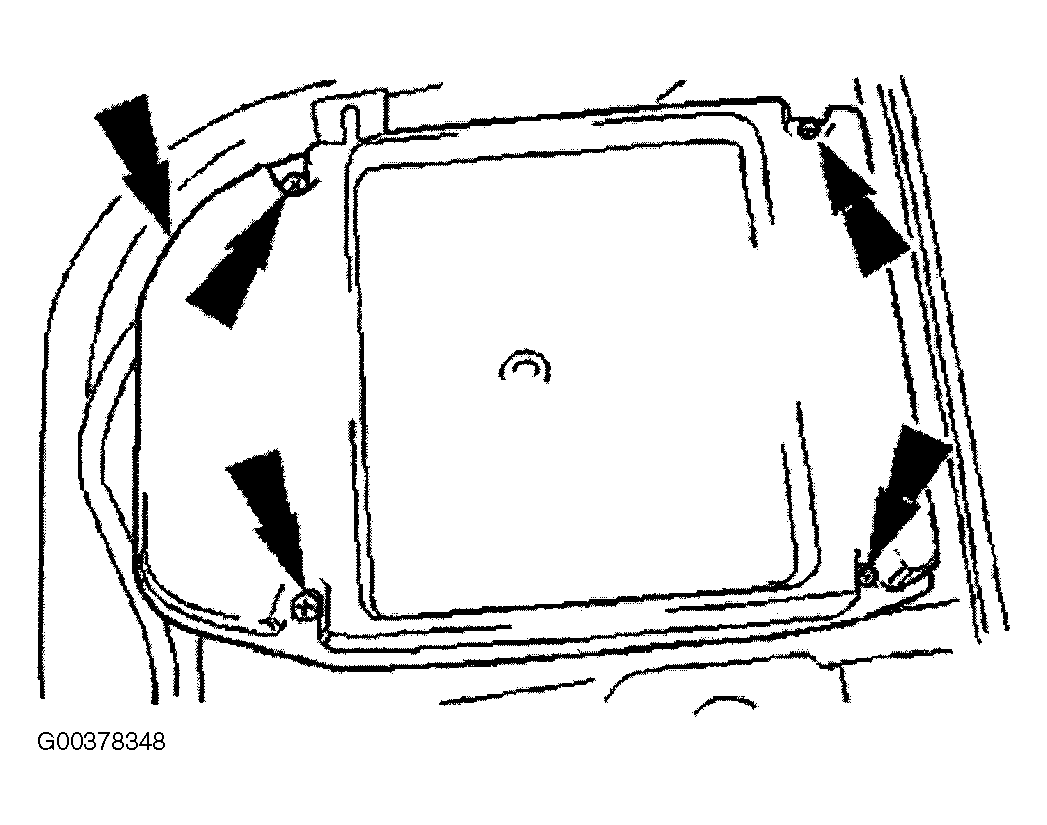

Fig 2: Removing & Installing ECM/TCM Housing Cover
Courtesy of JAGUAR CARS, INC.
Disconnect the TCM harness multiplug EM007.

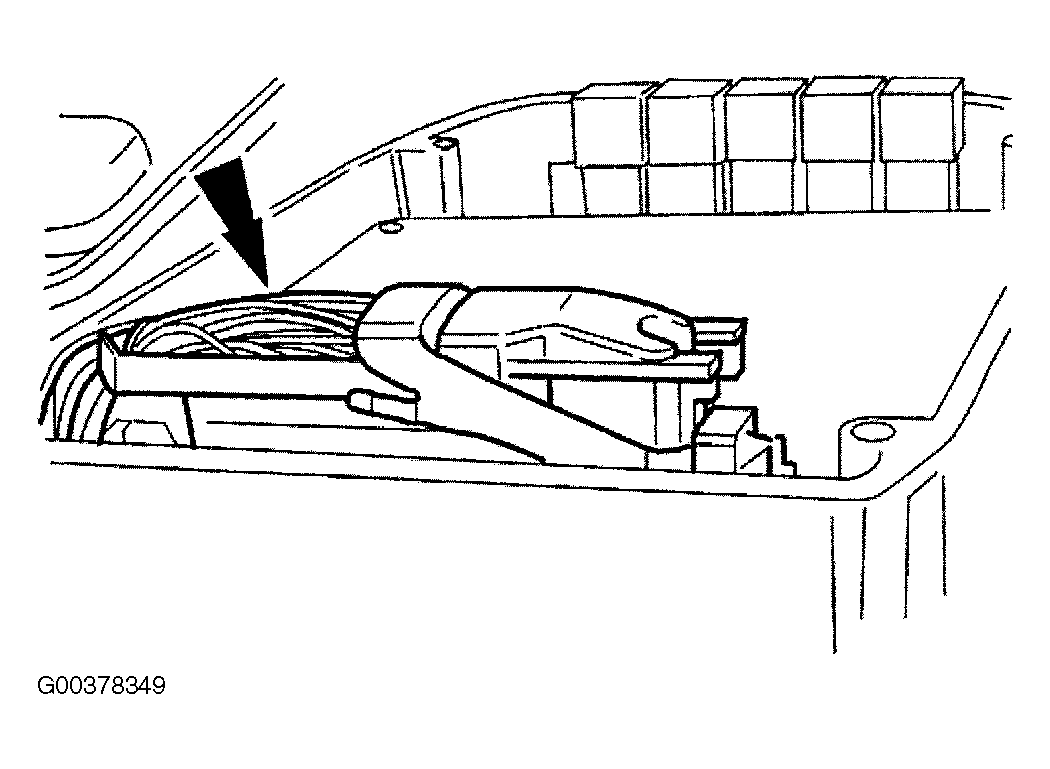

Fig 3: Removing & Installing TCM Connector
Courtesy of JAGUAR CARS, INC.
Disconnect the TCM harness multiplug EM007.
