2001 Jaguar XJRFACTORY OEM SERVICE PROCEDURE
Anti-Lock Brake System (ABS) Module: Installation

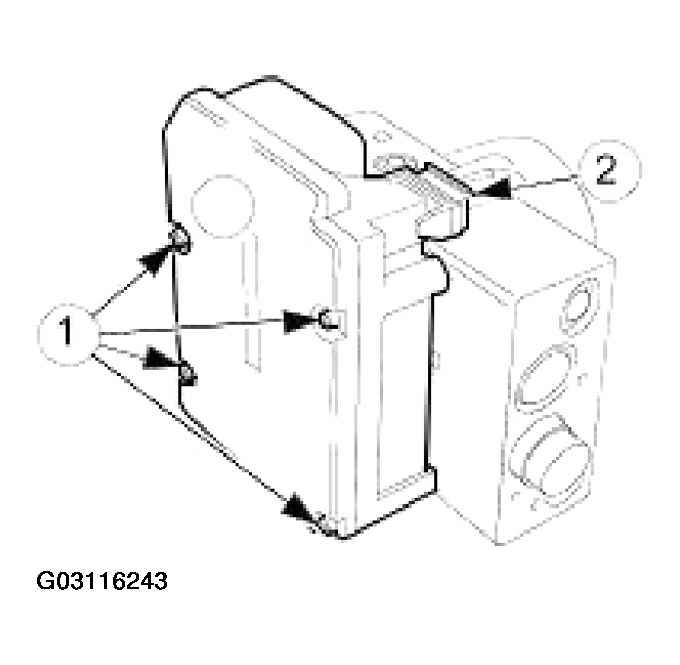

- Install the ABS/TCCM to the HCU.
- Install and tighten bolts. (1)
- Connect electrical connector. (2)

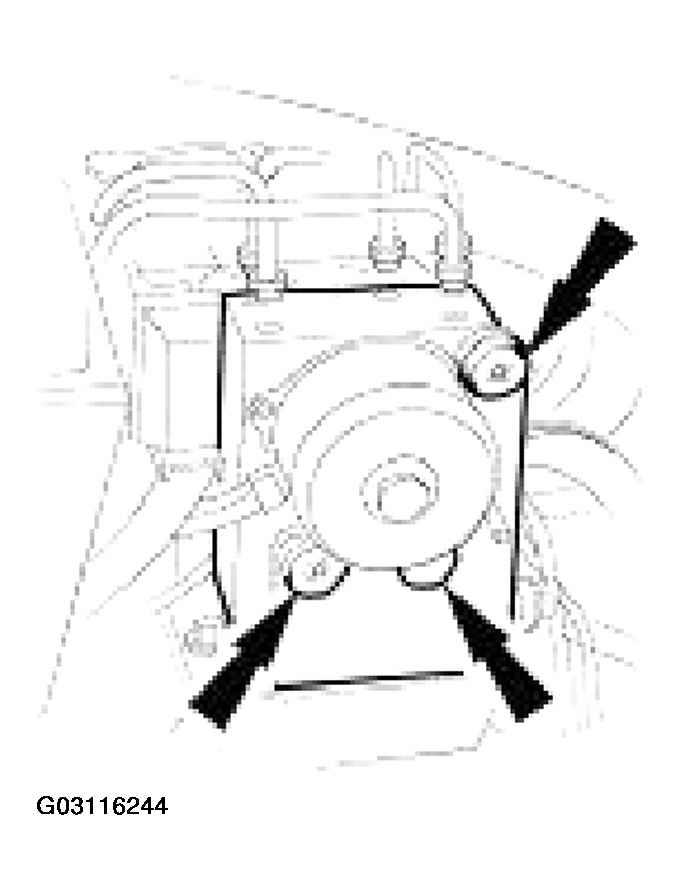

- Install HCU.
- Taking care not to distort brake tubes position HCU into bracket.
- Install bolts and tighten to 8-10 Nm.
NOTE:
To minimize brake fluid loss, install the brake tubes to the HCU in the order shown.
