2001 Jaguar XJRFACTORY OEM SERVICE PROCEDURE
Description and Operation: Notes

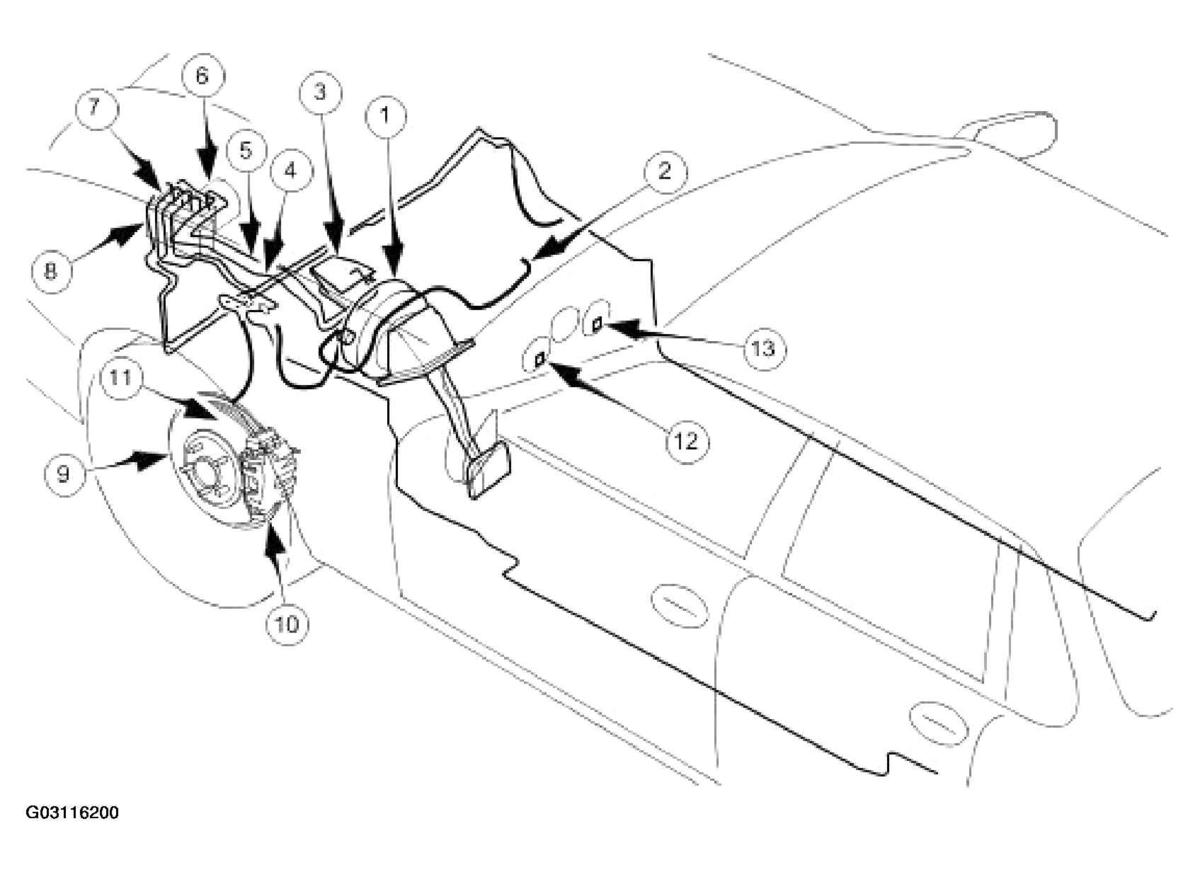

ANTI-LOCK CONTROL COMPONENT DESCRIPTION
| Item | Description |
|---|---|
| 1 | Pedal Housing / Booster - refer to POWER BRAKE ACTUATION |
| 2 | Vacuum Hose - refer to POWER BRAKE ACTUATION |
| 3 | Master Cylinder / Reservoir - refer to HYDRAULIC BRAKE ACTUATION |
| 4 | Primary Brake Circuit - refer to HYDRAULIC BRAKE ACTUATION |
| 5 | Secondary Brake Circuit - refer to HYDRAULIC BRAKE ACTUATION |
| 6 | Hydraulic Pump / Motor Unit |
| 7 | ABS/Traction Control Module (ABS/TCCM) |
| 8 | Hydraulic Control Unit (HCU) |
| 6/7/8 | Brake Control Modulator |
| 9 | Brake Disc - refer to DISC |
| 10 | Brake Caliper - refer to DISC |
| 11 | Wheel Speed Sensor |
| 12 | ABS Warning Lamp |
| 13 | Brake Fluid Level Warning-Lamp - refer to HYDRAULIC BRAKE ACTUATION |
