Open the driver's door, or both doors if necessary, to allow the side windows to drop. Ensure that the doors remain open until after the battery has been disconnected.
Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .
Remove the trim pad from the door; refer to DOOR TRIM PANEL .
Remove the door speaker from the door.
- Remove the four bolts which secure the speaker. (1)

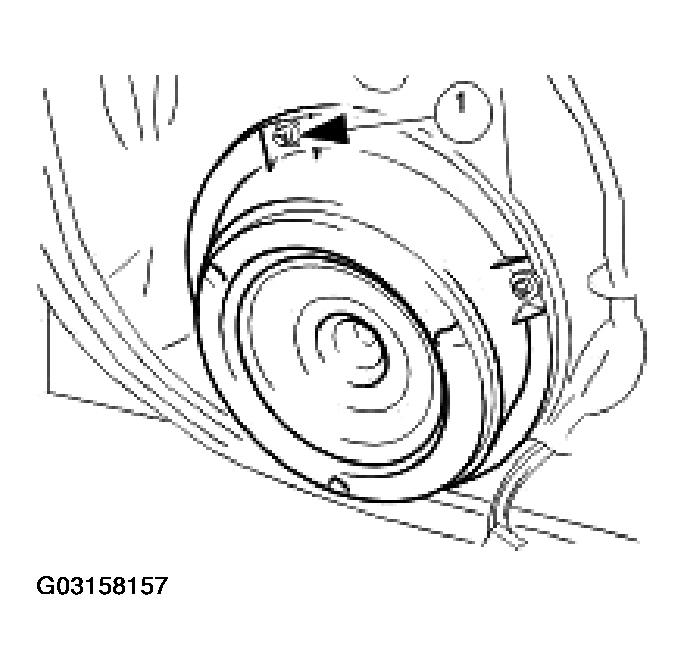

Fig 1: Removing Door Speaker From Door
Courtesy of JAGUAR CARS, INC.
Disconnect and remove the speaker.
- Support the speaker, disconnect the multi-plug and remove the speaker. (1)

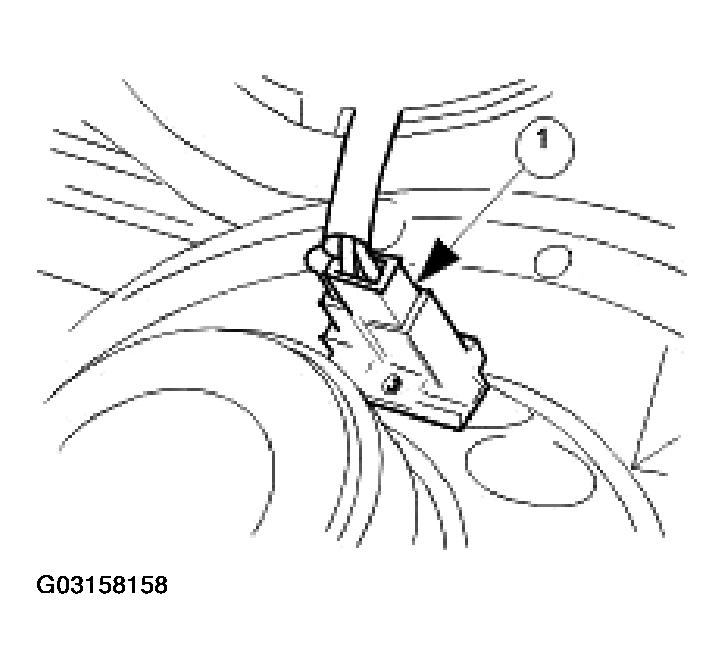

Fig 2: Disconnecting Multi-Plug
Courtesy of JAGUAR CARS, INC.
Disconnect the door module.
- Remove the three screws which secure the module to the door. (1)
- Reposition the module outwards through the speaker aperture.

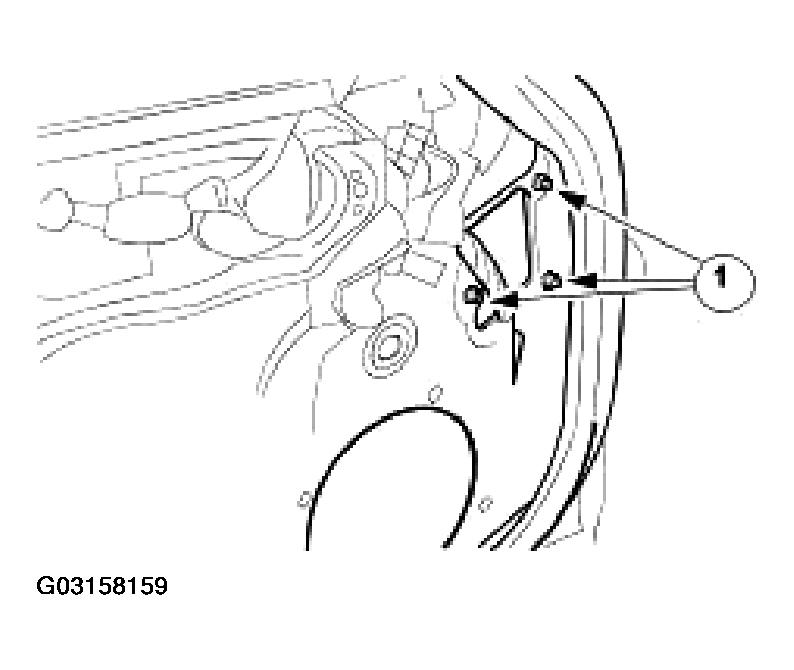

Fig 3: Disconnecting Door Module
Courtesy of JAGUAR CARS, INC.
Disconnect the harness from the module.
- Disconnect the two multi-plugs. (1)
- Remove the module. (2)

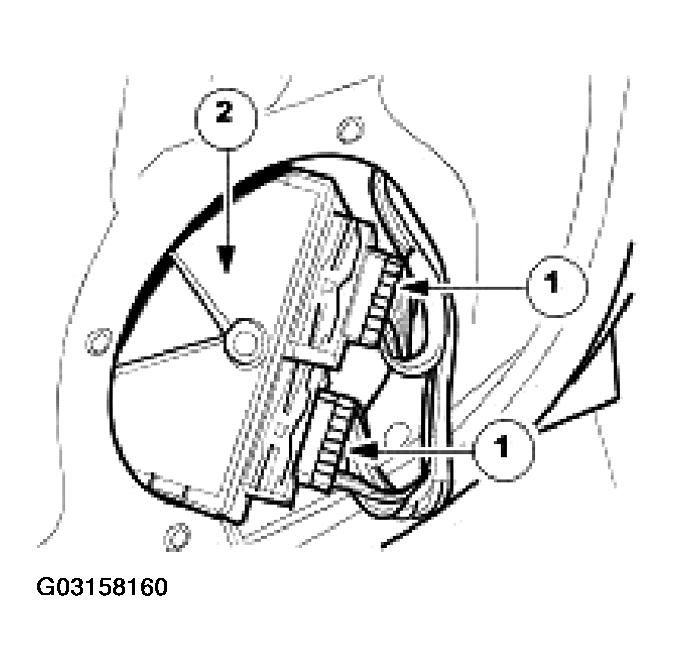

Fig 4: Disconnecting Multi-Plugs & Removing Door Module
Courtesy of JAGUAR CARS, INC.
If necessary remove the foam gasket from the module; note that a new gasket must be fitted when installing a new module.
