2000 Jaguar XJRFACTORY OEM SERVICE PROCEDURE

Sunload Sensor - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove both A-pillar trim panels. Refer to Interior Trim and Ornamentation .

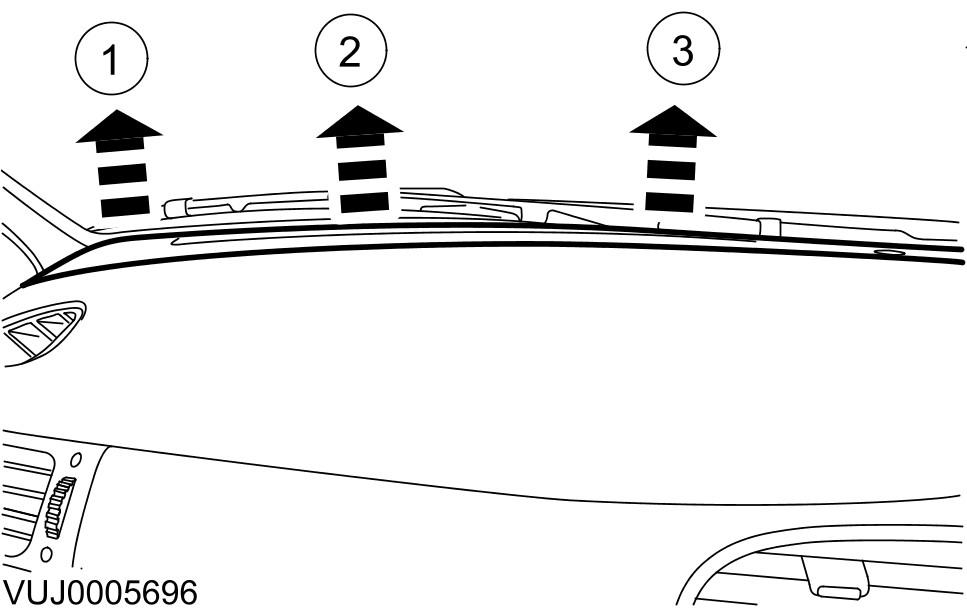

    GJ0003175Courtesy of JAGUAR CARS, INC.
    2. NOTE: Left-hand shown, right-hand similar.
  2. Detach the instrument panel defroster vent trim panel retaining clips in the order shown.

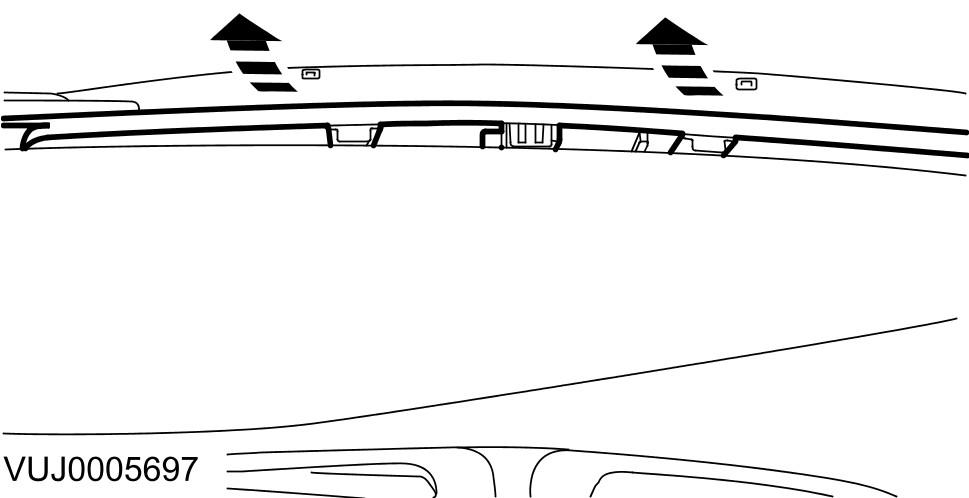

    GJ0003176Courtesy of JAGUAR CARS, INC.
  3. Detach the instrument panel defroster vent trim panel.

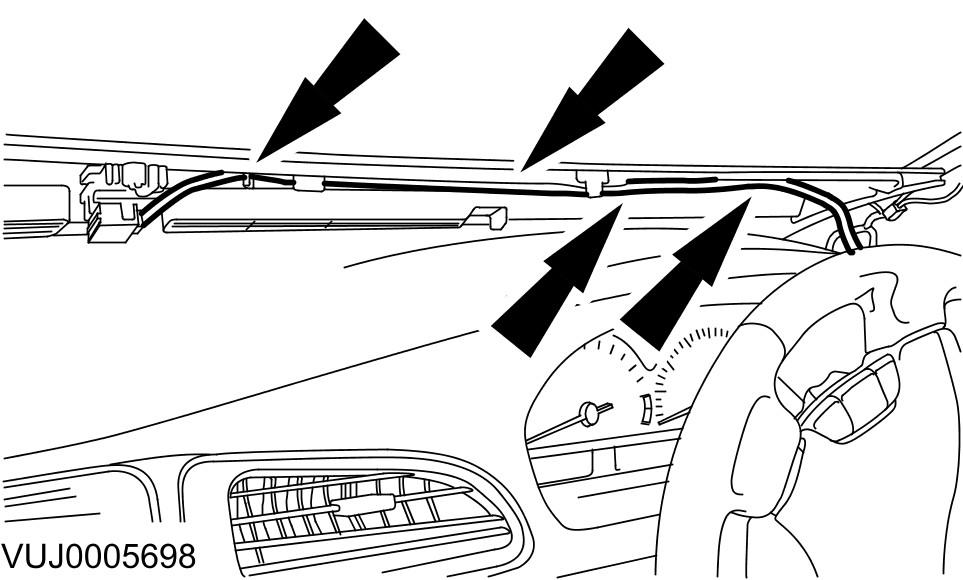

    GJ0003177Courtesy of JAGUAR CARS, INC.
  4. Detach the wiring harness from the instrument panel defroster vent trim panel.
    GJ0003178Courtesy of JAGUAR CARS, INC.
  5. Remove the instrument panel defroster vent trim panel.
    • Disconnect the electrical connector.
    GJ0003179Courtesy of JAGUAR CARS, INC.
    6. NOTE: Note the positions of the instrument panel insulators.
  6. Remove and discard the instrument panel insulators.
    GJ0003180Courtesy of JAGUAR CARS, INC.
  7. Remove the sunload sensor.
