2000 Jaguar XJRFACTORY OEM SERVICE PROCEDURE

Sunload Sensor - Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

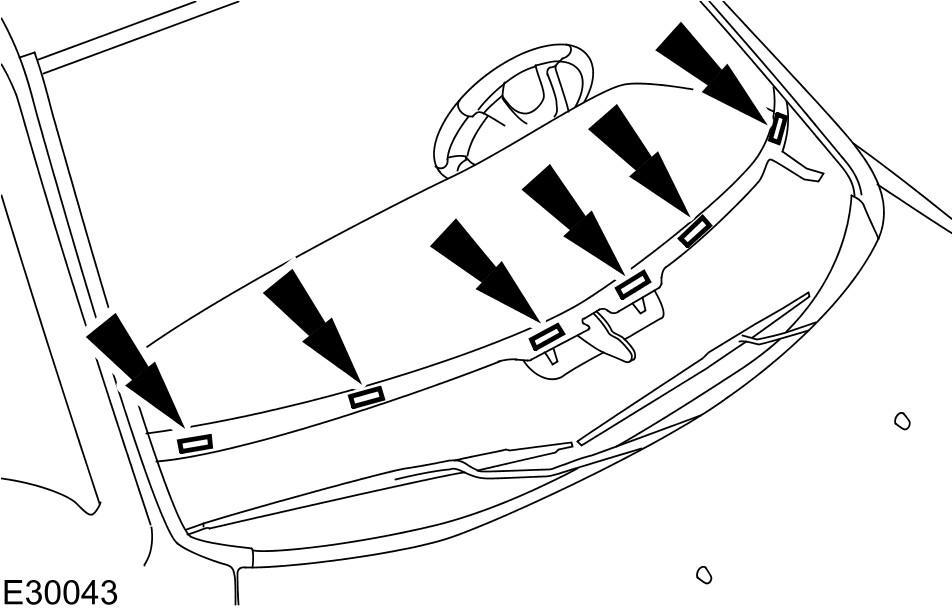

GJ0003179Courtesy of JAGUAR CARS, INC.
    CAUTION: Make sure all adhesive has been removed from the insulator mating surfaces.
  1. Install new instrument panel isolators into the positions noted during removal.
    GJ0003179Courtesy of JAGUAR CARS, INC.
  2. Using suitable tool, cut the insulator as shown.
    1. Make sure the instrument panel isolator is in the position noted during removal.
    2. Using suitable tool, cut the insulator as shown.

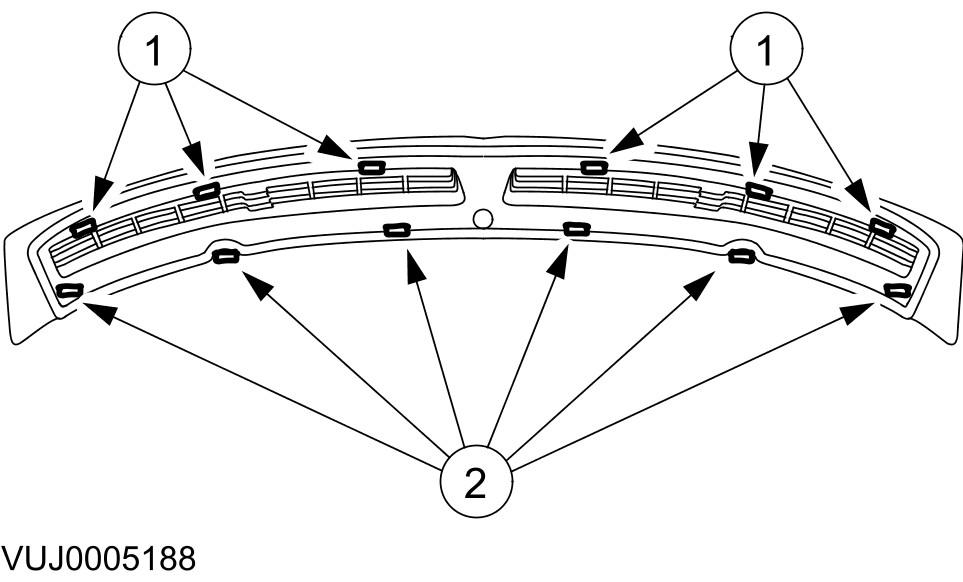

    GJ0003181Courtesy of JAGUAR CARS, INC.
  3. Make sure the instrument panel defroster vent trim panel rear retaining tangs are correctly located to the instrument panel defroster vent trim panel.
    1. Make sure the instrument panel defroster vent trim panel front retaining tangs are correctly located to the instrument panel defroster vent trim panel.
    2. Make sure the instrument panel defroster vent trim panel rear retaining tangs are correctly located to the instrument panel defroster vent trim panel.

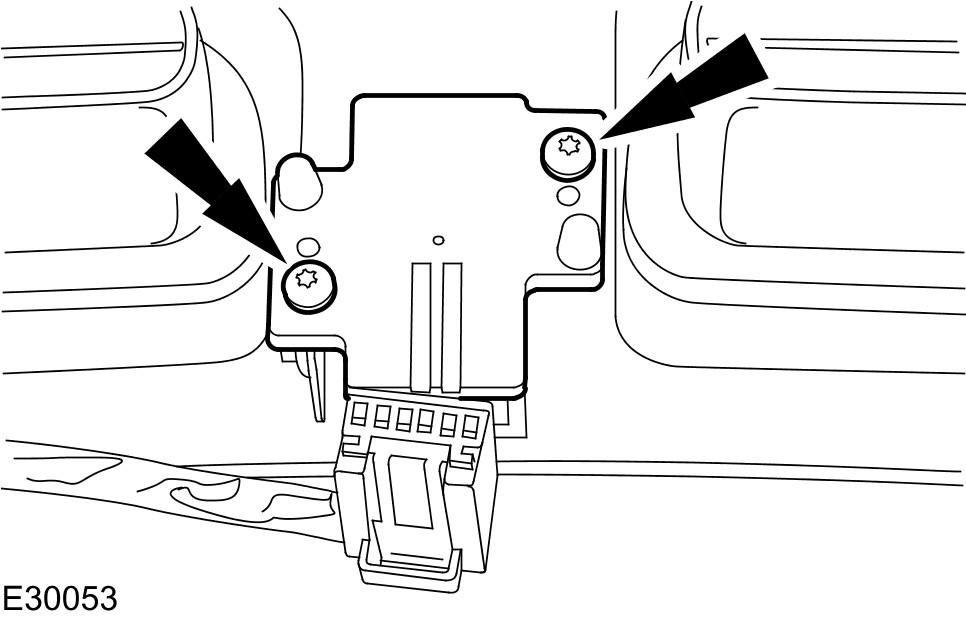

    GJ0003180Courtesy of JAGUAR CARS, INC.
  4. Install the new sunload sensor.

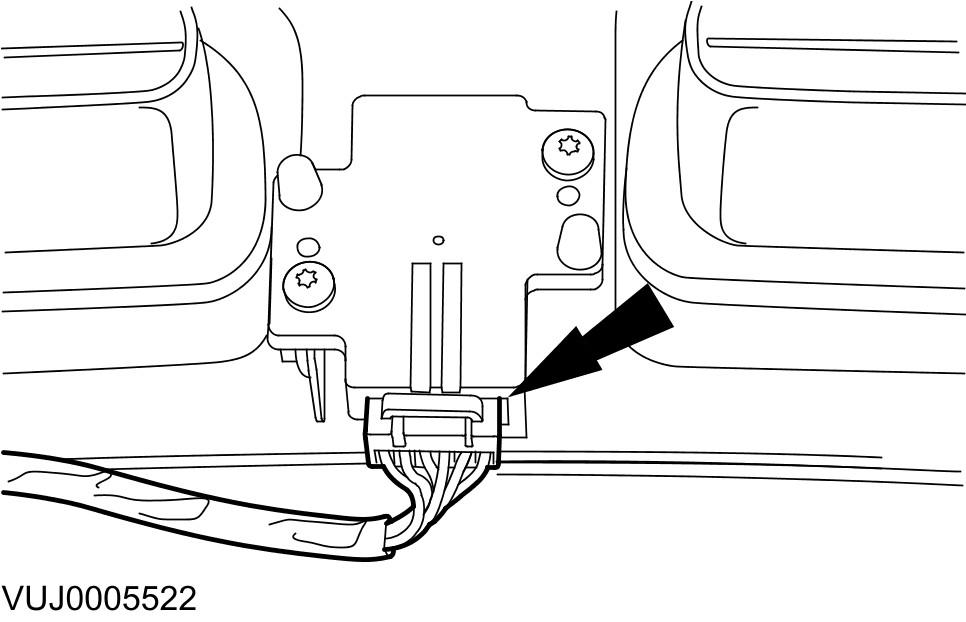

    GJ0003178Courtesy of JAGUAR CARS, INC.
  5. Install the instrument panel defroster vent trim panel.
    • Connect the electrical connector.

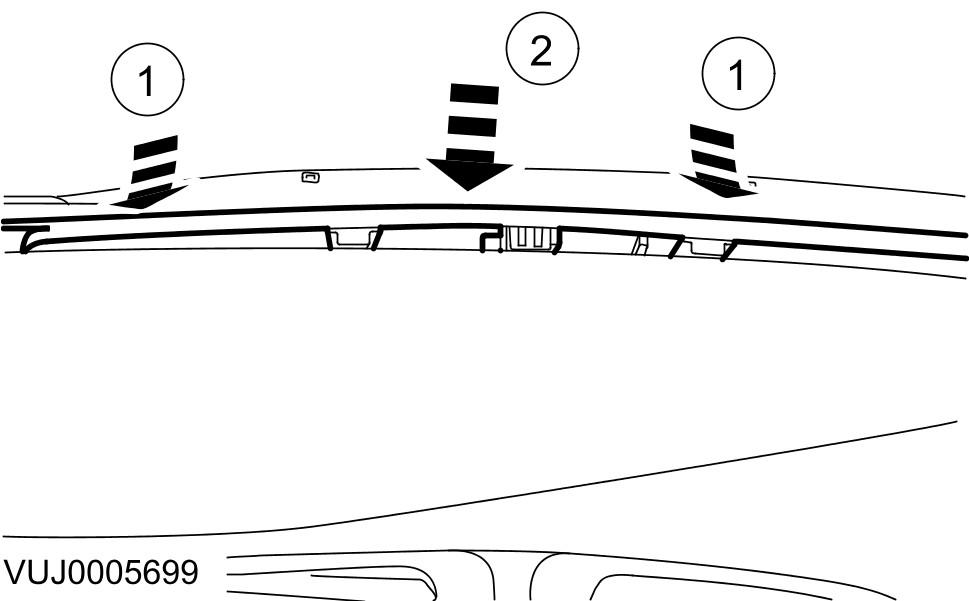

    GJ0003182Courtesy of JAGUAR CARS, INC.
  6. Attach the instrument panel defroster vent trim panel.
    1. Locate the instrument panel defroster vent trim panel front retaining tangs.
    2. Attach the instrument panel defroster vent trim panel.

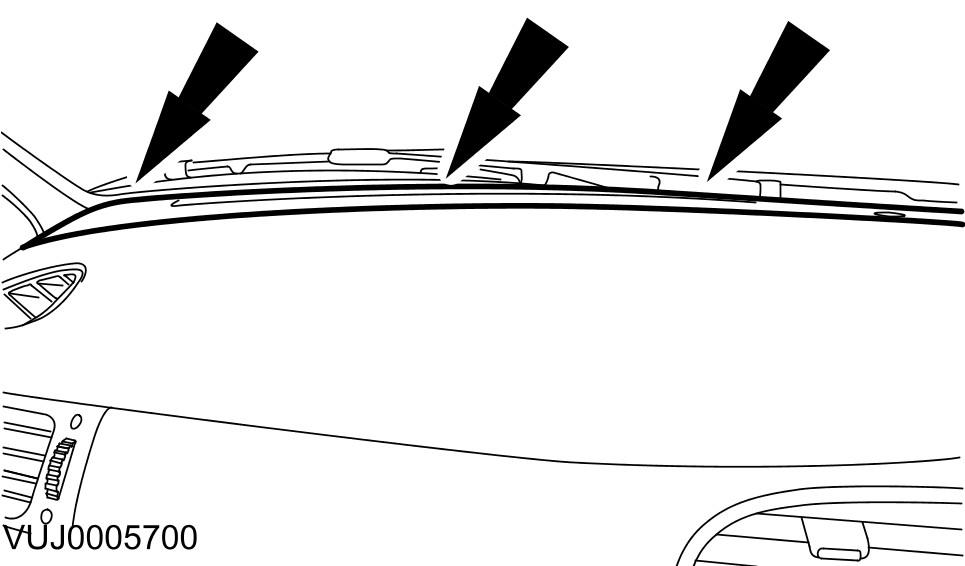

    GJ0003183Courtesy of JAGUAR CARS, INC.
    7. NOTE: Left-hand shown, right-hand similar.
  7. Attach the instrument panel defroster vent trim panel.
    • Locate the instrument panel defroster vent trim panel retaining clips.
  8. Install both A-pillar trim panels. Refer to Interior Trim and Ornamentation .
