2000 Jaguar XJRFACTORY OEM SERVICE PROCEDURE

In Vehicle Temperature Sensor - Removal and Installation: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles.

  1. Reposition the steering column to its maximum rearward position.
  2. Disconnect the battery ground cable. Refer to Battery, Mounting and Cables .

Left-hand drive vehicles.

  1. Remove the ignition lock cylinder. Refer to Steering Column .

All vehicles.

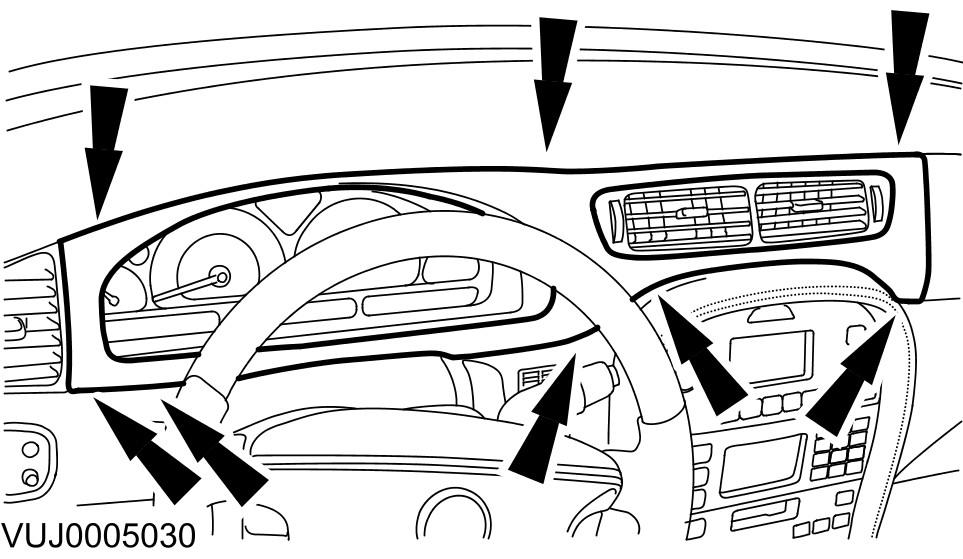

GJ0003157Courtesy of JAGUAR CARS, INC.
    CAUTION: Make sure damage does not occur to the instrument panel finish panel.
  1. Remove the instrument panel finish panel.

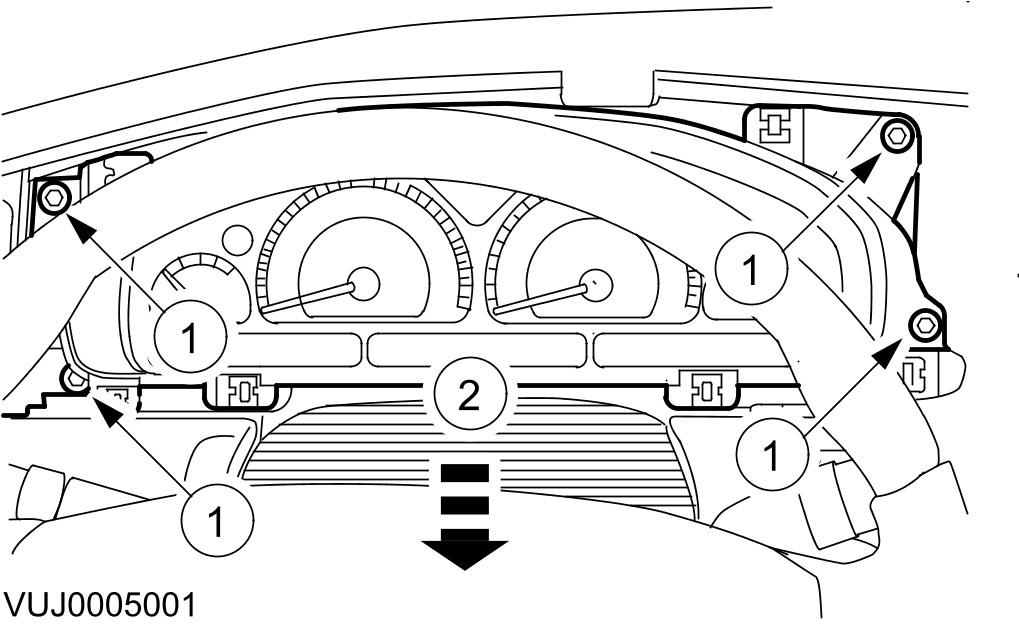

    GJ0003158Courtesy of JAGUAR CARS, INC.
  2. Remove the instrument cluster finish panel.
    1. Remove the retaining screws.
    2. Remove the instrument cluster finish panel.

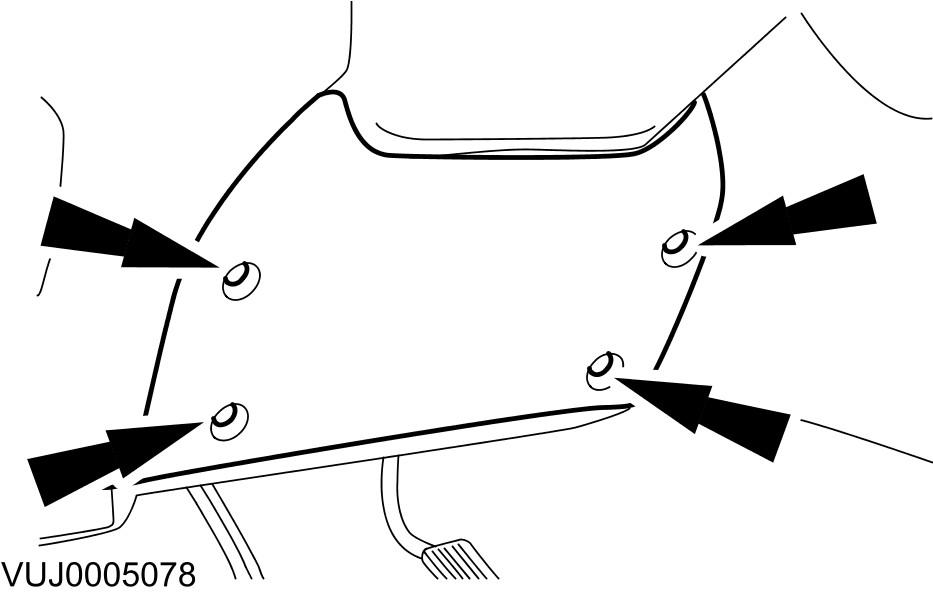

    GJ0003026Courtesy of JAGUAR CARS, INC.
  3. Remove the instrument panel lower trim panel.

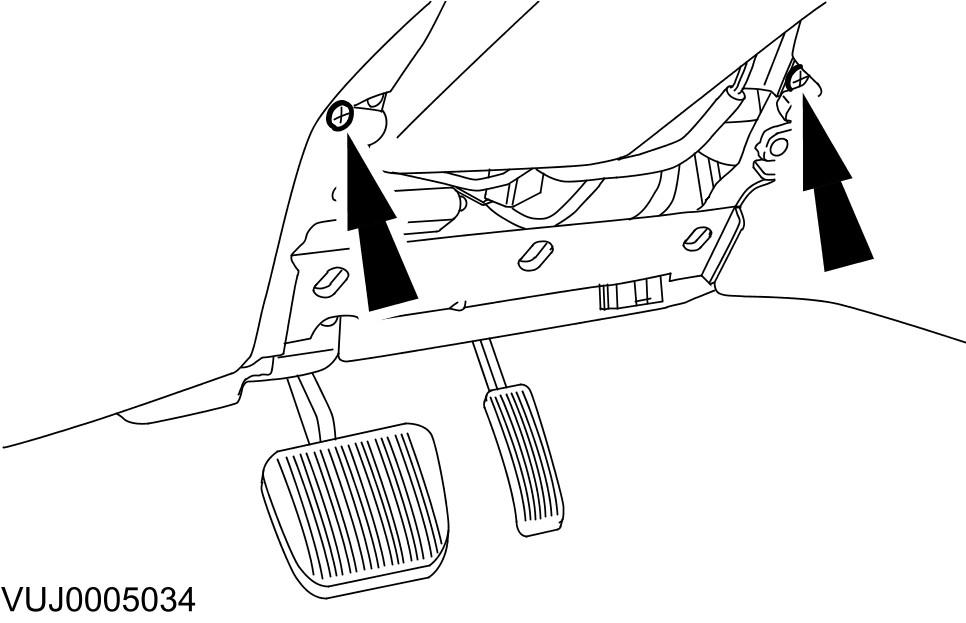

    GJ0003159Courtesy of JAGUAR CARS, INC.
  4. Remove the steering column finish panel retaining screws.
    GJ0003160Courtesy of JAGUAR CARS, INC.
  5. Remove the steering column finish panel.
    1. Remove the steering column finish panel retaining screws.
    2. Remove the steering column finish panel.

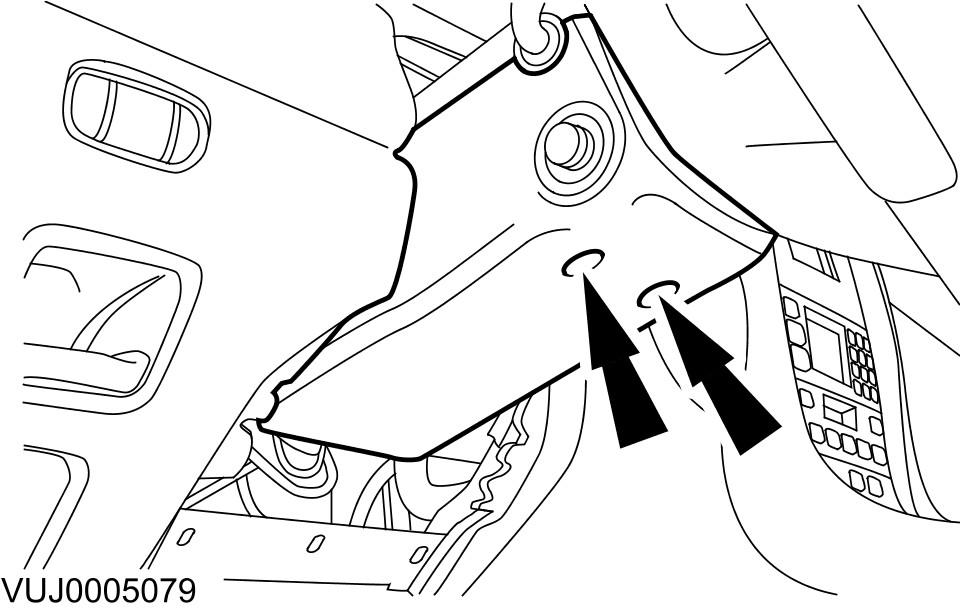

    GJ0003027Courtesy of JAGUAR CARS, INC.
  6. Detach the steering column lower shroud.

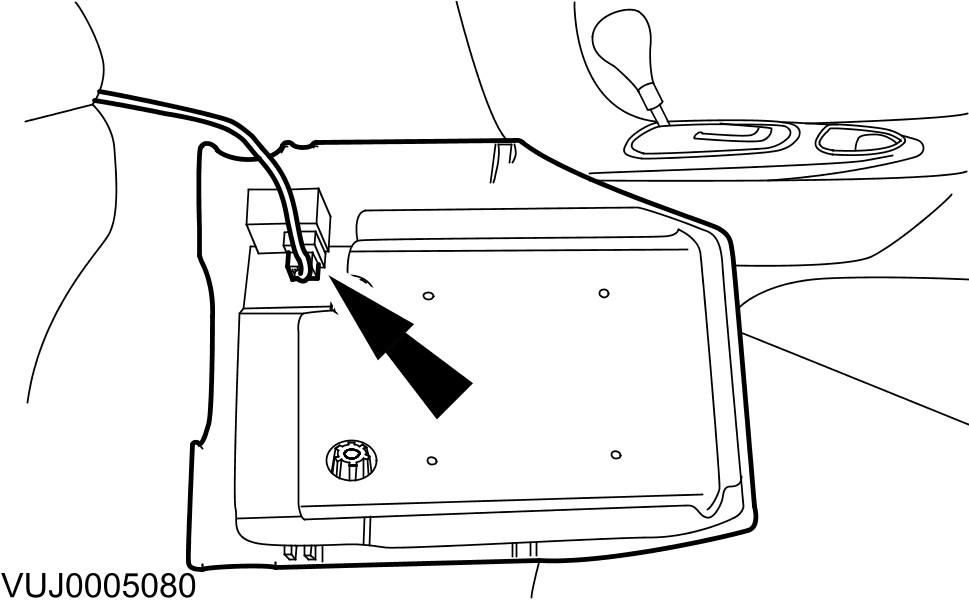

    GJ0003028Courtesy of JAGUAR CARS, INC.
  7. Remove the lower steering column lower shroud.

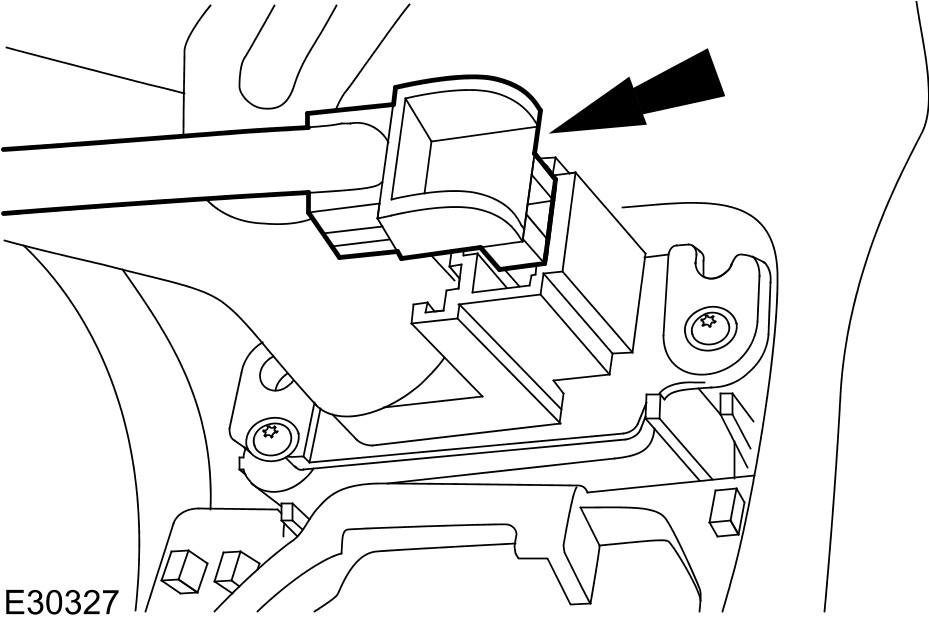

    GJ0003187Courtesy of JAGUAR CARS, INC.
  8. Disconnect the in-vehicle temperature sensor electrical connector.

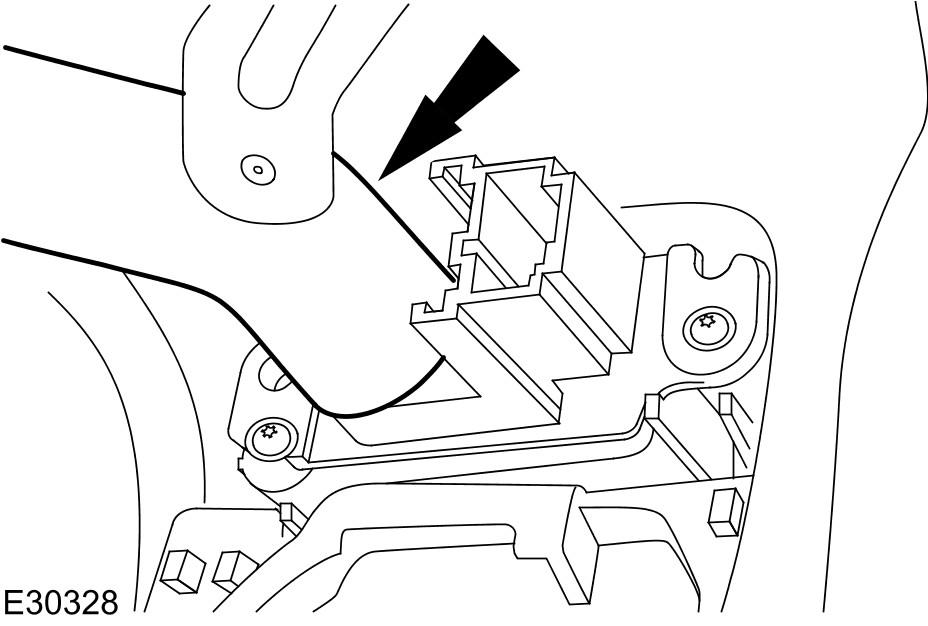

    GJ0003188Courtesy of JAGUAR CARS, INC.
  9. Disconnect the in-vehicle temperature sensor hose.

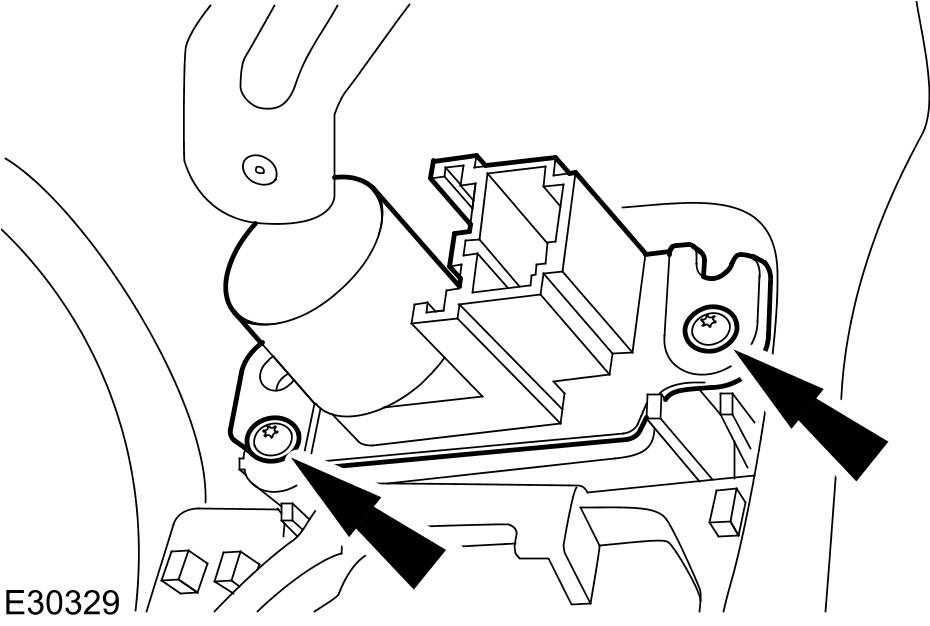

    GJ0003189Courtesy of JAGUAR CARS, INC.
  10. Remove the in-vehicle temperature sensor.
