2000 Jaguar XJRFACTORY OEM SERVICE PROCEDURE
Climate Control Assembly - Removal and Installation: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery ground cable. Refer to Battery Disconnect .
- Remove the instrument panel console. Refer to Instrument Panel Console
.

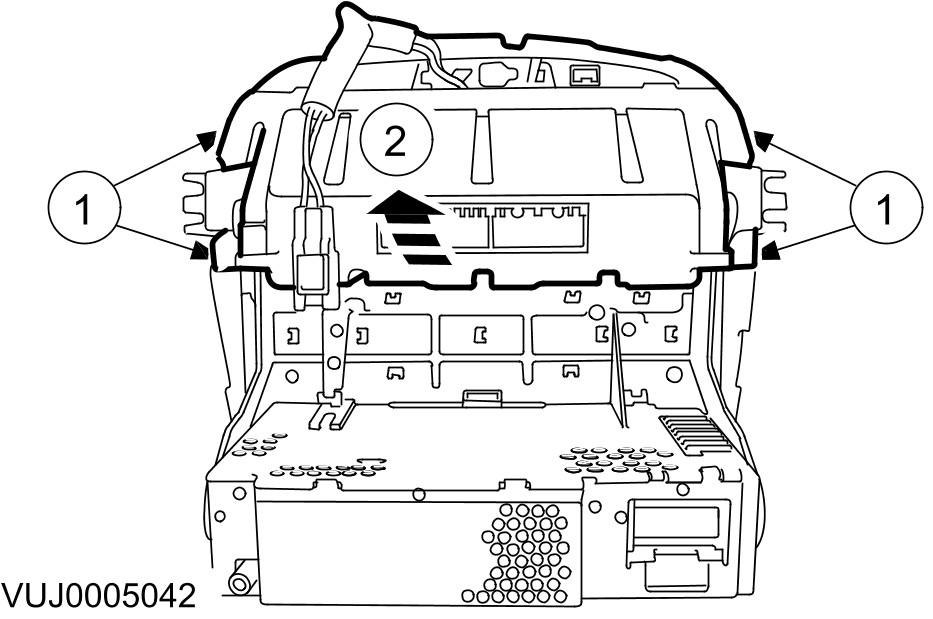

- Remove the climate control assembly.
- Remove the climate control assembly retaining screws.
- Remove the climate control assembly.
