2000 Jaguar XJRFACTORY OEM SERVICE PROCEDURE
Speed Control Module - Removal and Installation: Installation
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

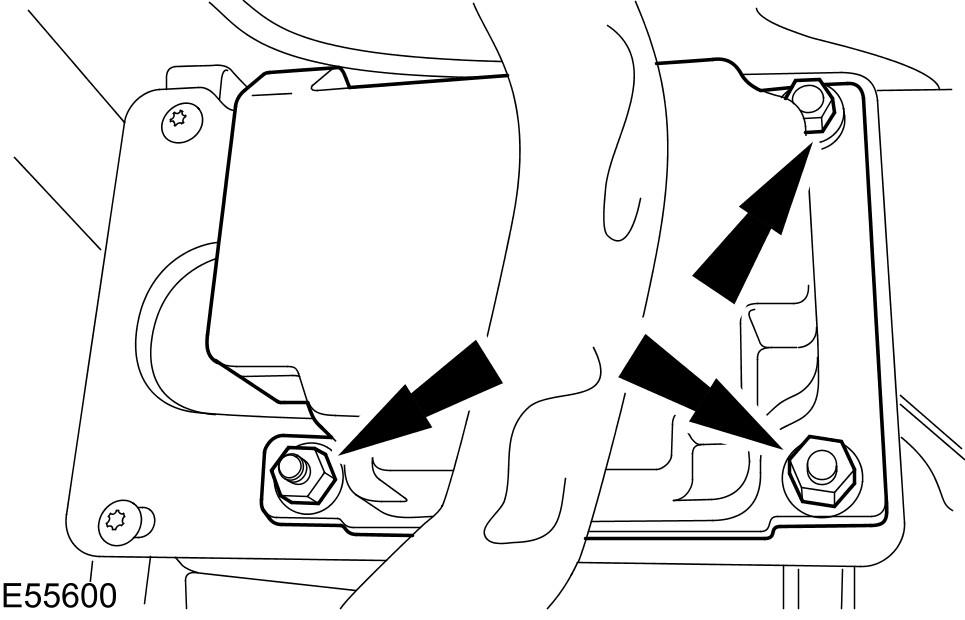

- Install the speed control module.
- Tighten to 5 Nm.

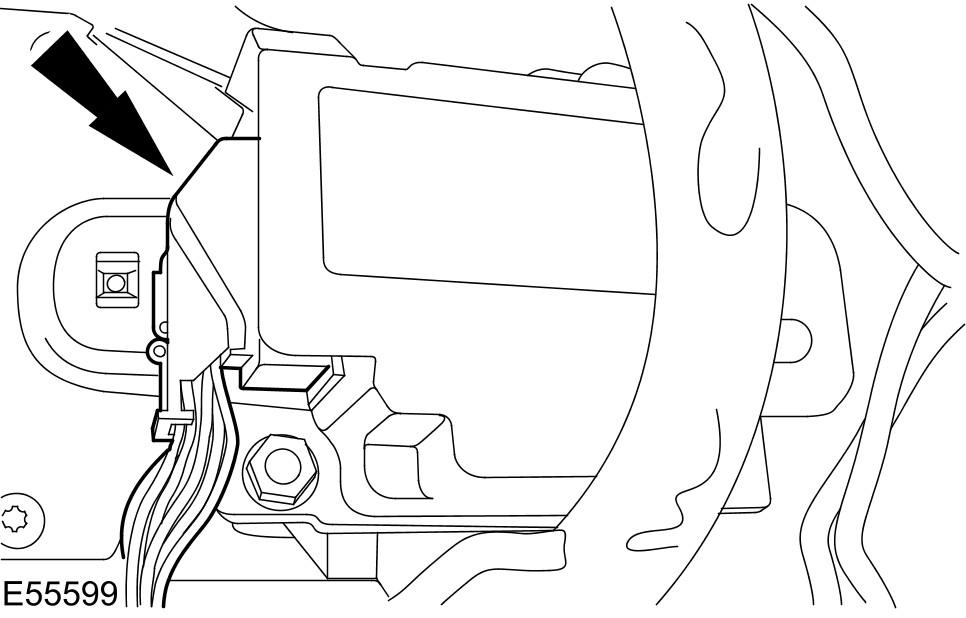

- Connect the speed control module electrical connector.
- Install the driver side instrument panel lower trim.
- Connect the battery ground cable. Refer to Battery Connect .
- Using the approved Jaguar diagnostic system configure the speed control module.
