1997 Jaguar XK8 2D ConvertibleFACTORY OEM SERVICE PROCEDURE
Ignition Module: Removal
- Disconnect battery ground cable.
- Open the driver's door, or both doors if necessary, to allow the side glass to drop. Ensure that the doors remain open until after the battery has been disconnected.
- Remove the luggage compartment floor panel (when standard size spare wheel is supplied) and the battery cover.
- Remove the nut from the ground stud.

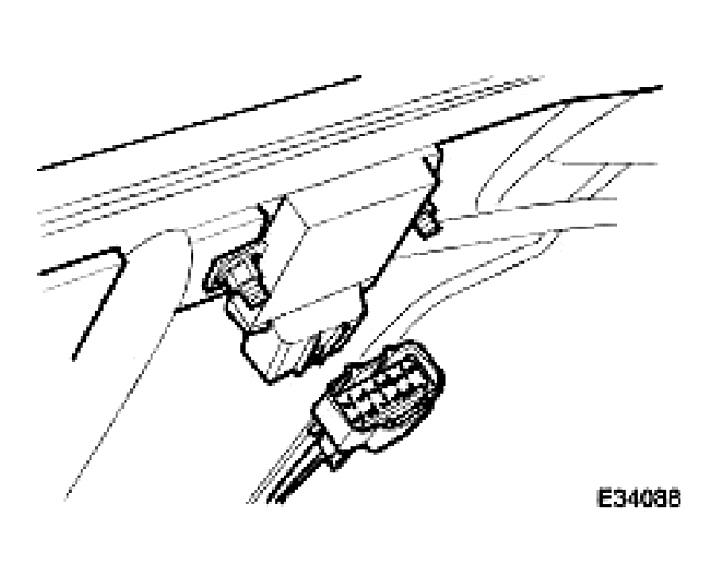

- Disconnect connector from ignition control module.

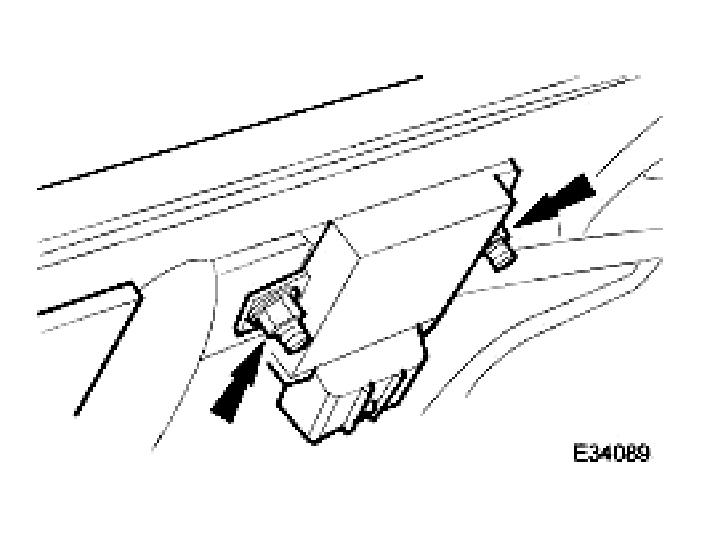

- Remove fixings securing module.
- Remove module
