1989 Jaguar XJ6 BaseFACTORY OEM SERVICE PROCEDURE

Model Coverage

1989 MODEL COVERAGE

Model

Body

Engine

Engine ID

Fuel System

Ign. System

XJ6

3.6L

EFI

⁽¹⁾

XJS

5.3L

EFI

⁽²⁾ Magnetic

⁽¹⁾	Electronic. Timing is computer controlled.

⁽²⁾	Some models are equipped with digital ignition. Digital ignition is computer controlled.

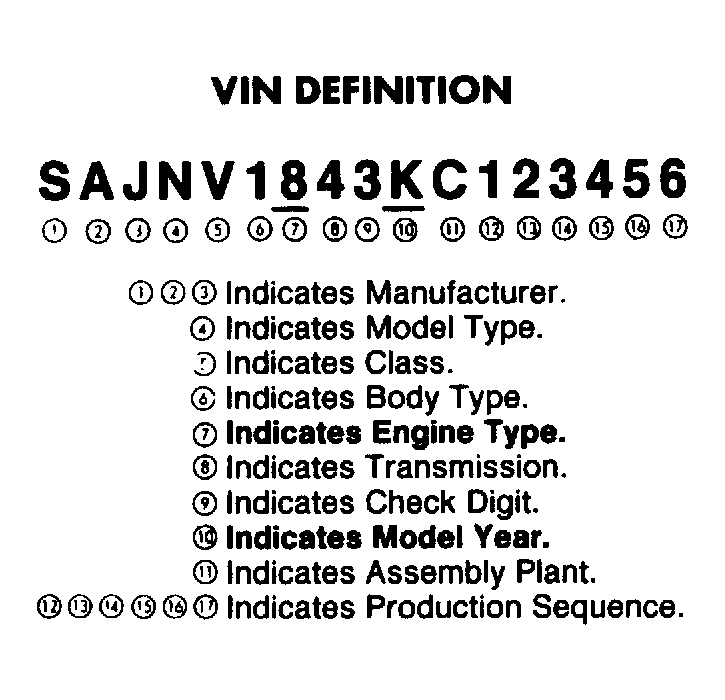

Fig 1: VIN Definition

Courtesy of JAGUAR CARS, INC.
