HOMESERVICE MANUALSISUZU2006ASCENDER S, 5.3 M, 4WDREPAIR AND DIAGNOSISEXTERNAL PAGESDIFFERENT CARSECTION 368 (SUNROOF SYSTEM)REPAIR INSTRUCTIONSSUNROOF MODULE ASSEMBLY REPLACEMENTINSTALLATION PROCEDURE

2006 Isuzu Ascender S, 5.3 M, 4WD

Installation Procedure

2006 Isuzu Ascender S, 5.3 M, 4WDSECTION Installation Procedure

WARNING: This page is about a different car, the 2008 Isuzu Ascender, 2008 GMC Envoy, and 2008 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the sunroof sunshade panel to the sunroof module assembly. Refer to Sunroof Sunshade Replacement .
Install the sunroof window to the sunroof module assembly. Refer to Sunroof Window Replacement .
Install the sunroof motor/actuator to the sunroof module assembly. Refer to Sunroof Motor/Actuator Replacement .

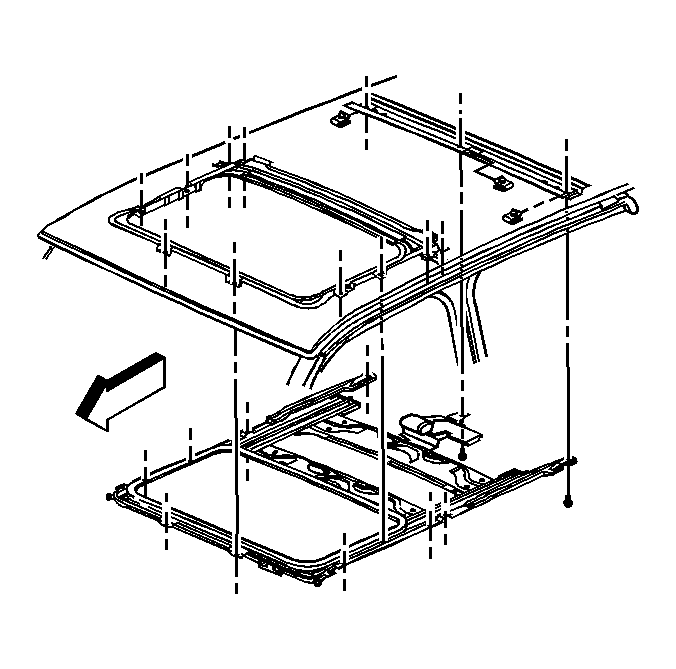

Fig 1: Identifying Sunroof Module Assembly

Courtesy of GENERAL MOTORS CORP.

Position the sunroof module assembly to the vehicle with an assistant.

NOTE: Refer to Fastener Notice .

Install the bolts that retain the sunroof module assembly to the roof panel.
Tighten: Tighten the bolts to 10 N.m (7 lb ft).
Connect the drain hoses to the sunroof module assembly. Refer to the following procedures:
- Sunroof Housing Front Drain Hose Replacement
- Sunroof Housing Rear Drain Hose Replacement

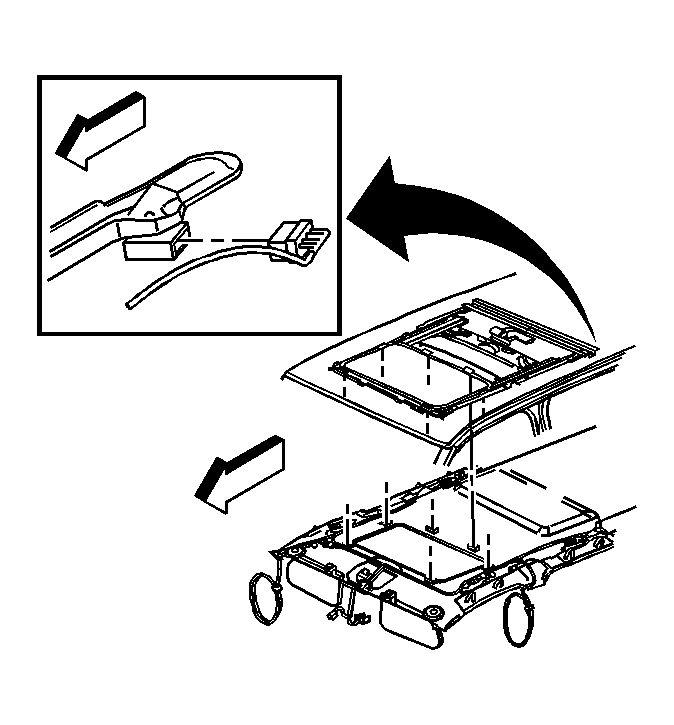

Fig 2: View Of Sunroof Assembly Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the sunroof harness electrical connector.
Install the headliner. Refer to Headlining Trim Panel Replacement .
