2004 Isuzu Axiom Base, RWDFACTORY OEM SERVICE PROCEDURE
Neutral Start Switch (Mode Switch): Installation
To install, follow the removal steps in the reverse order, noting the following points;
If a engine starts at any selector position except "N" or "P", the neutral start switch (mode switch) should be adjusted.
- Loosen the neutral start switch bolt and set the shift selector to the "N" range.

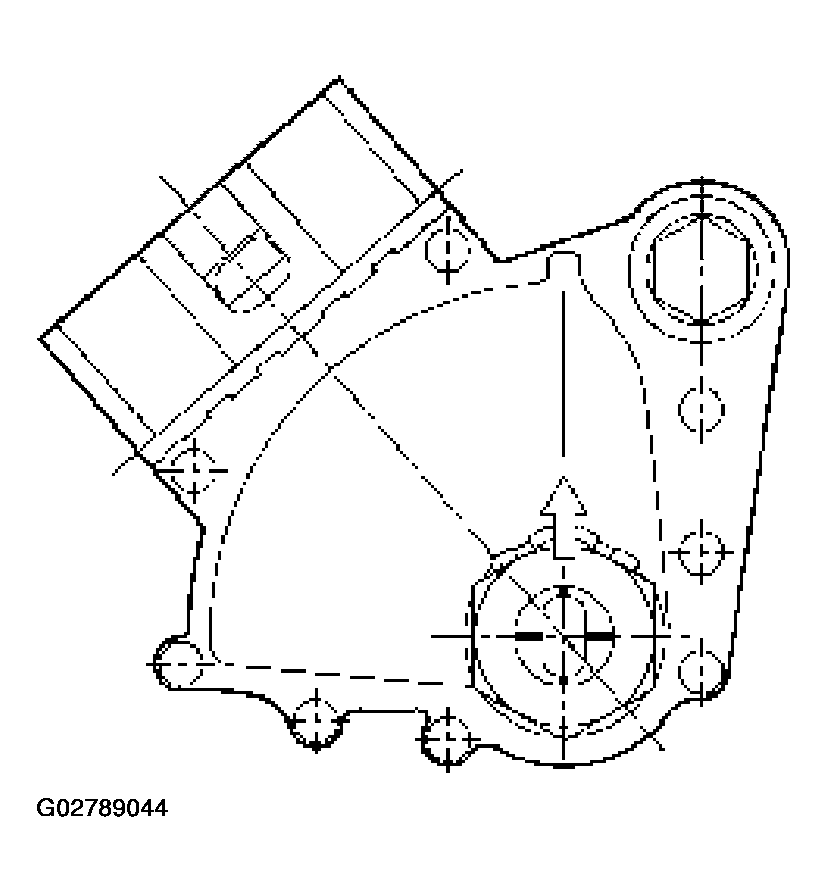

- Align the groove and neutral basic line.
- Hold in position and tighten the bolt and nut.
Torque:
- Nut - 7 N.m (61 lb in)
- Bolt - 13 N.m (113 lb in)
- Lock the nut with the lock washer tubs at two points.
