2004 Isuzu Axiom Base, RWDFACTORY OEM SERVICE PROCEDURE
ATF Temperature Sensor: Inspection

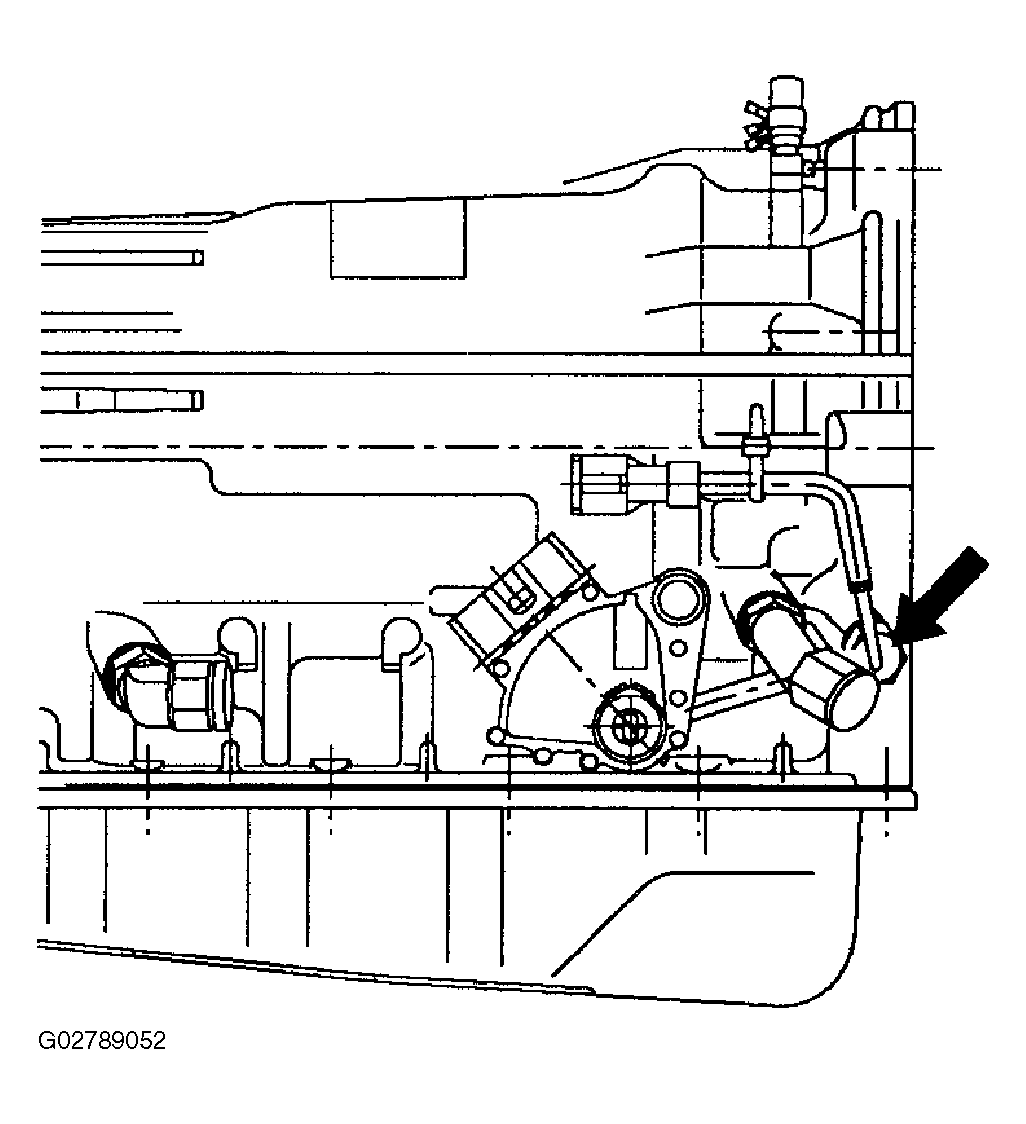

- Disconnect the front side ATF cooler pipe from the elbow and remove the elbow.
- Remove the ATF temperature sensor from the transmission case.
- Place the ATF temperature sensor in a container of ATF.
- Measure the resistance between each terminals, while warming ATF.
Resistance:Β 0.5 - 30 k Ξ© (at 0Β°C - 120Β°C)
- If either of the measured values exceeds the specified value, replace the ATF temperature sensor.
Torque:Β 15 N.m (11 lb ft)
