Test Description

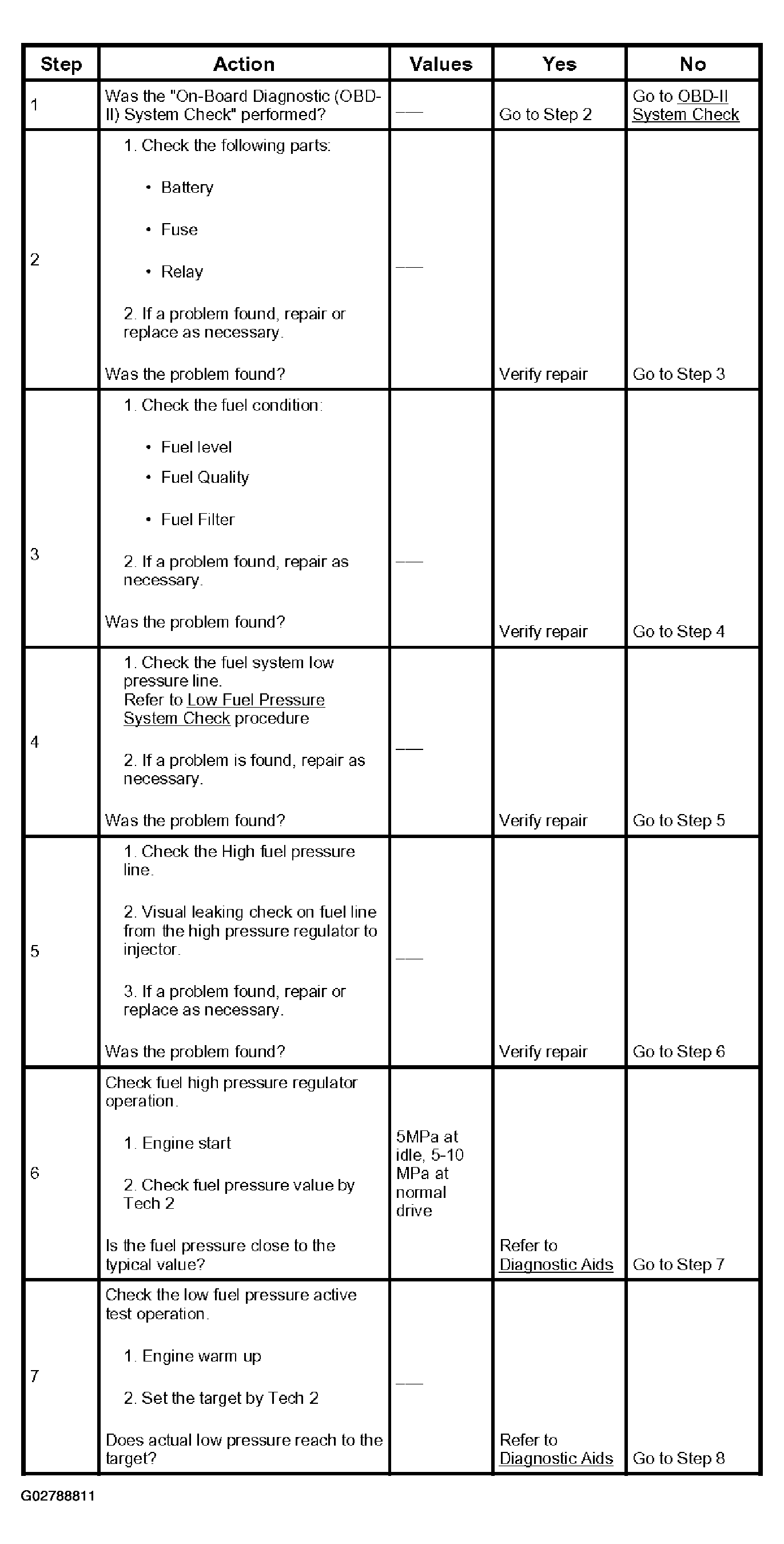

Number(s) below refer to the step number(s) on the Diagnostic Chart .
- 3. When checking the fuel quality, it exchanges to regular fuel. And start the engine.
- 4, 5. The fuel system has High Pressure Line and Low Pressure Line.
- 17. Check the actual fuel pressure does follow desired fuel pressure.
