Test Description

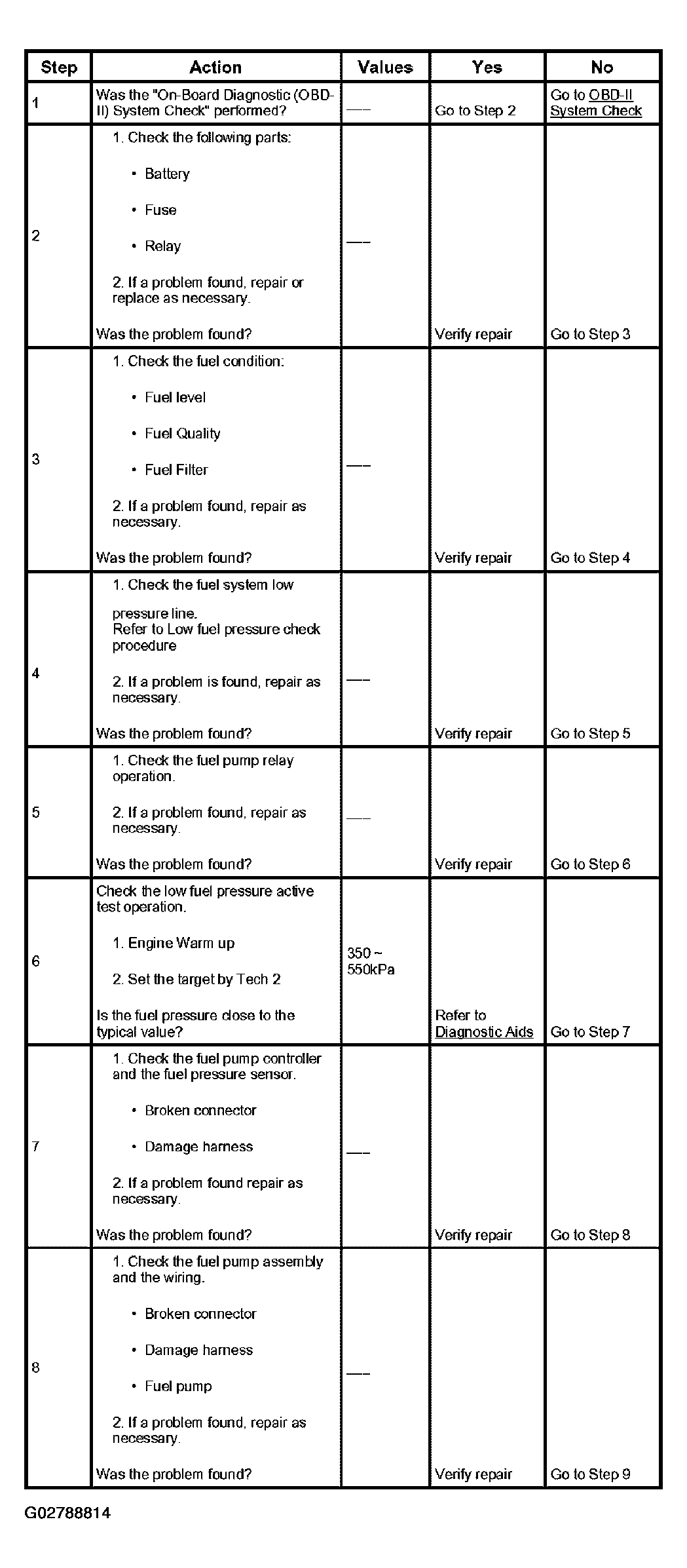

Number(s) below refer to the step number(s) on the Diagnostic Chart .
- 2. When checking The fuel quality, it exchanges to regular fuel. And start the engine.
- 11. Inspect the following sensor and system. And even when DTC is not detected, check for each DTC.
- Mass Air Flow (MAP) sensor, Engine Coolant Temperature (ECT) sensor, Crankshaft Position (CKP) sensor, Camshaft Position (CMP) sensor, Fuel system (High, Low), Ignition system.
- 14. Check the actual fuel pressure does follow desired fuel pressure.
- 15. Check the operation of fuel pump electrical and mechanical. And Check the fuel pump controller.
