2004 Isuzu Axiom Base, 4WDFACTORY OEM SERVICE PROCEDURE
Removal Procedure
- Disconnect the negative battery cable.
- Block The wheels.

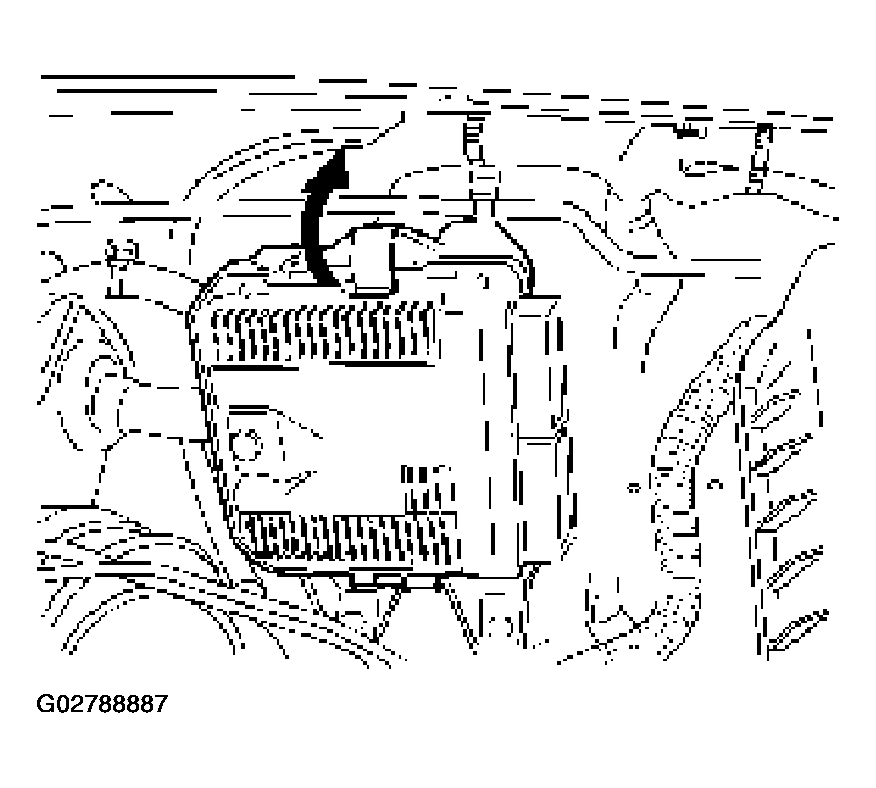

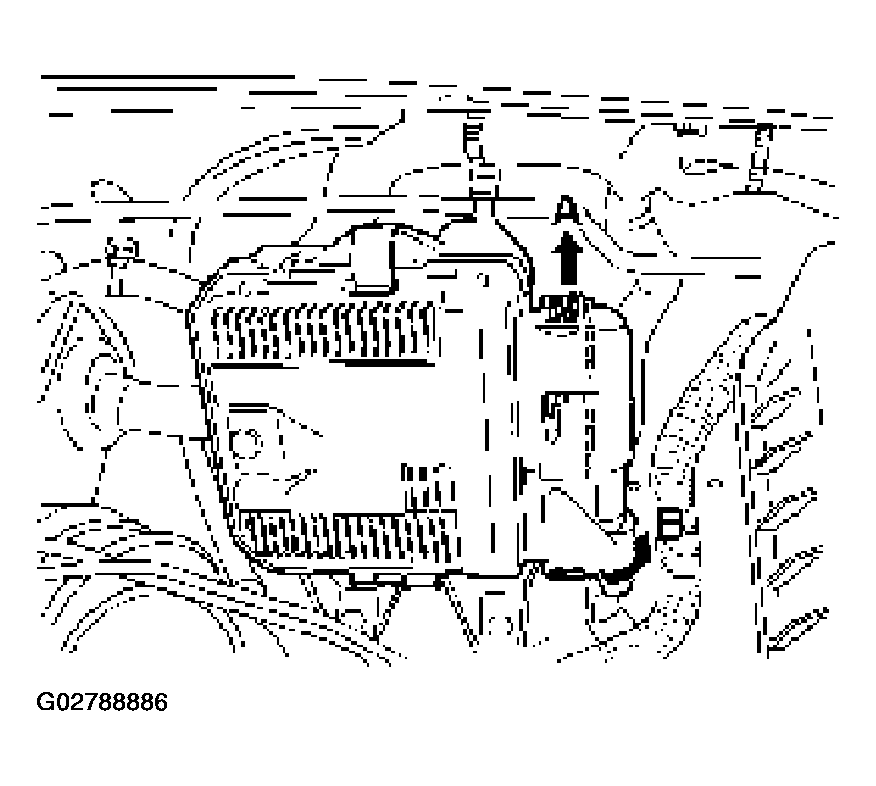

- Pull The "A" slider and lift the "B" lever.
- Disconnect the ECM electrical connectors.
- After removing the clip which fixes the ECM to the bracket, remove ECM.
