2004 Isuzu Axiom Base, 4WDFACTORY OEM SERVICE PROCEDURE

Ignition Coil: Removal

Disconnect battery ground cable.
Ignition coil connector and ignition coil.
- Disconnect three connector from ignition coil.
- Remove harness bracket bolt on cylinder head cover.
- Remove fixing bolts on ignition coil.

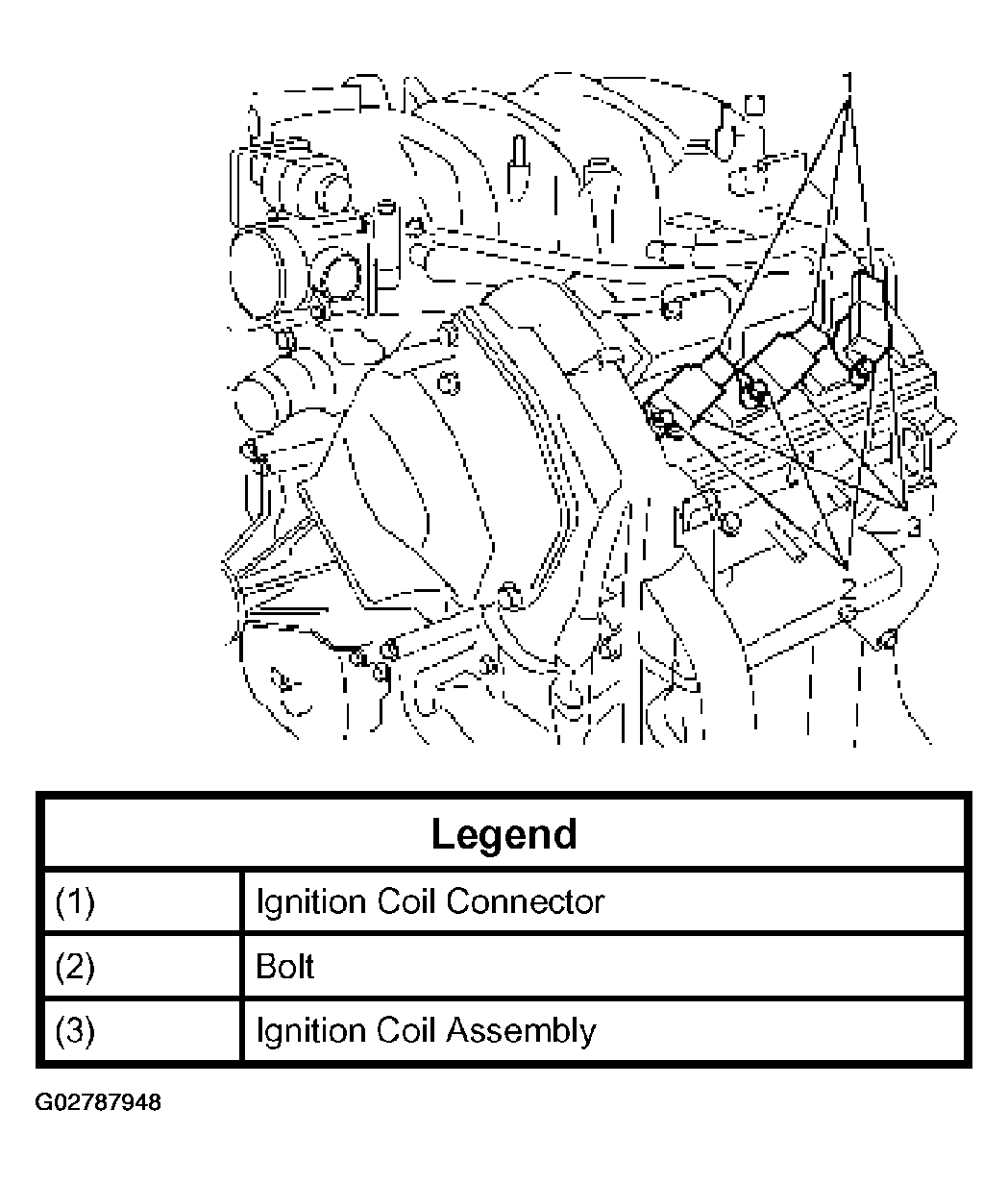

Fig 1: Removing Fixing Bolts On Ignition Coil
Courtesy of ISUZU MOTOR CO.
