2004 Isuzu Ascender 2WD L6-4.2LFACTORY OEM SERVICE PROCEDURE
Reaction Gear Set Removal
Reaction Gear Set Removal
Important: The retainer must be replaced.

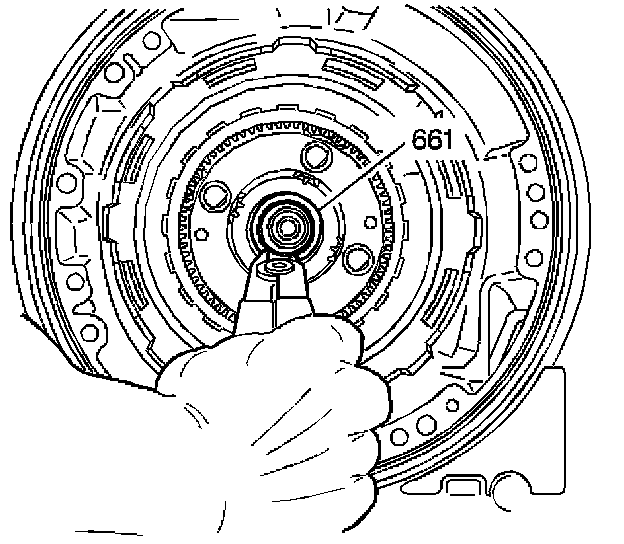

1. Use snap ring pliers remove the output shaft to input carrier retainer (661).
Important: The carrier assembly can be a 4 or 5 pinion design depending on model.

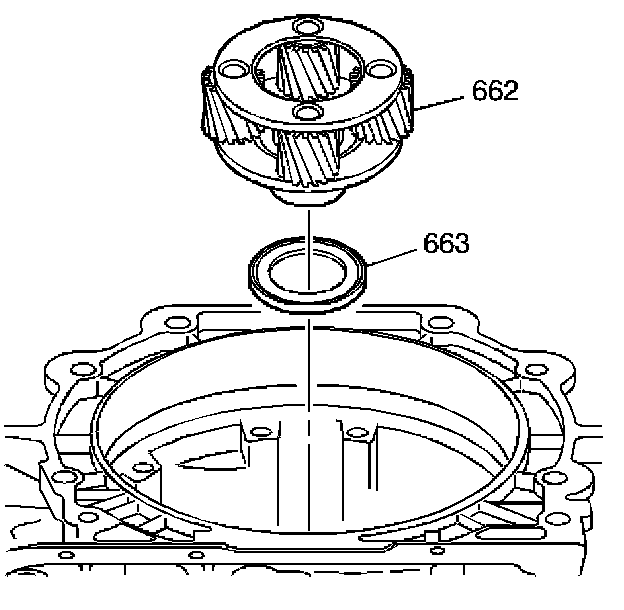

2. Remove the input carrier assembly (662) and remove the bearing assembly (663).

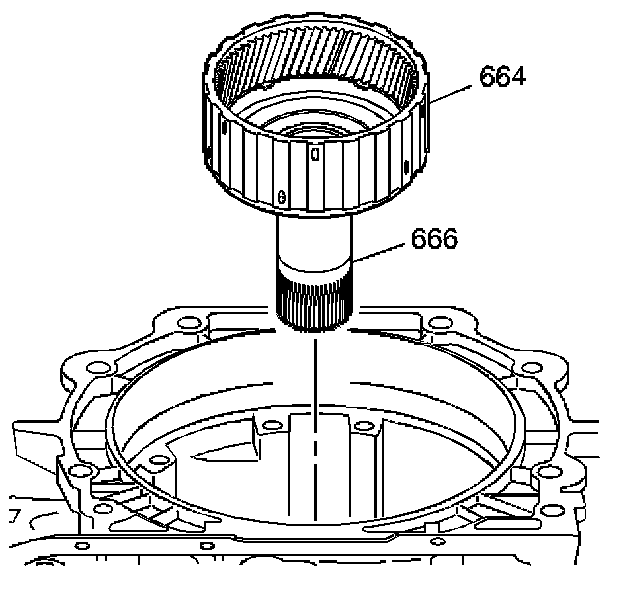

3. Remove the input internal gear (664) and the reaction carrier shaft assembly (666).

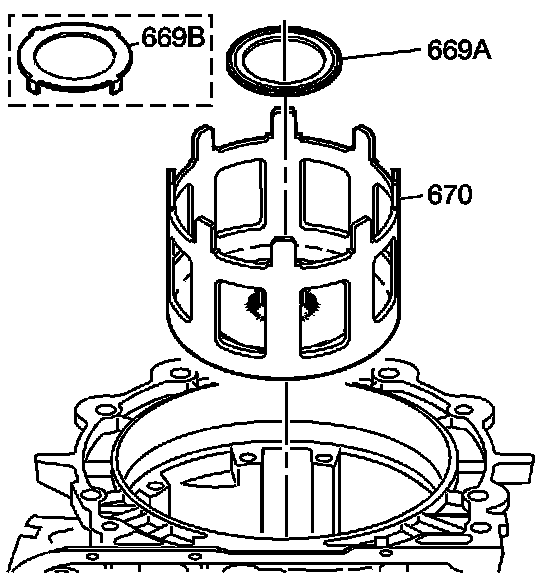

4. Remove the thrust washer (669a or 669b) and the reaction sun shell (670).
Important: The retainer must be replaced.
1. Use snap ring pliers remove the output shaft to input carrier retainer (661).
Important: The carrier assembly can be a 4 or 5 pinion design depending on model.
2. Remove the input carrier assembly (662) and remove the bearing assembly (663).
3. Remove the input internal gear (664) and the reaction carrier shaft assembly (666).
4. Remove the thrust washer (669a or 669b) and the reaction sun shell (670).
