2004 Isuzu Ascender 2WD L6-4.2LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Service and Repair

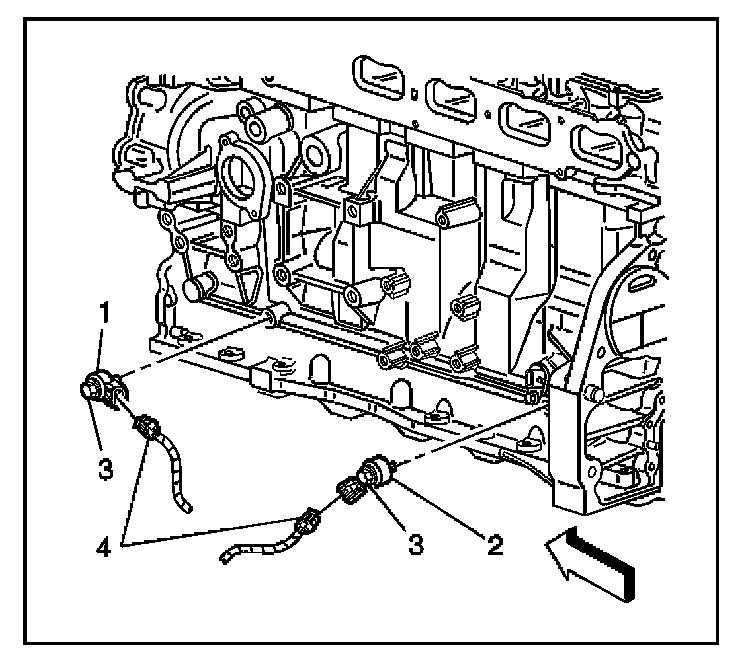

Knock Sensor (KS) Replacement
Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the knock sensor harness connector (4).
3. Remove the knock sensor retaining bolt (3).
4. Remove the appropriate knock sensor (1 or 2).
Installation Procedure
1. Install the knock sensor (1 or 2) and the bolt (3).
Tighten the sensor to .............................25 N.m (18 lb ft).
2. Connect the knock sensor harness connector (4).
3. Lower the vehicle.
Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the knock sensor harness connector (4).
3. Remove the knock sensor retaining bolt (3).
4. Remove the appropriate knock sensor (1 or 2).
Installation Procedure
1. Install the knock sensor (1 or 2) and the bolt (3).
Tighten the sensor to .............................25 N.m (18 lb ft).
2. Connect the knock sensor harness connector (4).
3. Lower the vehicle.
