2004 Isuzu Ascender 2WD L6-4.2LFACTORY OEM SERVICE PROCEDURE
Module Rear Body Control Replacement - Endgate
Module Rear Body Control Replacement - Endgate
Removal Procedure
1. Remove the trim panel from the end gate.

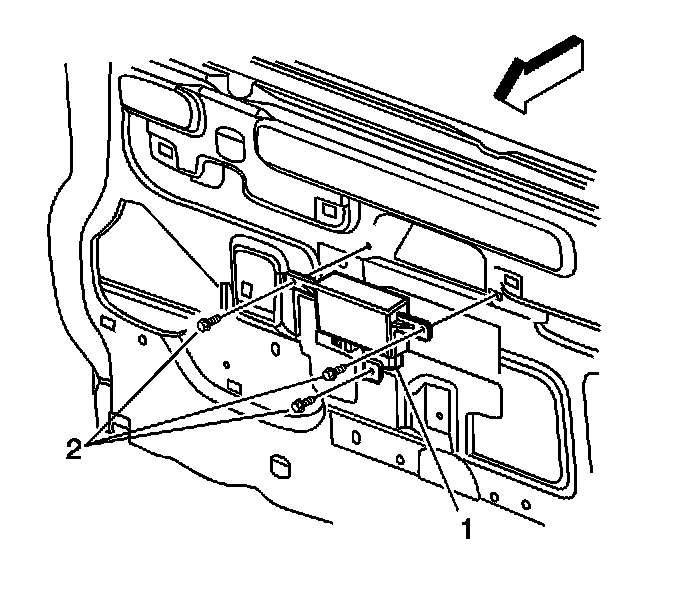

2. Remove the screws (2) retaining the rear body control module (BCM) (1) to the end gate.
3. Disconnect the electrical connectors from the rear BCM.
4. Remove the module from the vehicle.
Installation Procedure
1. Install the rear BCM (1) to the end gate.
2. Connect the electrical connectors to the module.
Notice: Refer to Fastener Notice in Service Precautions.
3. Install the screws (2) retaining the rear BCM to the end gate.
Tighten the rear BCM screws to 2.5 N.m (22 lb in).
4. Install the trim panel to the end gate.
