2004 Isuzu Ascender 2WD L6-4.2LFACTORY OEM SERVICE PROCEDURE
Engine Control Module
Powertrain Control Module (PCM) - C1:

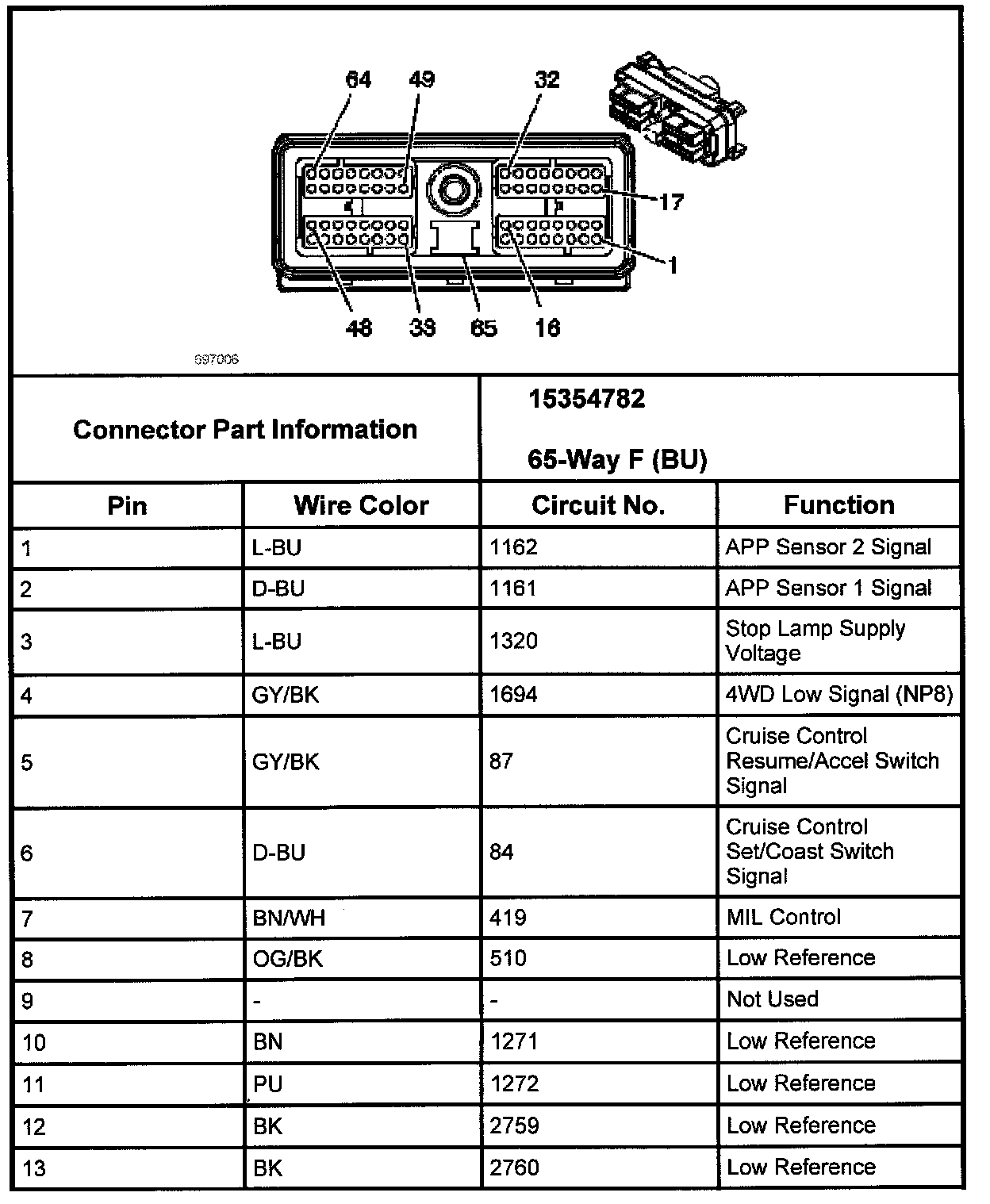

PCM C1 (Pin 1-13):

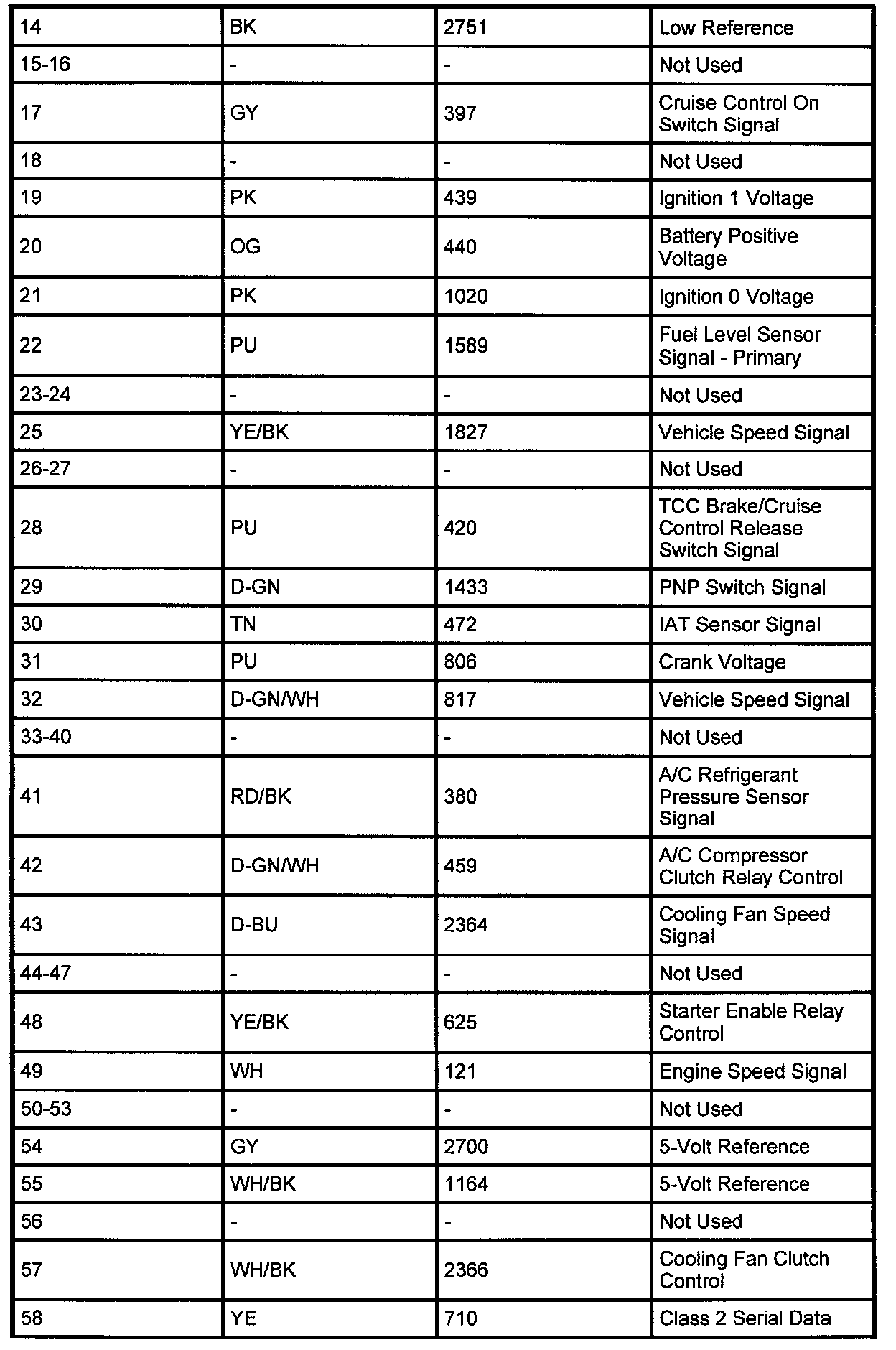

PCM C1 (Pin 14-58):

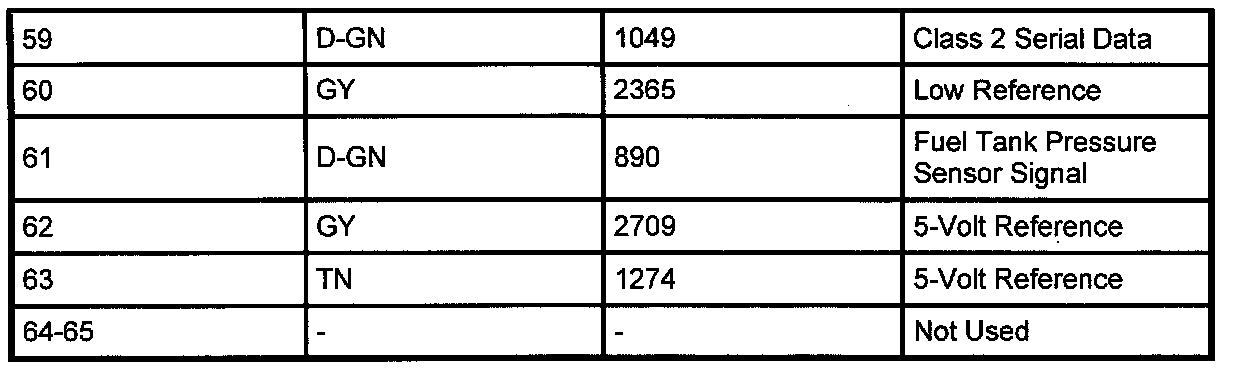

PCM C1 (Pin 59-65):

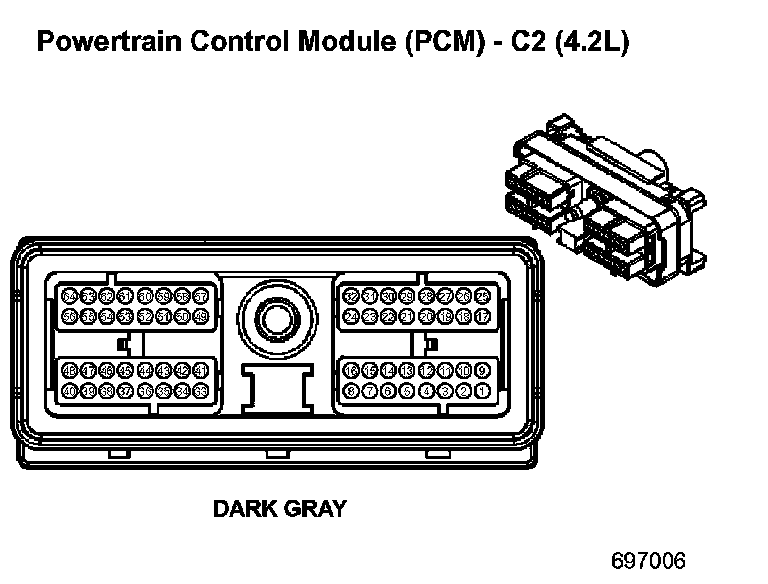

Powertrain Control Module (PCM) - C2:

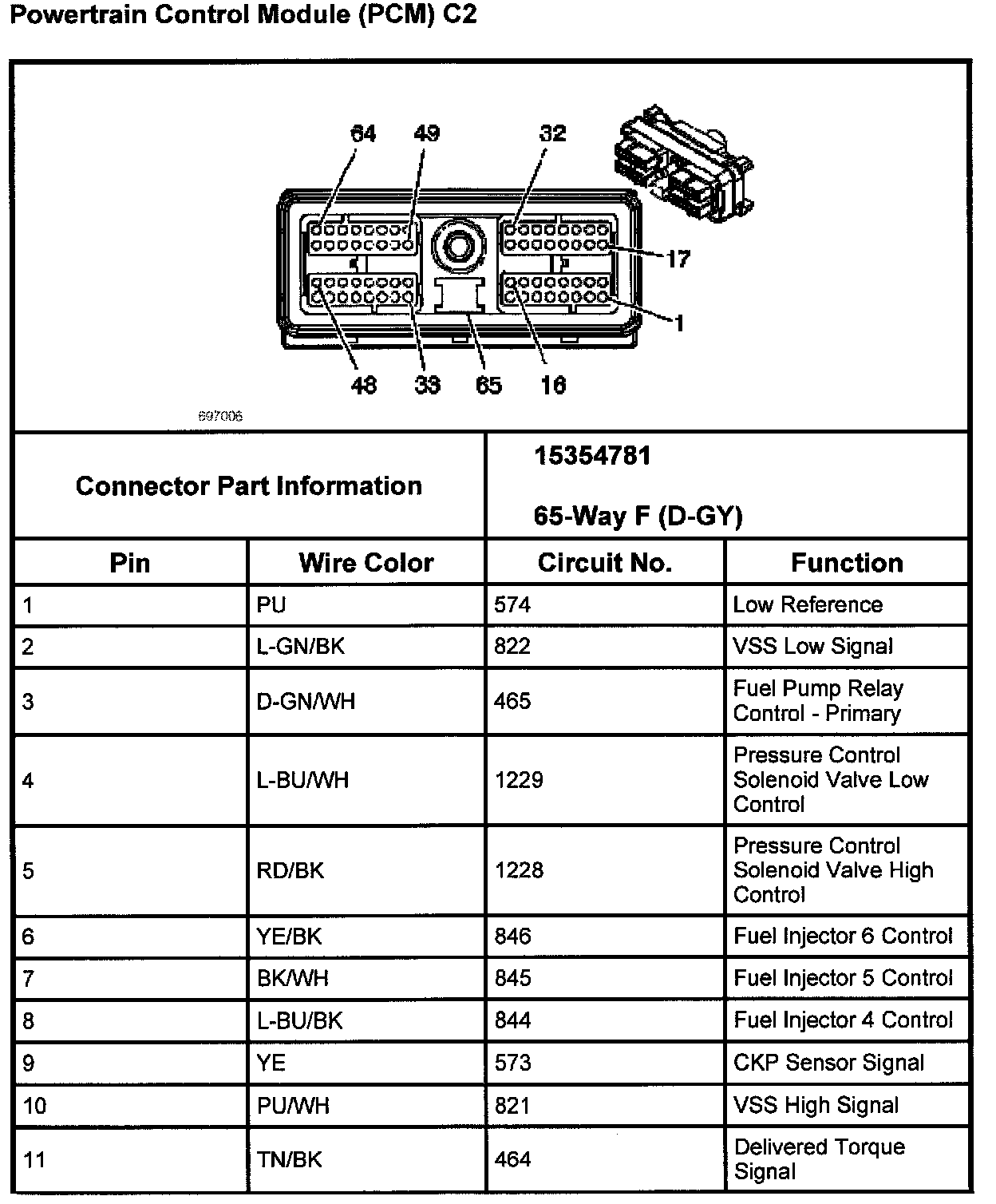

PCM C2 (Pin 1-11):
PCM C2 (Pin 12-37):

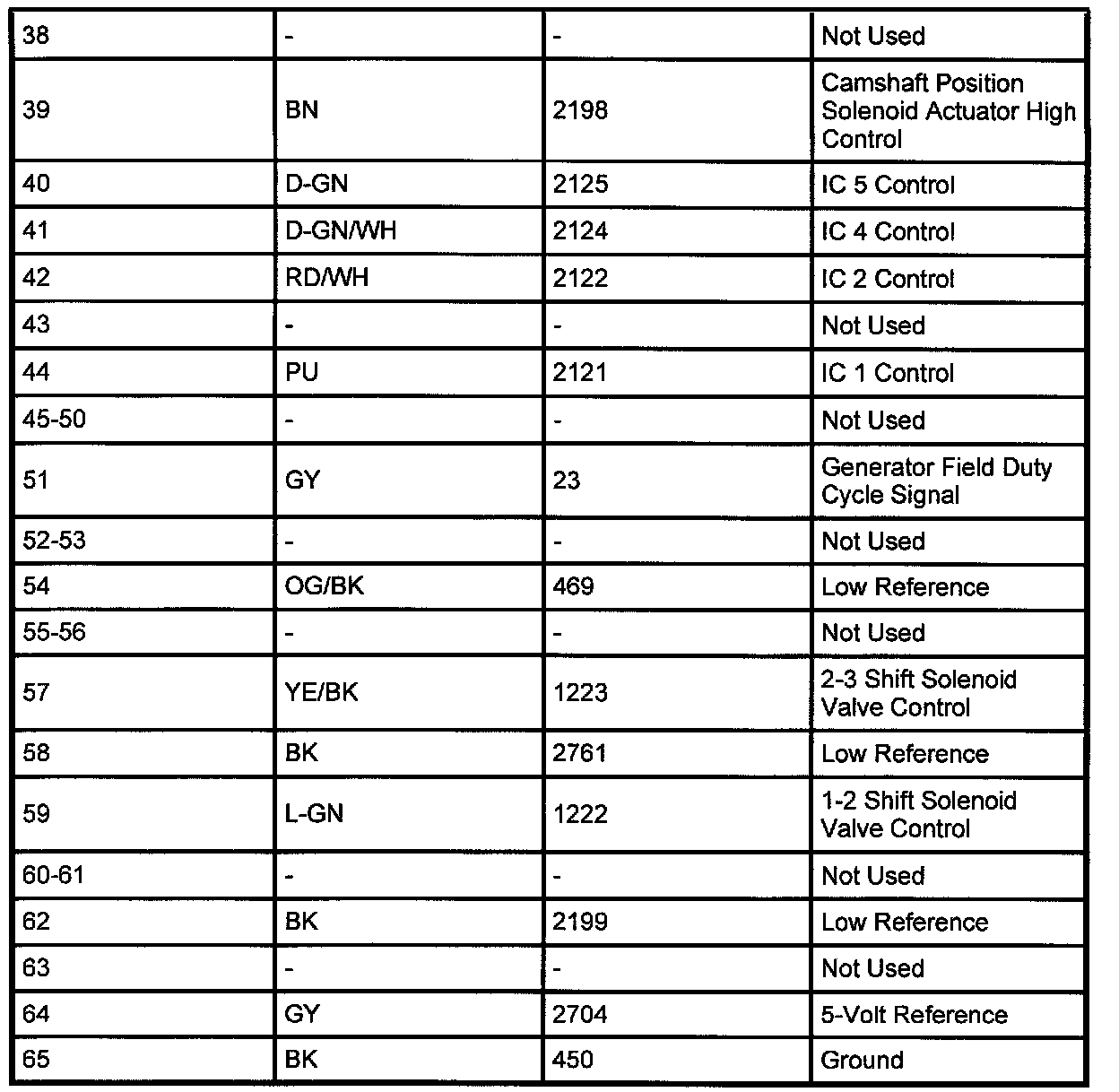

PCM C2 (Pin 38-65):

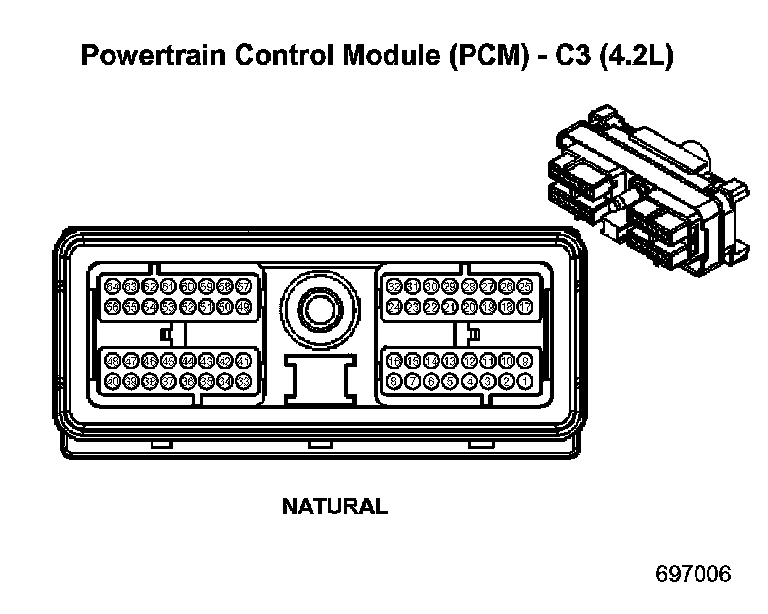

Powertrain Control Module (PCM) - C3:

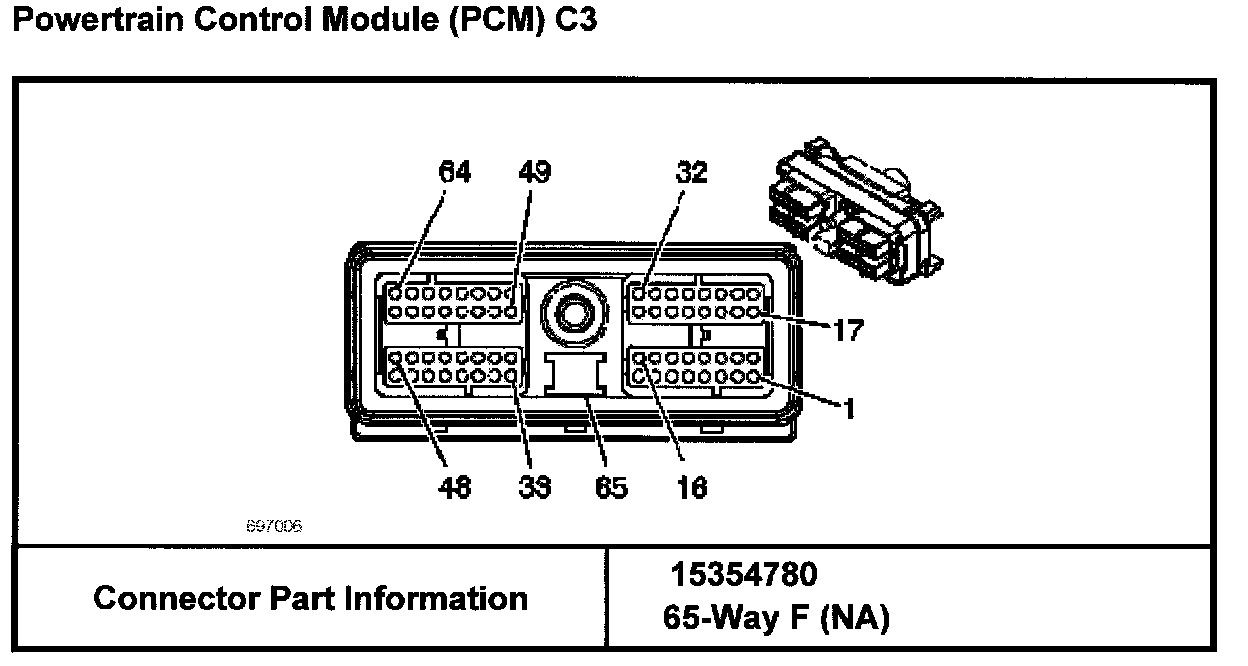

PCM C3 (with Connector Part Information):

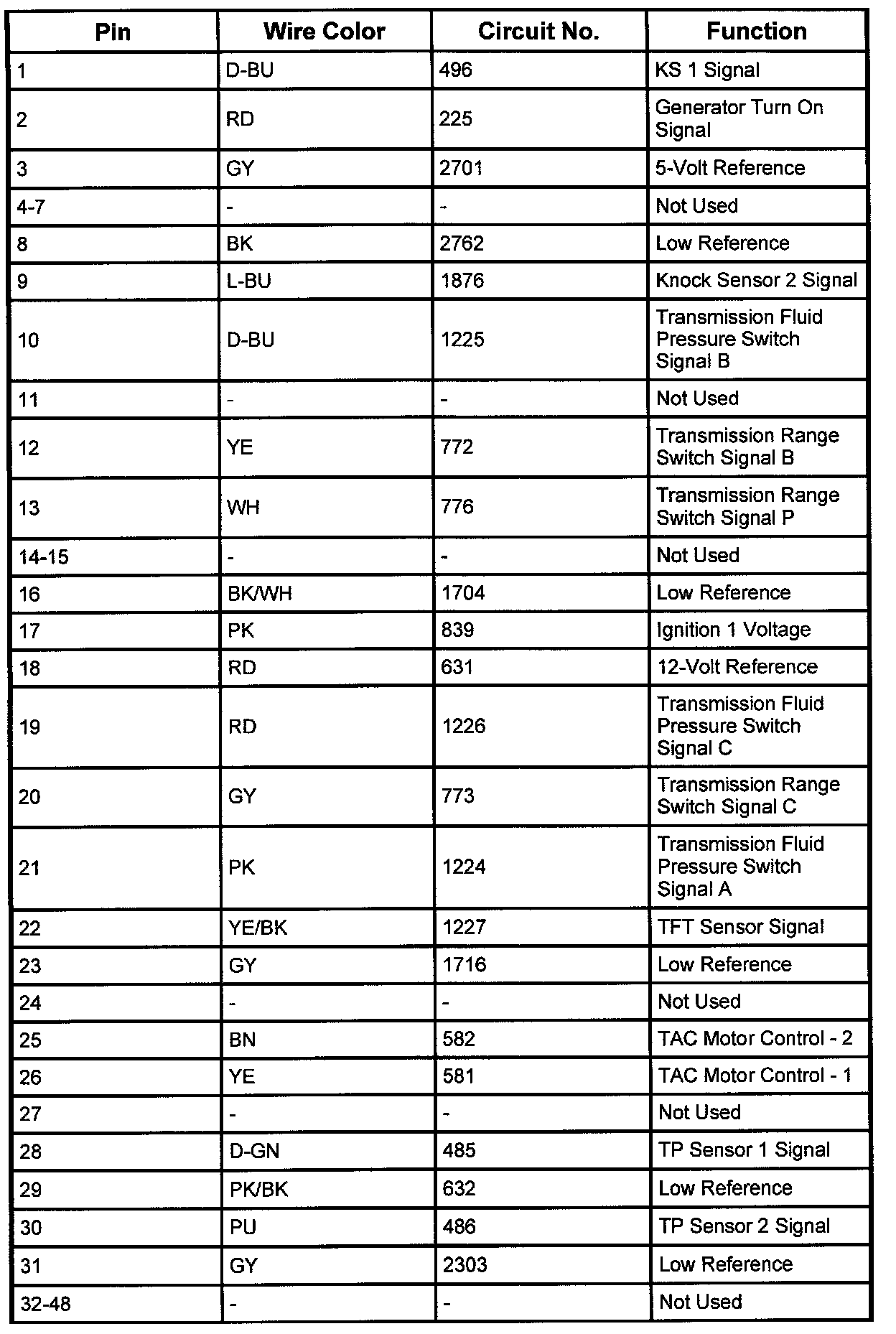

PCM C3 (Pin 1-48):

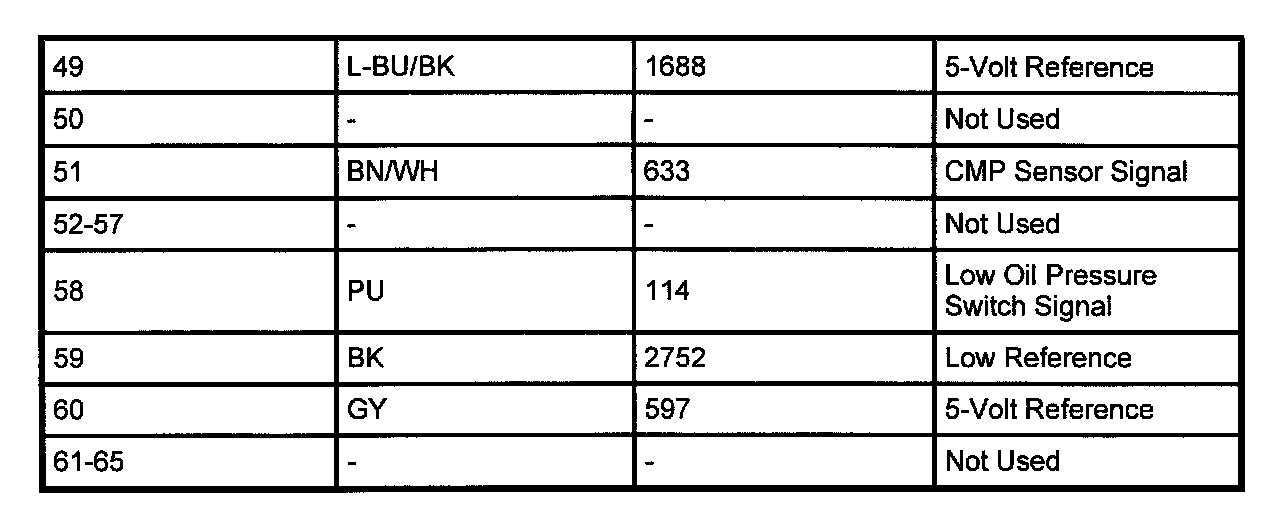

PCM C3 (Pin 49-65):
